2019 Kawasaki Mule SX™ Oil Pump/oil Filter Diagram

← All diagrams

Find the part on the Oil Pump/oil Filter diagram for your 2019 Kawasaki Mule SX™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

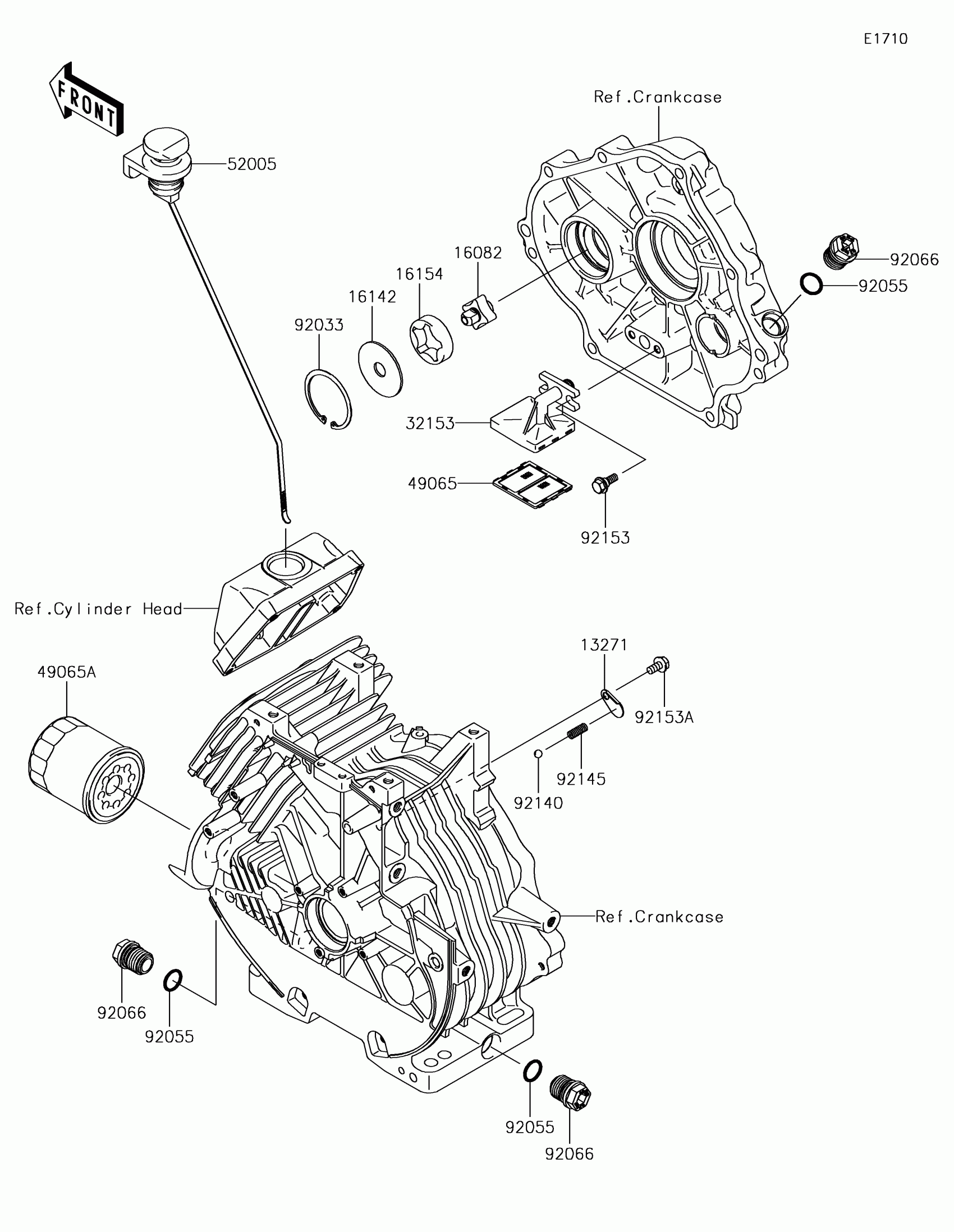

2019 Kawasaki Mule SX™ Oil Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13271

PLATE,OIL RELIEF

13271-7026

1
Out of stock

16082

PUMP-ASSY-OIL

16082-0760

1
Out of stock

16142

COVER-PUMP

16142-7001

1
Out of stock

16154

ROTOR-PUMP,OUT

16154-2054

1
Out of stock

32153

PIPE

32153-7002

1
Out of stock

49065

FILTER-OIL

49065-7005

1
Out of stock

49065A

FILTER-OIL

49065-7010

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-7020

1
Out of stock

92033

RING-SNAP

92033-7008

1
Out of stock

92055

RING-O,15.8X2.4

92055-0892

1
Out of stock

92066

PLUG

92066-0774

1
Out of stock

92140

BALL

92140-7001

1
Out of stock

92145

SPRING,OIL RELIEF

92145-1646

1
Out of stock

92153

BOLT,FLANGED,6X16

92153-7007

1
Out of stock

92153A

BOLT,6X12

92153-7043

1
Out of stock
