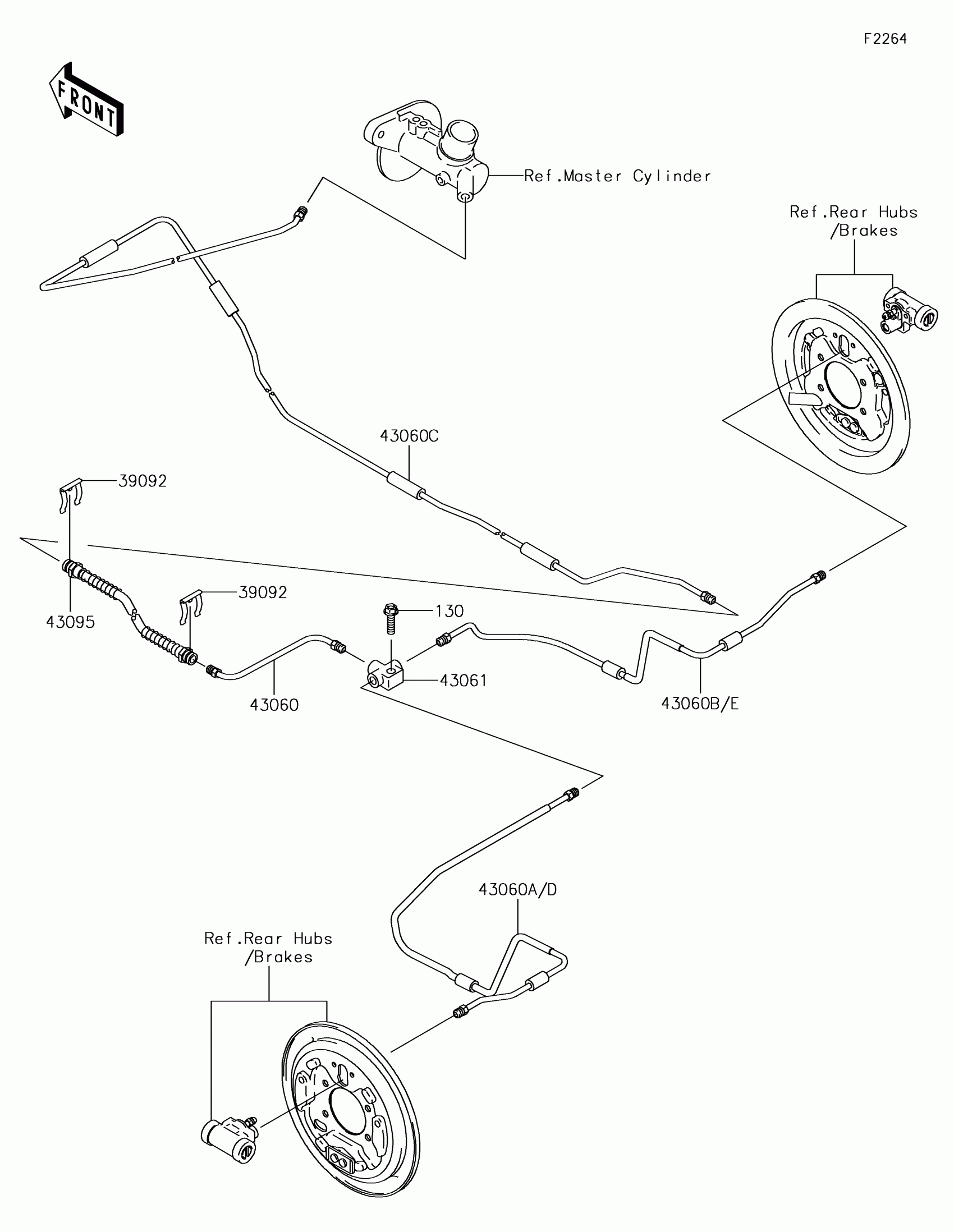

Find the part on the Rear Brake Piping diagram for your 2019 Kawasaki Mule SX™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Mule SX™ Rear Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39092

PIN-HAIR

39092-1052

1
Out of stock

43060

PIPE-BRAKE,RR,CNT

43060-0006

1
Out of stock

43060C

PIPE-BRAKE,M/CYLINDER

43060-0327

1
Out of stock

43060D

PIPE-BRAKE,RR,LH

43060-0337

1
Out of stock

43060E

PIPE-BRAKE,RR,RH

43060-0338

1
Out of stock

43061

JOINT-BRAKE

43061-1063

1
Out of stock

43095

HOSE-BRAKE

43095-0488

1
Out of stock

130

BOLT-FLANGED,8X30

130AA0830

1
Out of stock
