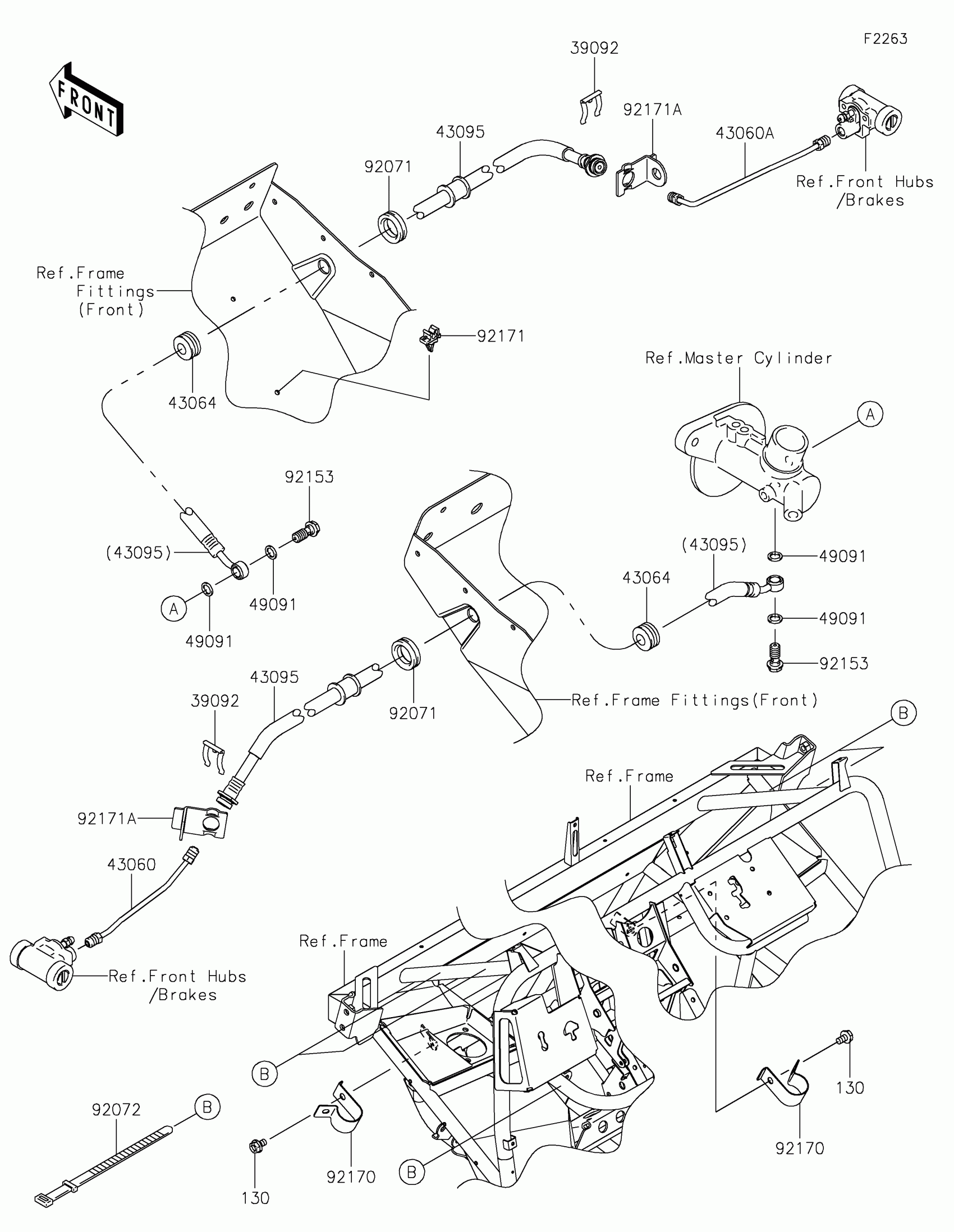

Kawasaki MULE SX™ Front Brake Piping Diagram

Description

Price

39092

PIN-HAIR

39092-1052

$6.07

43060B

PIPE-BRAKE,FR,LH

43060-0335

$25.24

43060C

PIPE-BRAKE,FR,RH

43060-0336

$25.24

43064

GROMMET,HOSE CLAMP

43064-007

$4.18

43095

HOSE-BRAKE,FR

43095-0055

$26.18

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92071

GROMMET

92071-3704

$5.37

92072

BAND,L=186

92072-056

$3.81

92153

BOLT,OIL,L=23

92153-1419

$2.98

92170

CLAMP,HOSE

92170-1173

$8.20

92171

CLAMP

92171-0339

$2.68

92171A

CLAMP

92171-1654

$12.37

130

BOLT-FLANGED,6X10

130AA0610

$0.48
