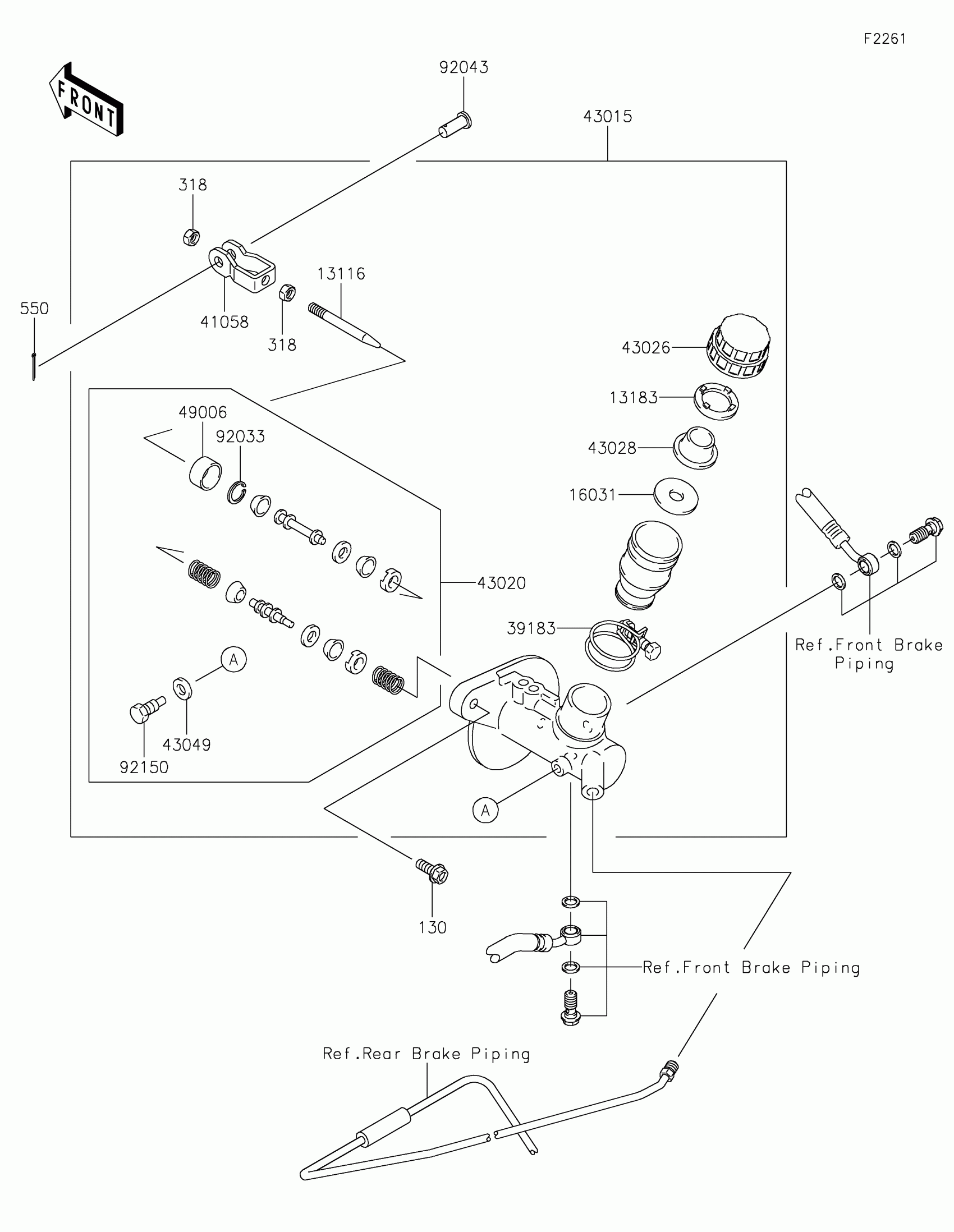

Kawasaki MULE SX™ Master Cylinder Diagram

Description

Price

13116

ROD-PUSH

13116-1134

$34.29

13183

PLATE

13183-1306

$3.92

16031

FLOAT

16031-1069

$7.47

39183

BAND-ASSY

39183-1055

$10.63

41058

RODEND-BRAKE

41058-1057

$16.37

43015

CYLINDER-ASSY-MASTER

43015-1683

$348.92

43020

PISTON-COMP-BRAKE

43020-1124

$68.97

43026

CAP-BRAKE

43026-1067

$21.77

43028

DIAPHRAGM

43028-1078

$12.05

43049

PACKING

43049-1065

$1.95

49006

BOOT

49006-1245

$7.47

92033

RING-SNAP

92033-1255

$3.14

92043

92043-1039

$7.54

92150

BOLT,STOP

92150-1165

$3.15

130

BOLT-FLANGED,8X20

130AA0820

$0.63

318

NUT-HEX-SMALL,8MM

318BA0800

$1.04

550

PIN-COTTER,2.5X18

550AA2518

$0.61
