2020 Kawasaki Mule SX™ 4x4 Fi Starter Motor Diagram

← All diagrams

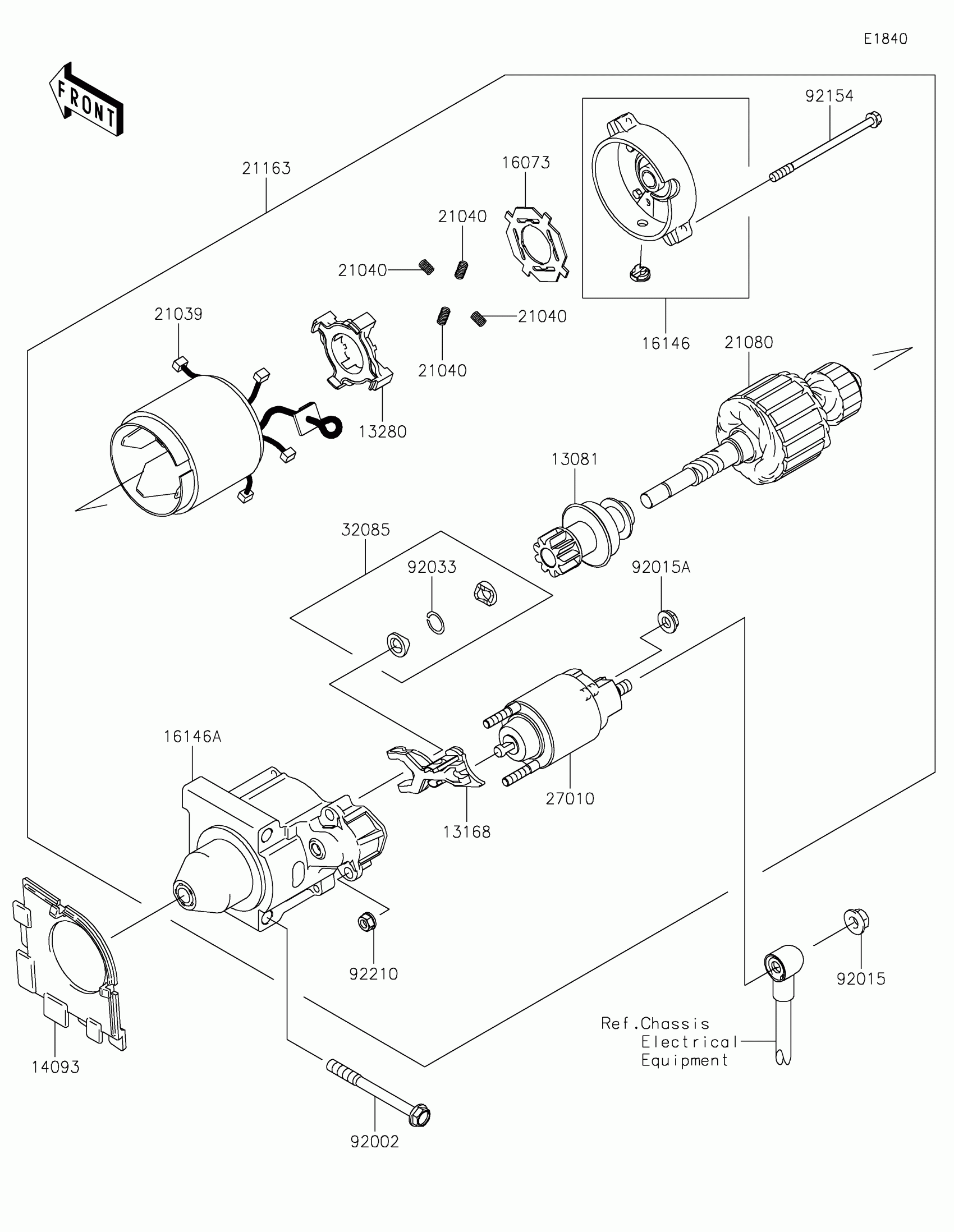

Find the part on the Starter Motor diagram for your 2020 Kawasaki Mule SX™ 4x4 Fi, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Mule SX™ 4x4 Fi Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-2118

1
Out of stock

13081

CLUTCH-ASSY

13081-2227

1
Out of stock

13091

HOLDER,BRUSH

13091-2068

1
Out of stock

13168

LEVER,SHIFT

13168-2148

1
Out of stock

14093

COVER

14093-0932

1
Out of stock

16073

INSULATOR

16073-2098

1
Out of stock

16146

COVER-ASSY,END

16146-7016

1
Out of stock

16146A

COVER-ASSY

16146-7025

1
Out of stock

21039

BRUSH

21039-2059

1
Out of stock

21040

SPRING-BRUSH

21040-2052

1
Out of stock

21080

ARMATURE

21080-2058

1
Out of stock

21163

STARTER-ELECTRIC

21163-7028

1
Out of stock

27010

SWITCH

27010-7005

1
Out of stock

32085

STOPPER

32085-2097

1
Out of stock

92002

BOLT,8X83

92002-1794

1
Out of stock

92002A

BOLT

92002-2277

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1406

1
Out of stock

92015A

NUT

92015-2146

1
Out of stock

92015B

NUT

92015-2147

1
Out of stock

92033

RING-SNAP

92033-2081

1
Out of stock
