2020 Kawasaki Mule SX™ 4x4 FI Reflectors Diagram

← All diagrams

Find the part on the Reflectors diagram for your 2020 Kawasaki Mule SX™ 4x4 FI, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

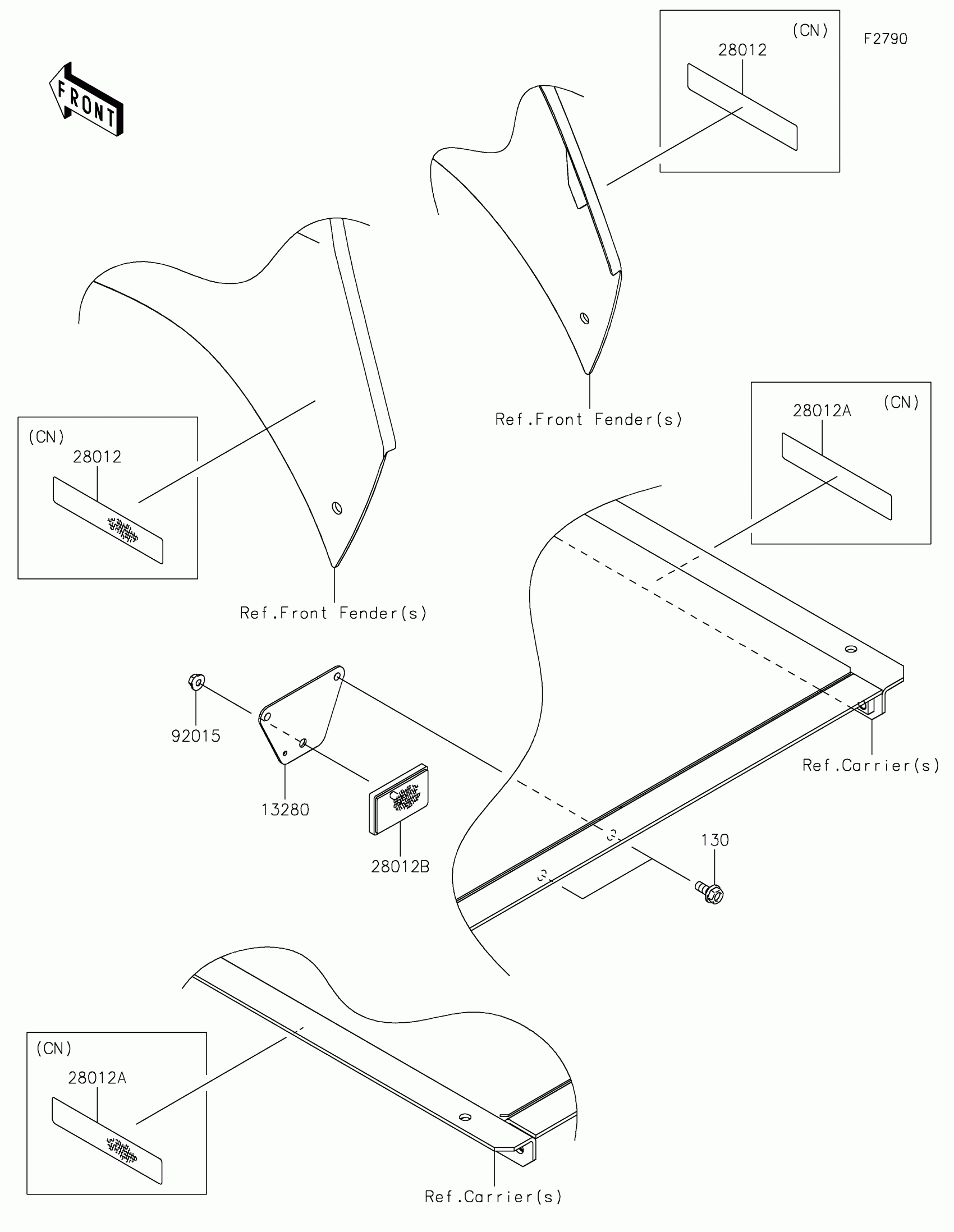

2020 Kawasaki Mule SX™ 4x4 FI Reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13280

HOLDER,REFLECTOR

13280-0937

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1088

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock
