2019 Kawasaki Mule PRO-MX™ Cylinder/piston Diagram

← All diagrams

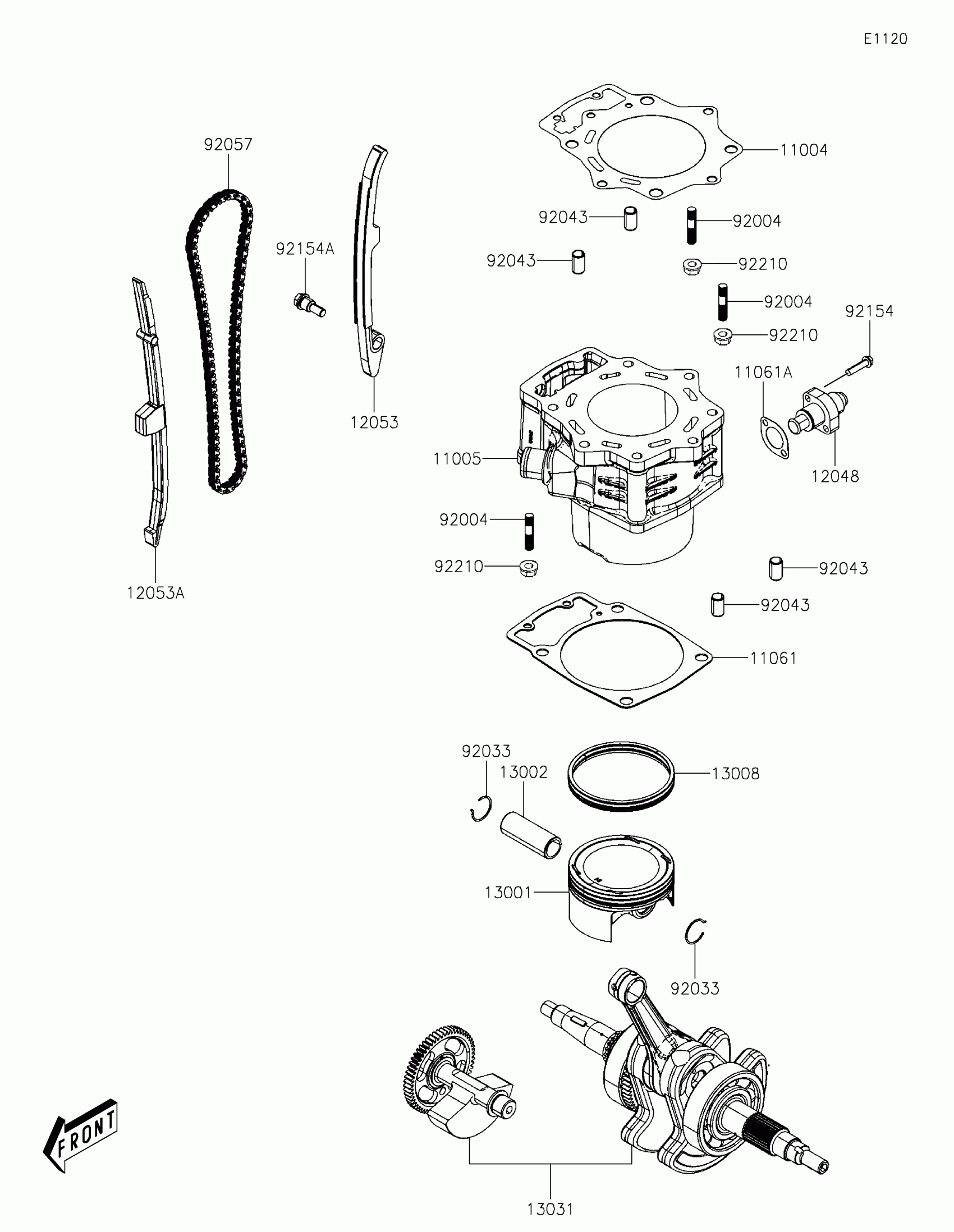

Find the part on the Cylinder/piston diagram for your 2019 Kawasaki Mule PRO-MX™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Mule PRO-MX™ Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-Y006

1
Out of stock

11005

CYLINDER-ENGINE

11005-Y006

1
Out of stock

11061

GASKET,CYLINDER BASE

11061-Y062

1
Out of stock

11061A

GASKET,TENSIONER

11061-Y063

1
Out of stock

12048

TENSIONER-ASSY

12048-Y007

1
Out of stock

12053

GUIDE-CHAIN,TENSIONER

12053-Y011

1
Out of stock

12053A

GUIDE-CHAIN,CAM CHAIN

12053-Y012

1
Out of stock

13001

PISTON-ENGINE

13001-Y006

1
Out of stock

13002

PIN-PISTON

13002-Y006

1
Out of stock

13008

RING-SET-PISTON

13008-Y006

1
Out of stock

13031

CRANKSHAFT-COMP

13031-Y006

1
Out of stock

92004

STUD,8X40

92004-Y019

1
Out of stock

92033

RING-SNAP

92033-Y044

1
Out of stock

92043

PIN,12X20

92043-Y027

1
Out of stock

92057

CHAIN,CAM

92057-Y011

1
Out of stock

92154

BOLT,FLANGE,6X25

92154-Y066

1
Out of stock

92154A

BOLT,CAM CHAIN TENSIONER

92154-Y164

1
Out of stock

92210

NUT,8MM

92210-Y028

1
Out of stock
