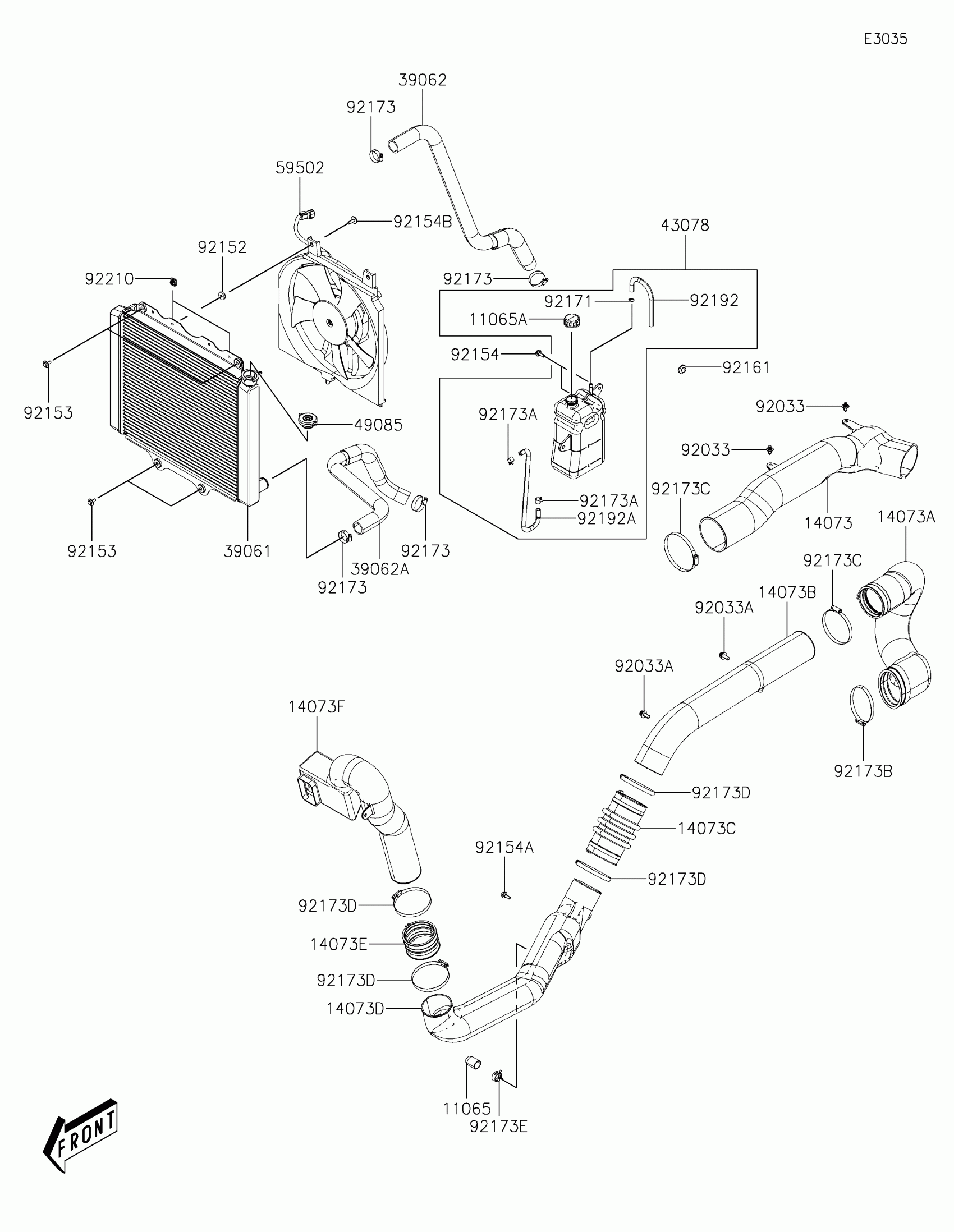

Kawasaki MULE PRO-MX™ Cooling Diagram

#

Description
Price

11065

CAP,DRAIN

11065-Y036

$1.15

11065A

CAP,RESERVE TANK

11065-Y037

$4.24

14073

DUCT

14073-Y011

$66.12

14073A

DUCT,INTAKE

14073-Y012

$107.98

14073B

DUCT,INTAKE

14073-Y013

$64.70

14073C

DUCT,INTAKE

14073-Y014

$45.26

14073D

DUCT,INTAKE

14073-Y015

$81.82

14073E

DUCT,INTAKE

14073-Y016

$18.17

14073F

DUCT,INTAKE

14073-Y017

$66.55

39061

RADIATOR-ASSY

39061-Y004

$295.40

39062

HOSE-COOLING

39062-Y016

$84.57

39062A

HOSE-COOLING

39062-Y017

$78.15

43078

RESERVOIR

43078-Y004

$82.74

49085

CAP-ASSY-PRESSURE

49085-Y005

$18.73

59502

FAN-ASSY

59502-Y003

$248.08

92033

RING-SNAP

92033-Y033

$1.97

92033A

RING-SNAP

92033-Y035

$4.97

92152

COLLAR

92152-Y072

$8.39

92153

BOLT,6X20

92153-Y019

$1.00

92154

BOLT,6X18

92154-Y177

$4.28

92154A

BOLT,FLANGE,6MM

92154-Y180

$4.64

92154B

BOLT,6X22

92154-Y191

$4.97

92161

DAMPER

92161-Y048

$6.14

92171

CLAMP

92171-Y011

$0.68

92173

CLAMP,28.6MM

92173-1205

$4.34

92173A

CLAMP,10.5

92173-Y023

$3.27

92173B

CLAMP

92173-Y062

$14.80

92173C

CLAMP

92173-Y064

$12.83

92173D

CLAMP

92173-Y066

$13.22

92173E

CLAMP

92173-Y082

$8.39

92192

TUBE,DRAIN

92192-Y069

$10.68

92192A

TUBE

92192-Y070

$60.26

92210

NUT,6MM

92210-Y089

$4.97
