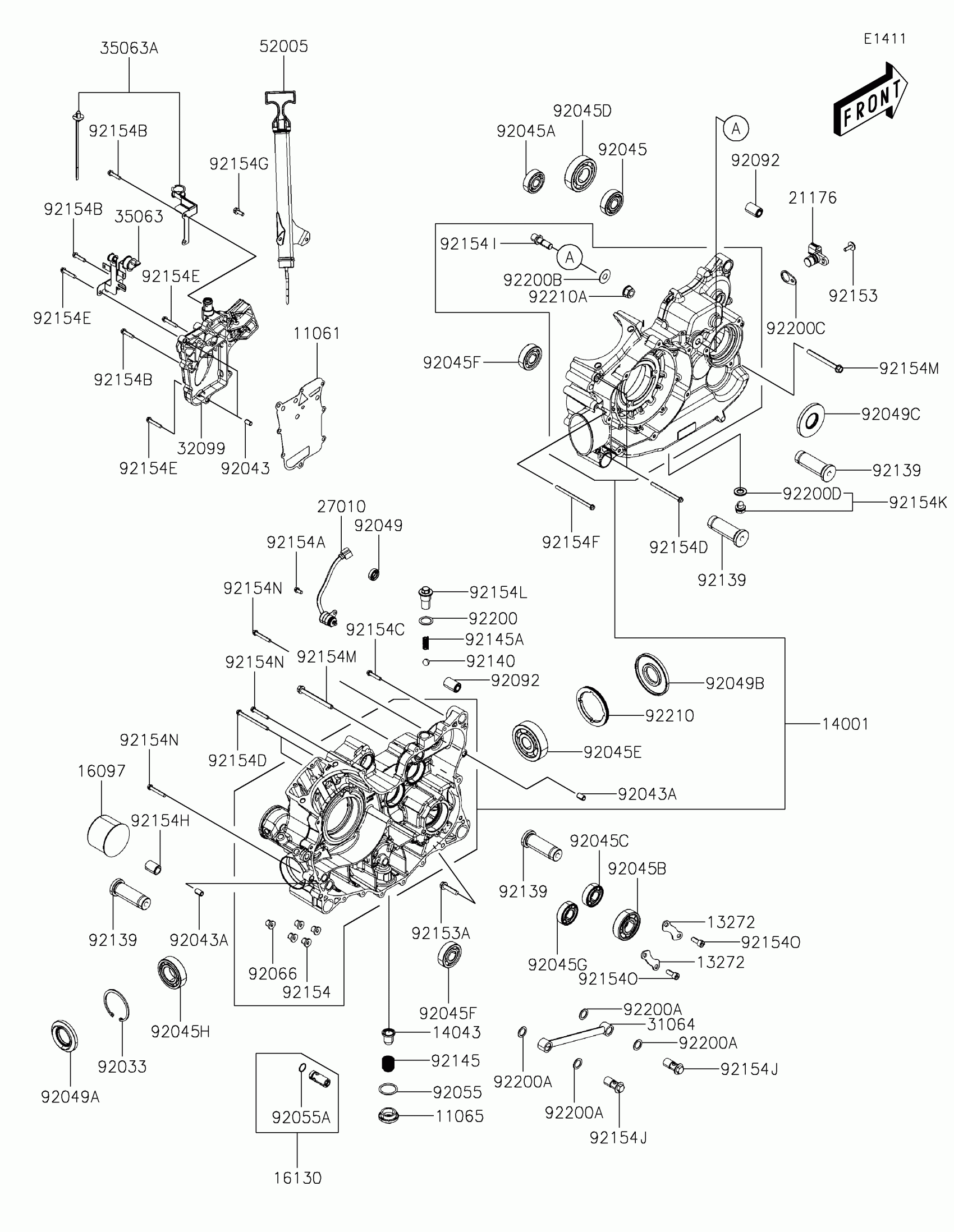

Kawasaki MULE PRO-MX™ Crankcase Diagram

#

Description
Price

11061

GASKET,CASE,RH

11061-Y061

Unavailable

11065

CAP

11065-Y006

$6.85

13272

PLATE

13272-Y035

$4.97

14001

SET-CRANKCASE

14001-Y004

$1,217.09

14043

FILTER,OIL

14043-Y001

$3.48

16097

FILTER-ASSY-OIL

16097-0007

$11.75

16130

VALVE-ASSY-RELIEF

16130-Y001

$42.48

21176

SENSOR,SPEED

21176-Y010

$76.23

27010

SWITCH,GEAR CHANGE

27010-Y019

$48.23

31064

PIPE-COMP,OIL

31064-Y008

$35.83

32099

CASE,RH

32099-Y007

$70.87

35063

STAY,START MOTOR CABLE

35063-Y035

$59.62

35063A

STAY,HARNESS

35063-Y037

$30.20

52005

GAUGE,OIL LEVEL ASSY

52005-Y005

$160.58

92033

RING-SNAP

92033-Y038

$8.76

92043

PIN,8X14

92043-Y012

$1.36

92043A

PIN,10X16

92043-Y024

$3.73

92045

BEARING-BALL,6304

92045-Y016

$24.88

92045A

BEARING-BALL,6303

92045-Y023

$20.63

92045B

BEARING-BALL,6305

92045-Y040

$62.17

92045C

BEARING-BALL,6204

92045-Y041

$23.97

92045D

BEARING-BALL,6306

92045-Y042

$30.23

92045E

BEARING-BALL,6405

92045-Y043

$82.36

92045F

BEARING-BALL,6304

92045-Y045

$42.01

92045G

BEARING-BALL

92045-Y048

$17.51

92045H

BEARING-BALL

92045-Y049

$76.23

92049

SEAL-OIL,14X24X7

92049-Y044

$2.98

92049A

SEAL-OIL,35X67X7

92049-Y045

$19.61

92049B

SEAL-OIL,35X90X7

92049-Y046

$29.37

92049C

SEAL-OIL,30X72X7

92049-Y048

$21.20

92055

RING-O,30.8MM

92055-Y005

$1.00

92055A

RING-O,15.5X1.5

92055-Y038

$0.85

92066

PLUG

92066-Y019

$1.97

92092

BUSHING-RUBBER

92092-Y003

$21.63

92139

BUSHING,ENGINE HANGER

92139-Y012

$50.13

92140

BALL,STEEL 16

92140-Y002

$2.58

92145

SPRING

92145-Y005

$1.41

92145A

SPRING,STOPPER

92145-Y068

$3.02

92153

BOLT,6X20

92153-Y019

$1.00

92153A

BOLT,FLANGE,8X35

92153-Y034

$1.88

92154

BOLT,SEALING,12MM

92154-Y009

$5.19

92154A

BOLT,FLANGE,6X12

92154-Y035

$1.32

92154B

BOLT,FLANGE,6X25

92154-Y066

$1.71

92154C

BOLT,FLANGE,6X30

92154-Y107

$0.63

92154D

BOLT,FLANGE,6X80

92154-Y109

$4.44

92154E

BOLT,FLANGE,6X32

92154-Y128

$1.84

92154F

BOLT,FLANGE,6X100

92154-Y144

$3.93

92154G

BOLT,FLANGE,6X18

92154-Y154

$1.84

92154H

BOLT,OIL FILTER

92154-Y165

$16.31

92154I

BOLT

92154-Y167

$20.25

92154J

BOLT,OIL PASS

92154-Y174

$12.49

92154K

BOLT,DRAIN

92154-Y187

$8.42

92154L

BOLT

92154-Y188

$11.86

92154M

BOLT,FLANGE,8X85

92154-Y196

$5.64

92154N

BOLT,FLANGE,6X40

92154-Y209

$5.98

92154O

BOLT,SOCKET,8X20

92154-Y210

$2.98

92200

WASHER

92200-Y071

$2.98

92200A

WASHER

92200-Y074

$2.98

92200B

WASHER,THRUST,12X30X1

92200-Y075

$3.25

92200C

WASHER,SPEED SENSOR

92200-Y086

$2.98

92200D

WASHER

92200-Y099

$1.96

92210

NUT,LOCK,85MM

92210-Y086

$57.14

92210A

NUT,FLANGE,12MM

92210-Y091

$8.39
