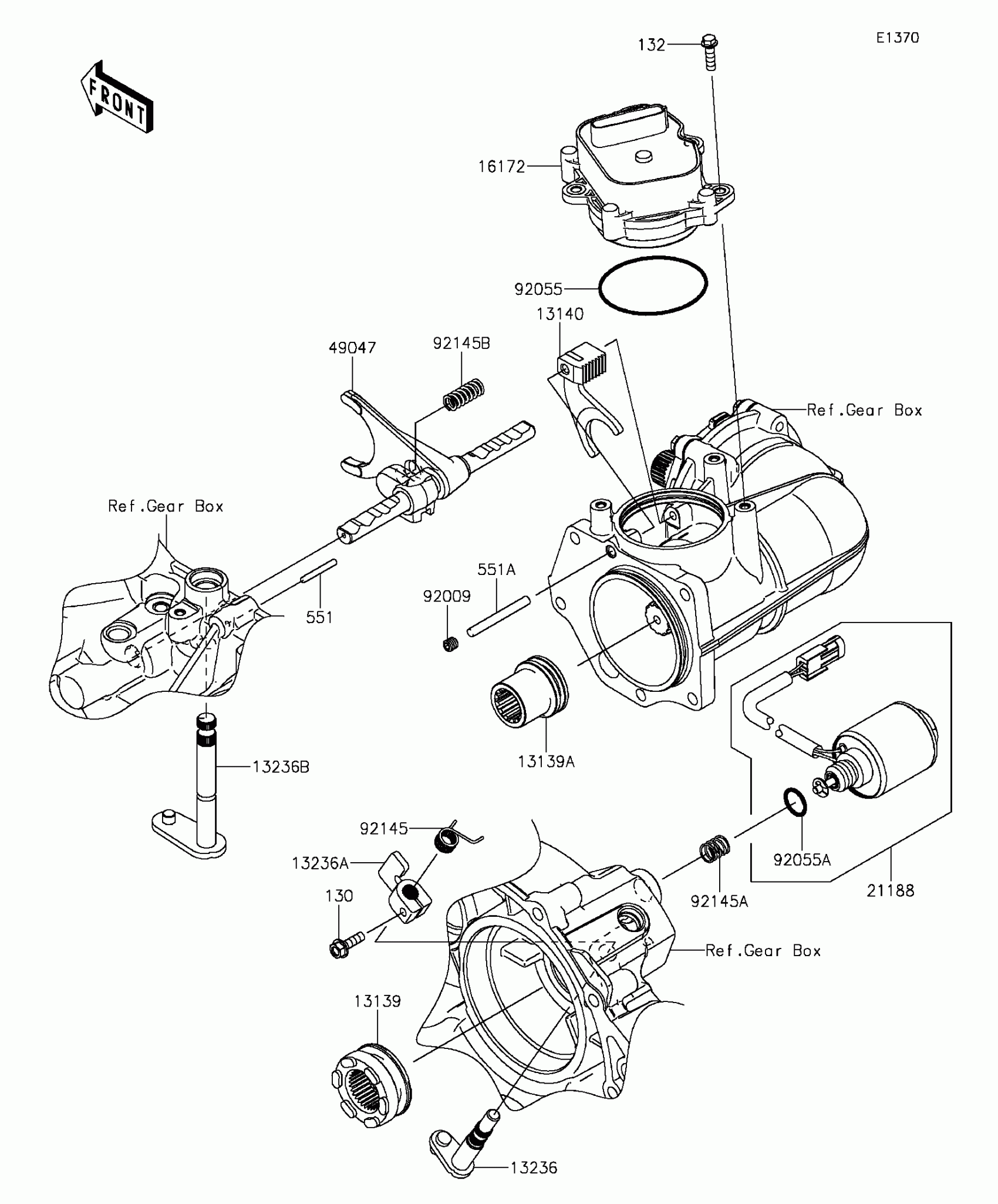

Kawasaki MULE PRO-FXT™ Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130BA0620

$1.28

13139

SHIFTER

13139-0019

$69.92

13139A

SHIFTER

13139-0021

$90.69

13140

FORK-SHIFT

13140-0639

$69.26

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

13236

LEVER-COMP,DIFF LOCK

13236-0744

$25.88

13236A

LEVER-COMP,DIFF LOCK

13236-0745

$24.32

13236B

LEVER-COMP,CHANGE SHIFT

13236-0746

$46.76

16172

ACTUATOR

16172-0030

$652.25

21188

SOLENOID

21188-0010

$112.75

49047

ROD-SHIFT

49047-0044

$310.49

551

PIN-DOWEL

551A0432

$4.17

551A

PIN-DOWEL,6X56

551A0656

$7.47

92009

SCREW,SOCKET,8X8

92009-1977

$1.05

92055

RING-O,1.9X71.8

92055-0781

$2.30

92055A

RING-O

92055-0829

$3.24

92145

SPRING

92145-1572

$2.61

92145A

SPRING

92145-1573

$3.29

92145B

SPRING

92145-1574

$5.39
