2016 Kawasaki Mule PRO-FXT™ Drive Shaft-Front Diagram

← All diagrams

Find the part on the Drive Shaft-Front diagram for your 2016 Kawasaki Mule PRO-FXT™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

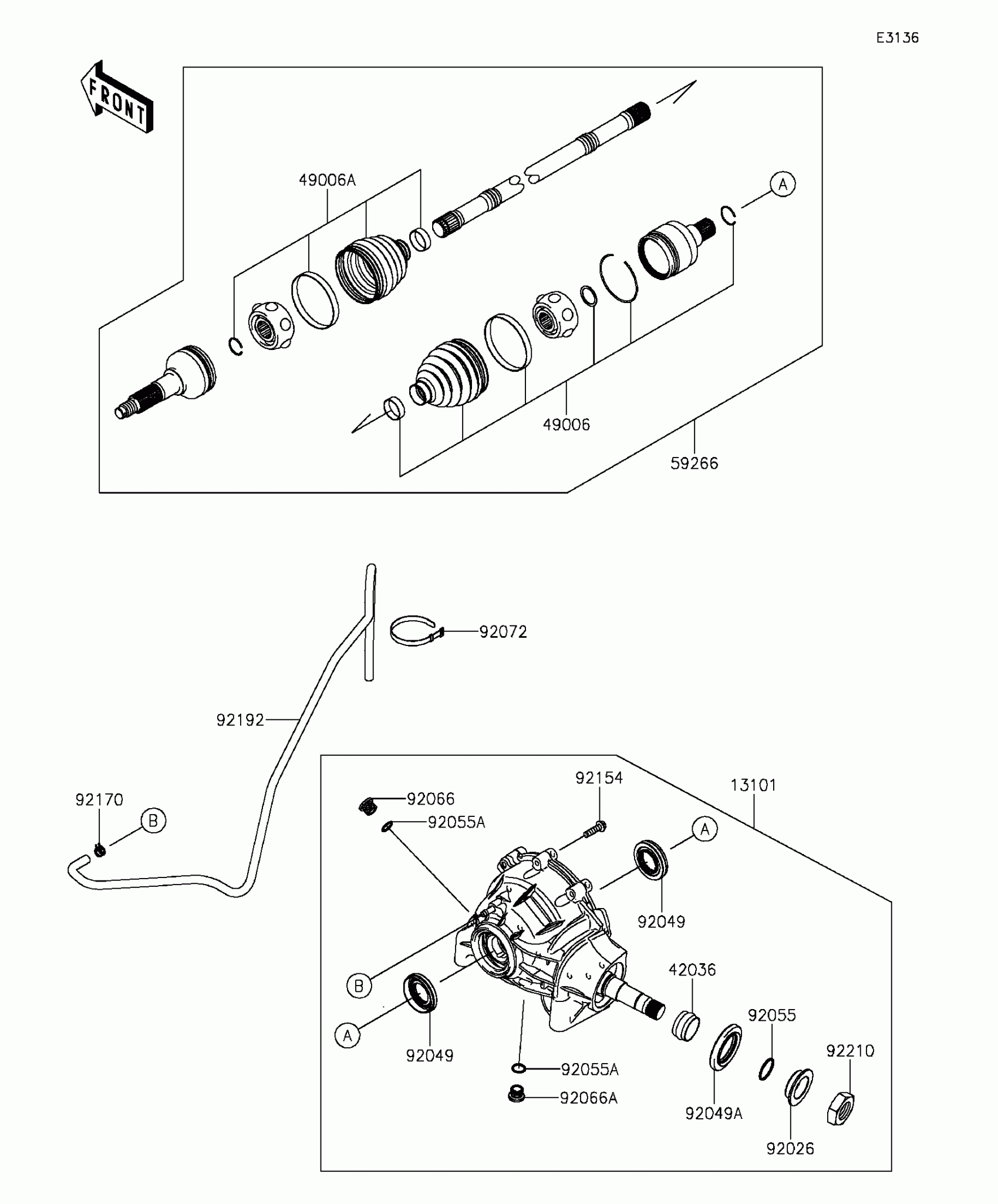

2016 Kawasaki Mule PRO-FXT™ Drive Shaft-Front Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13101

GEAR-ASSY,FRONT DIFFERENTIAL

13101-0662

1
Out of stock

42036

SLEEVE

42036-0741

1
Out of stock

49006

BOOT,INSIDE

49006-0578

1
Out of stock

49006A

BOOT,OUTSIDE

49006-0584

1
Out of stock

59266

JOINT-BALL,FR

59266-0710

1
Out of stock

92026

SPACER

92026-0776

1
Out of stock

92049

SEAL-OIL,33X60X7

92049-0760

1
Out of stock

92049A

SEAL-OIL,44X72X7

92049-0766

1
Out of stock

92055

RING-O

92055-0788

1
Out of stock

92055A

RING-O,15.3X2.2

92055-0830

1
Out of stock

92066

PLUG

92066-0777

1
Out of stock

92066A

PLUG

92066-0778

1
Out of stock

92072

BAND,L=186

92072-056

1
Out of stock

92154

BOLT,FLANGED,8X30

92154-1370

1
Out of stock

92170

CLAMP

92170-2082

1

$0.83

In stock

92192

TUBE,BREATHER

92192-1341

1
Out of stock

92210

NUT

92210-0894

1
Out of stock
