2016 Kawasaki Mule PRO-FXT™ Drive Shaft-Propeller Diagram

← All diagrams

Find the part on the Drive Shaft-Propeller diagram for your 2016 Kawasaki Mule PRO-FXT™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

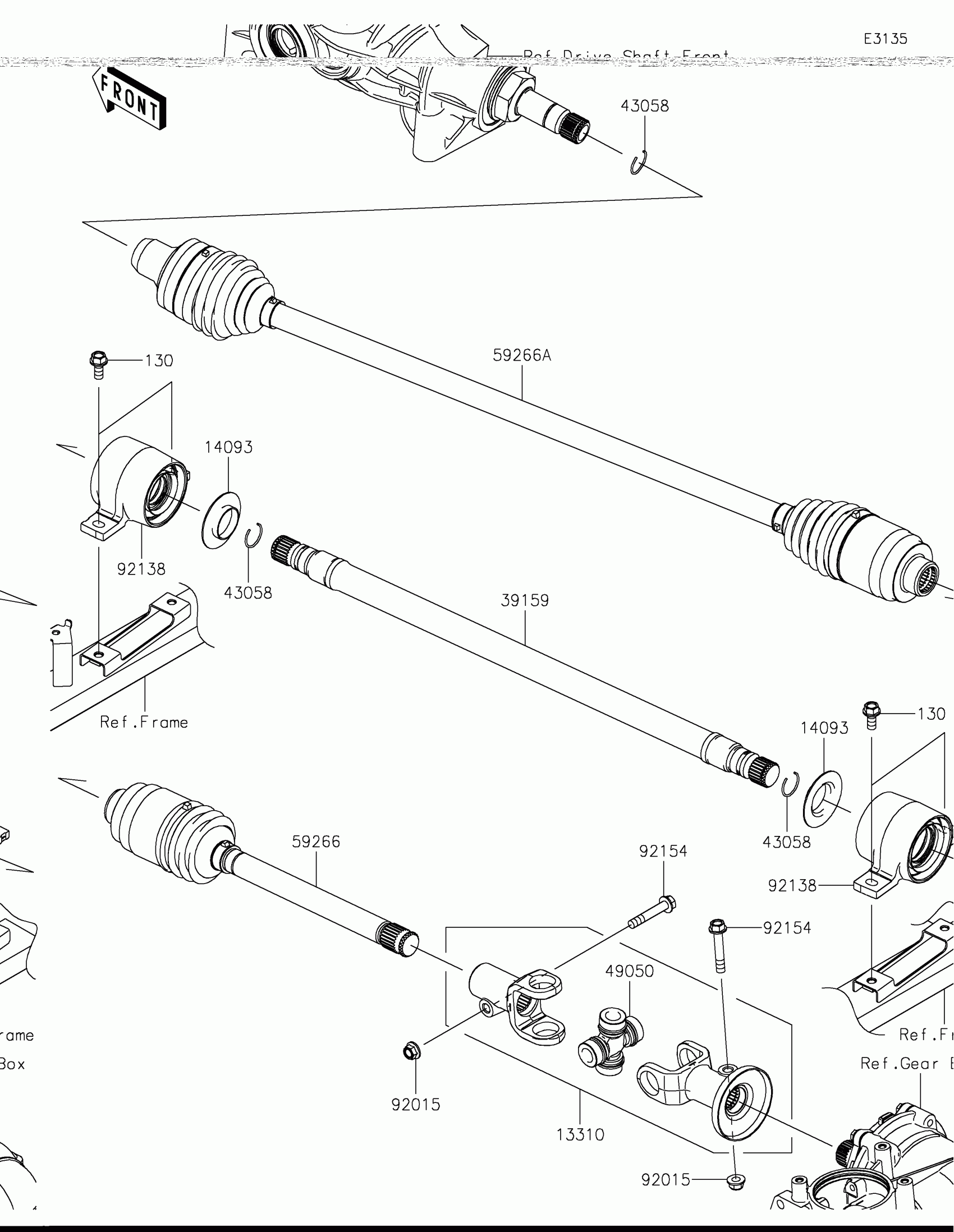

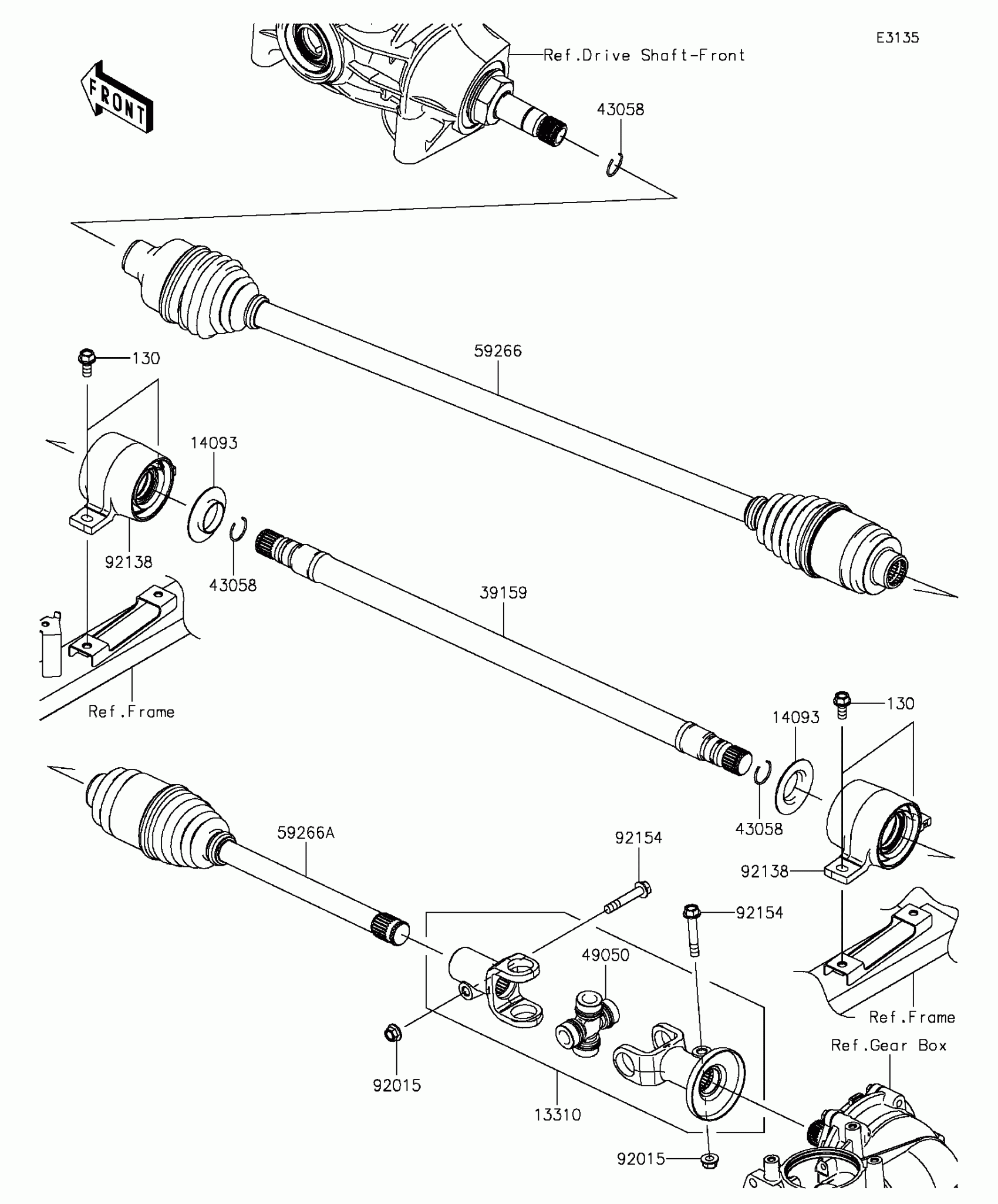

2016 Kawasaki Mule PRO-FXT™ Drive Shaft-Propeller Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X18

130BA0818

1

$2.10

In stock

13310

SHAFT-ASSY

13310-0038

1
Out of stock

14093

COVER,SIDE RIP

14093-0006

1

$3.15

In stock

39159

SHAFT-DRIVE

39159-0045

1

$218.03

In stock

43058

RING

43058-0018

1

$2.12

In stock

49050

SPIDER

49050-0034

1

$107.46

In stock

59266

1

$809.86

In stock

59266A

JOINT-BALL,T/M SIDE

59266-0714

1

$411.09

In stock

92015

NUT,8MM

92015-1432

1

$5.21

In stock

92138

BEARING-COMP

92138-0002

1

$44.23

In stock

92154

BOLT,FLANGED,8X46

92154-1365

1

$2.05

In stock
