2026 Kawasaki Mule Pro-FXR™ 1000 Le Sun Top Diagram

← All diagrams

Find the part on the Sun Top diagram for your 2026 Kawasaki Mule Pro-FXR™ 1000 Le, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

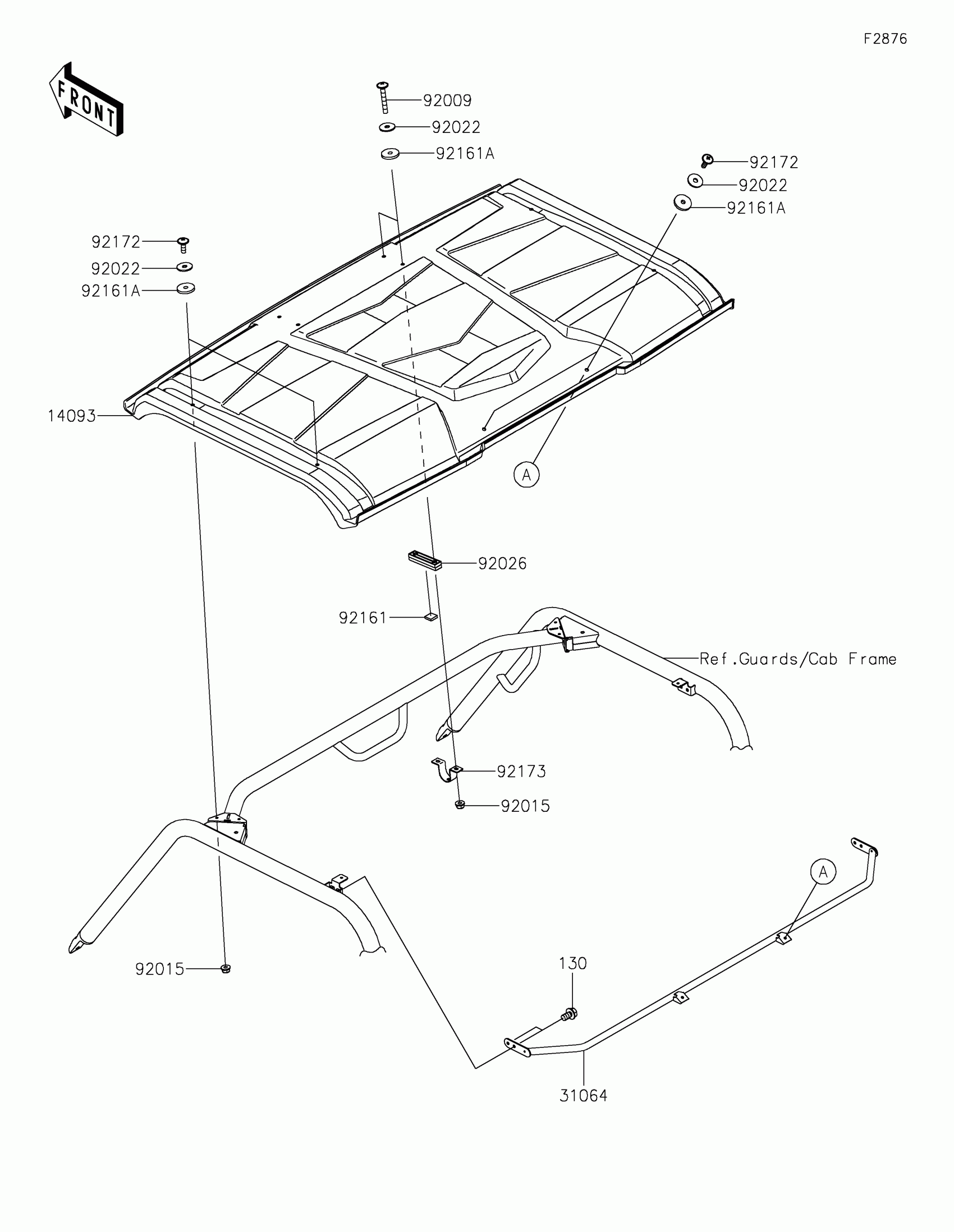

2026 Kawasaki Mule Pro-FXR™ 1000 Le Sun Top Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,SUNTOP

14093-0588

1
Out of stock

31064

PIPE-COMP

31064-0690

1
Out of stock

92009

SCREW,6X40

92009-1898

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1603

1
Out of stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92026

SPACER,BLOCK

92026-0763

1
Out of stock

92161

DAMPER,25.4X25.4X6.3

92161-1405

1
Out of stock

92161A

DAMPER,6X25X3.15

92161-1633

1
Out of stock

92172

SCREW,6X18

92172-0002

1
Out of stock

92173

CLAMP,U

92173-1224

1
Out of stock

130

BOLT-FLANGED,8X14

130CA0814

1
Out of stock
