2026 Kawasaki Mule Pro-FXR™ 1000 Le Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2026 Kawasaki Mule Pro-FXR™ 1000 Le, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

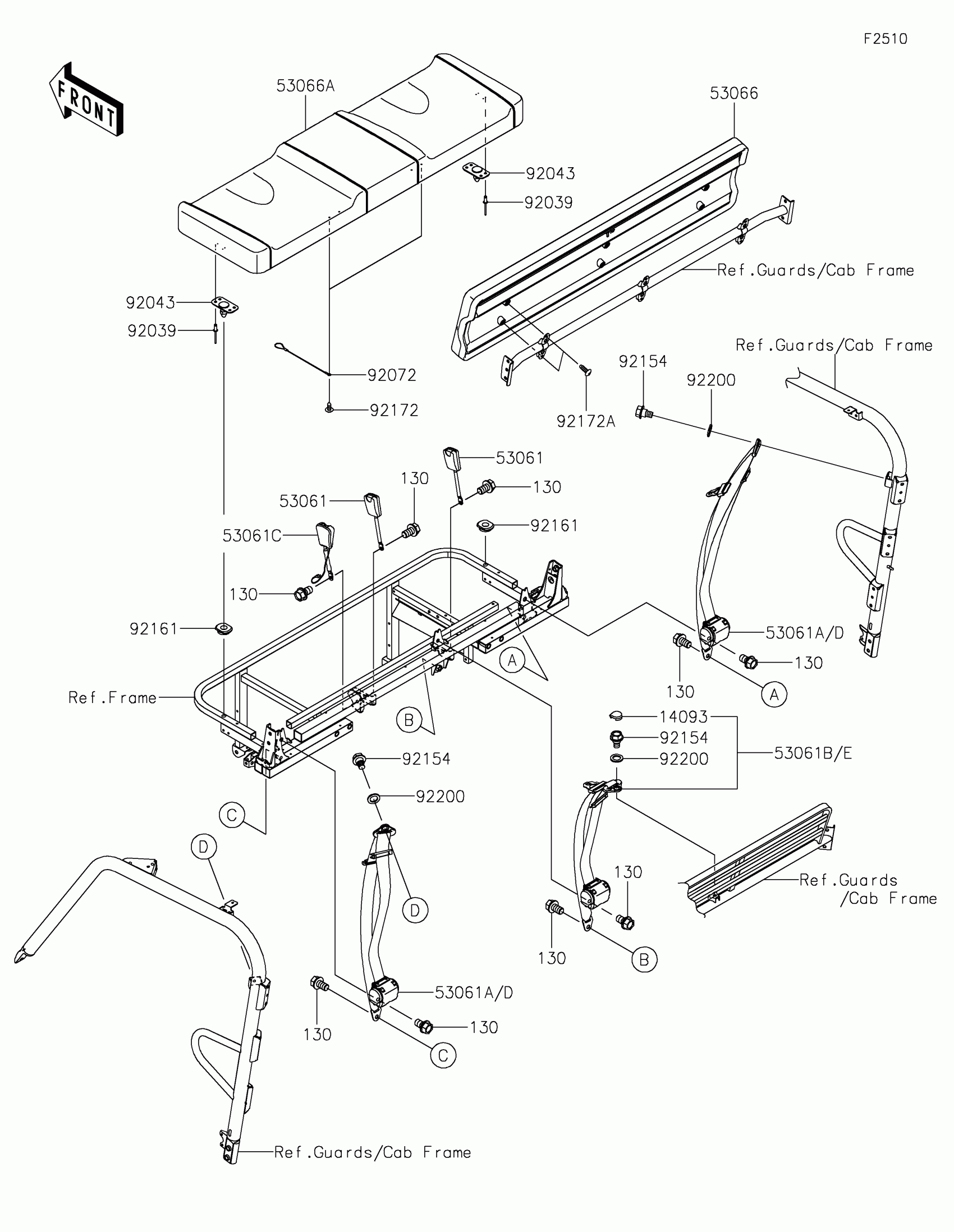

2026 Kawasaki Mule Pro-FXR™ 1000 Le Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,D-RING

14093-1037

1

$3.80

In stock

53061

BELT-SEAT,BUCKLE

53061-0039

1

$28.65

In stock

53061C

1

$50.22

In stock

53061D

BELT-SEAT,FR,LH&RH

53061-0408

1
Out of stock

53061E

BELT-SEAT,MIDDLE

53061-0409

1
Out of stock

53066

1

$380.93

In stock

53066A

SEAT-ASSY,A.SILVER+BLK

53066-0747-61P

1

$697.22

In stock

92039

RIVET

92039-0747

1

$2.05

In stock

92043

PIN

92043-0859

1

$1.61

In stock

92072

BAND

92072-0769

1

$3.41

In stock

92154

1

$5.66

In stock

92161

DAMPER,10.5X30X8.2

92161-1784

1

$0.86

In stock

92172

SCREW,6X16

92172-0284

1

$0.94

In stock

92172A

SCREW,TAPPING,6X20

92172-0488

1

$2.44

In stock

92200

WASHER,16X22X2

92200-1798

1
Out of stock

130

BOLT-FLANGED,12X20

130BA1220

1

$2.97

In stock
