2026 Kawasaki Mule PRO-FXR™ 1000 LE Front BOX Diagram

← All diagrams

Find the part on the Front BOX diagram for your 2026 Kawasaki Mule PRO-FXR™ 1000 LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

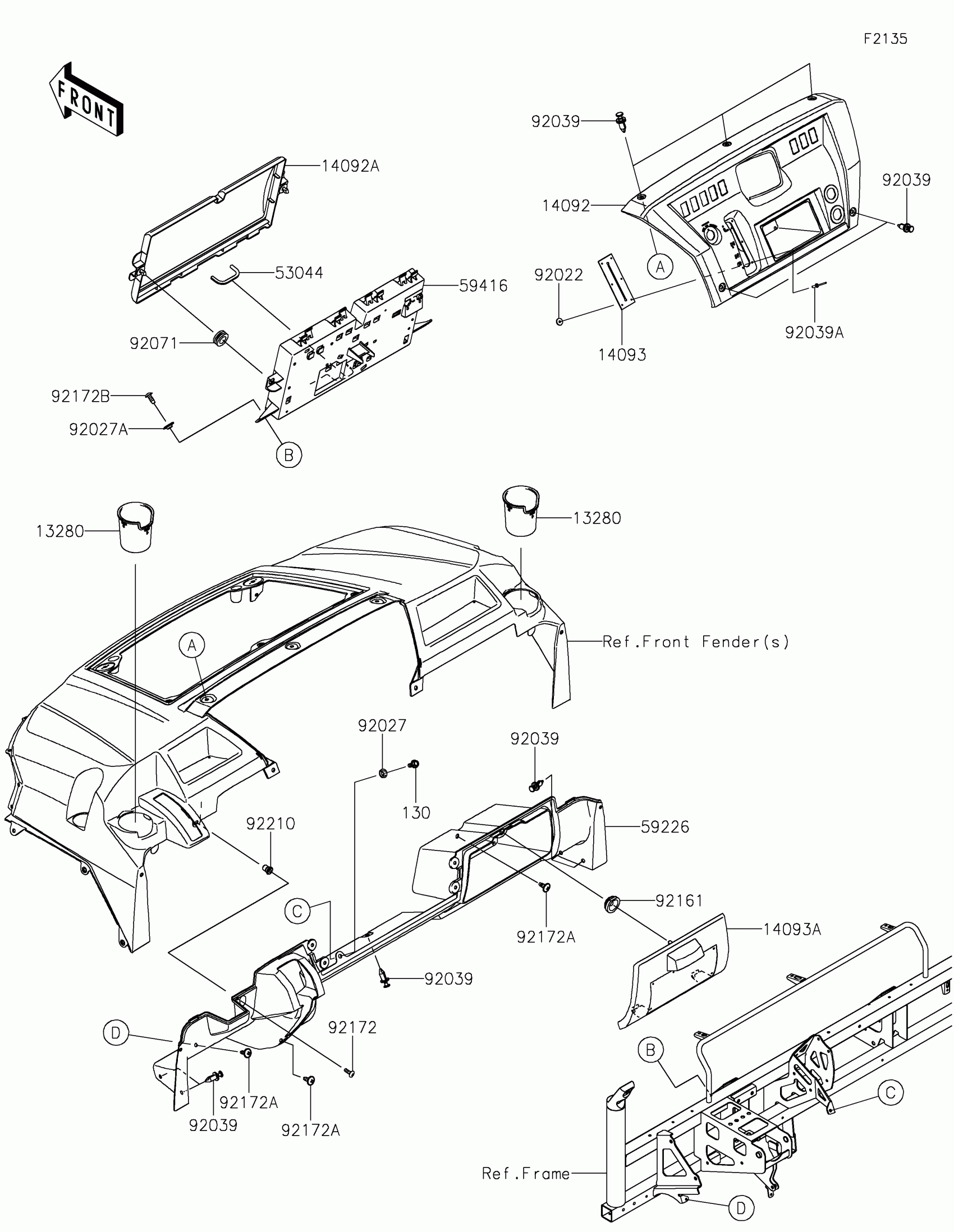

2026 Kawasaki Mule PRO-FXR™ 1000 LE Front BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13280

HOLDER,CUP

13280-0774

1

$10.58

In stock

14092

COVER,DASHBOARD

14092-1192

1
Out of stock

14092A

COVER,ELECTRIC BOX

14092-1197

1
Out of stock

14093

COVER,SHIFT LEVER

14093-0146

1
Out of stock

14093A

COVER,GLOVE BOX

14093-1061

1
Out of stock

53044

TRIM

53044-0572

1

$1.81

In stock

59226

PANEL-CONTROL

59226-0042

1
Out of stock

59416

CASE-ELECTRIC

59416-0026

1
Out of stock

92022

WASHER,3.3X12X1.2

92022-1407

1
Out of stock

92027

COLLAR,L=4.6

92027-1168

1
Out of stock

92027A

COLLAR,L=5.1

92027-1260

1
Out of stock

92039

RIVET

92039-0865

1
Out of stock

92039A

RIVET

92039-1231

1
Out of stock

92071

GROMMET

92071-1131

1
Out of stock

92161

DAMPER,7.8X30X11

92161-1953

1

$1.08

In stock

92172

SCREW,5MM

92172-0292

1
Out of stock

92172A

SCREW,6X16

92172-0711

1
Out of stock

92172B

SCREW,TAPPING,6X16

92172-0739

1
Out of stock

92210

NUT,WELL,5MM

92210-0370

1
Out of stock

130

BOLT-FLANGED,6X16

130CA0616

1

$1.53

In stock
