2026 Kawasaki Mule PRO-FXR™ 1000 LE Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2026 Kawasaki Mule PRO-FXR™ 1000 LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

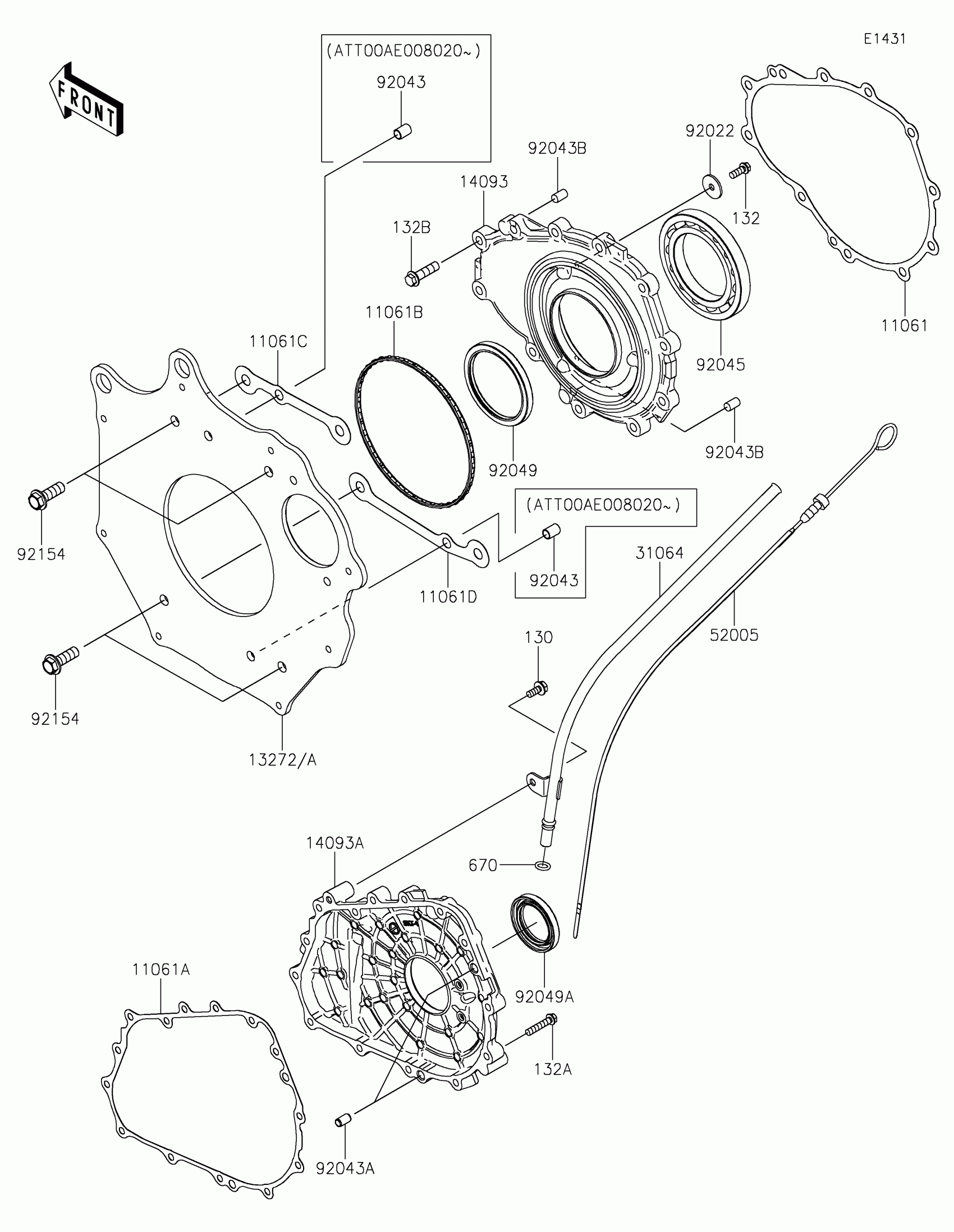

2026 Kawasaki Mule PRO-FXR™ 1000 LE Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,CLUTCH COVER

11061-1305

1
Out of stock

11061A

GASKET,CRANKCASE COVER

11061-1461

1
Out of stock

11061B

GASKET,COVER-BACK PLATE

11061-1462

1
Out of stock

11061C

GASKET,CRANKCASE UPPER

11061-1533

1
Out of stock

11061D

GASKET,CRANKCASE LOWER

11061-1534

1
Out of stock

13272A

PLATE,CLUTCH COVER,BACK

13272-4346

1
Out of stock

14093

COVER,CRANKCASE LH

14093-1385

1
Out of stock

14093A

COVER,CRANKCASE RH

14093-1386

1
Out of stock

31064

PIPE-COMP

31064-0753

1
Out of stock

52005

GAUGE,OIL

52005-0783

1
Out of stock

92022

WASHER,6.5X24X2

92022-1690

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92043A

PIN,6.2X8X14

92043-1263

1
Out of stock

92043B

PIN,8X14

92043-1567

1
Out of stock

92045

BEARING-BALL,16014CS45

92045-0709

1
Out of stock

92049

SEAL-OIL

92049-0869

1
Out of stock

92049A

SEAL-OIL

92049-0875

1
Out of stock

92154

BOLT-FLANGED,10X30

92154-7039

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

132

1

$1.21

In stock

132A

1

$2.17

In stock

132B

1

$3.53

In stock

670

O RING,10MM

670D2010

1
Out of stock
