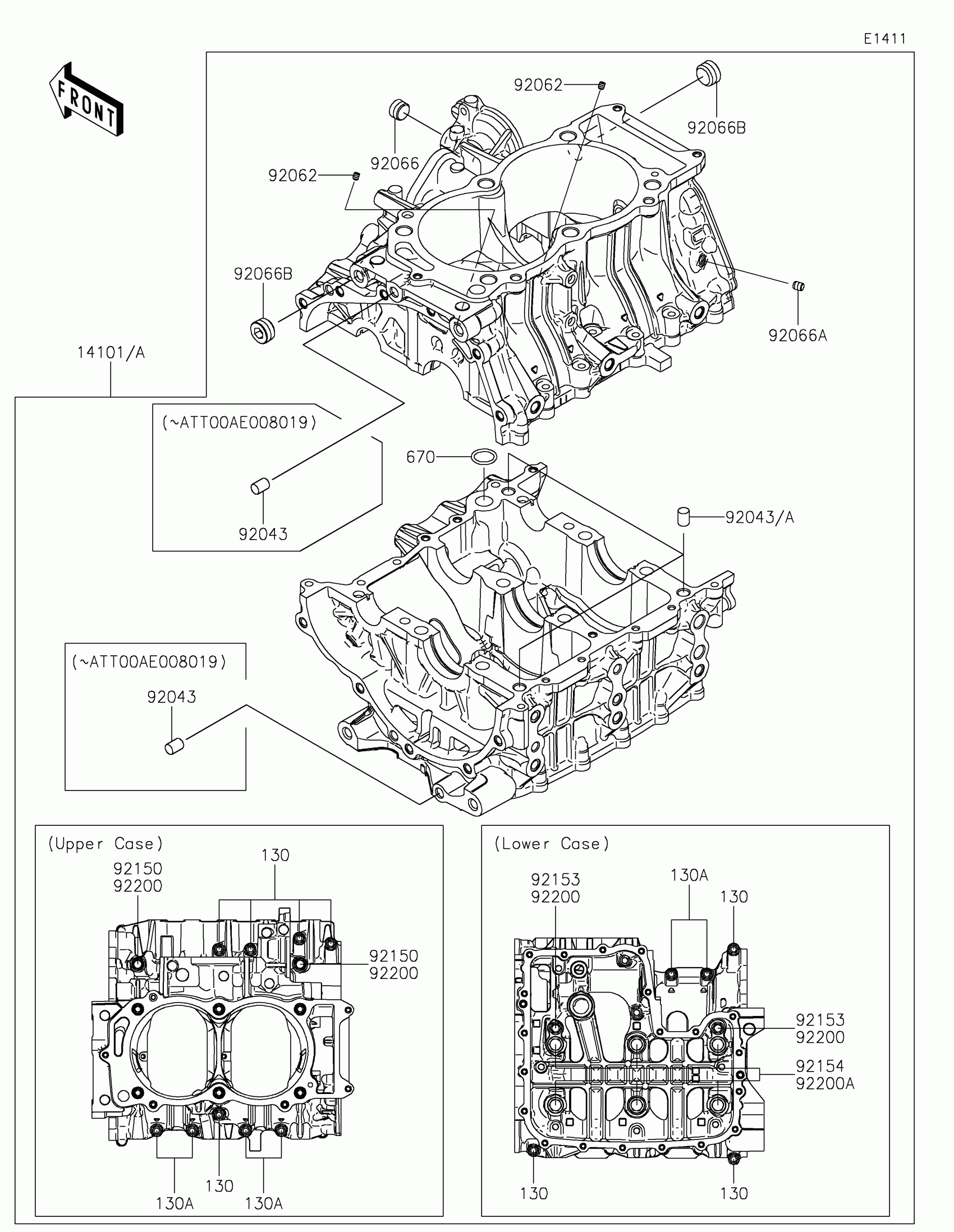

Find the part on the Crankcase diagram for your 2026 Kawasaki Mule PRO-FXR™ 1000 LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki Mule PRO-FXR™ 1000 LE Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14101A

SET-CRANKCASE

14101-0040

1
Out of stock

92043A

PIN,10X14

92043-1506

1
Out of stock

92062

NOZZLE

92062-0004

1
Out of stock

92066

PLUG

92066-0836

1
Out of stock

92066A

PLUG,OIL LINE,7.2X8

92066-1012

1
Out of stock

92066B

PLUG

92066-3779

1
Out of stock

92150

BOLT,8X70

92150-1483

1
Out of stock

92153

BOLT,FLANGED,8X90

92153-1632

1
Out of stock

92154

BOLT

92154-3912

1
Out of stock

92200

WASHER,8.2X16X1.6

92200-0047

1
Out of stock

92200A

WASHER,11.5X20.5X3.2

92200-0727

1
Out of stock

130

BOLT-FLANGED,6X55

130CA0655

1
Out of stock

130A

BOLT-FLANGED,6X45

130CB0645

1

$1.66

In stock

670

O RING,18MM

670D2018

1
Out of stock
