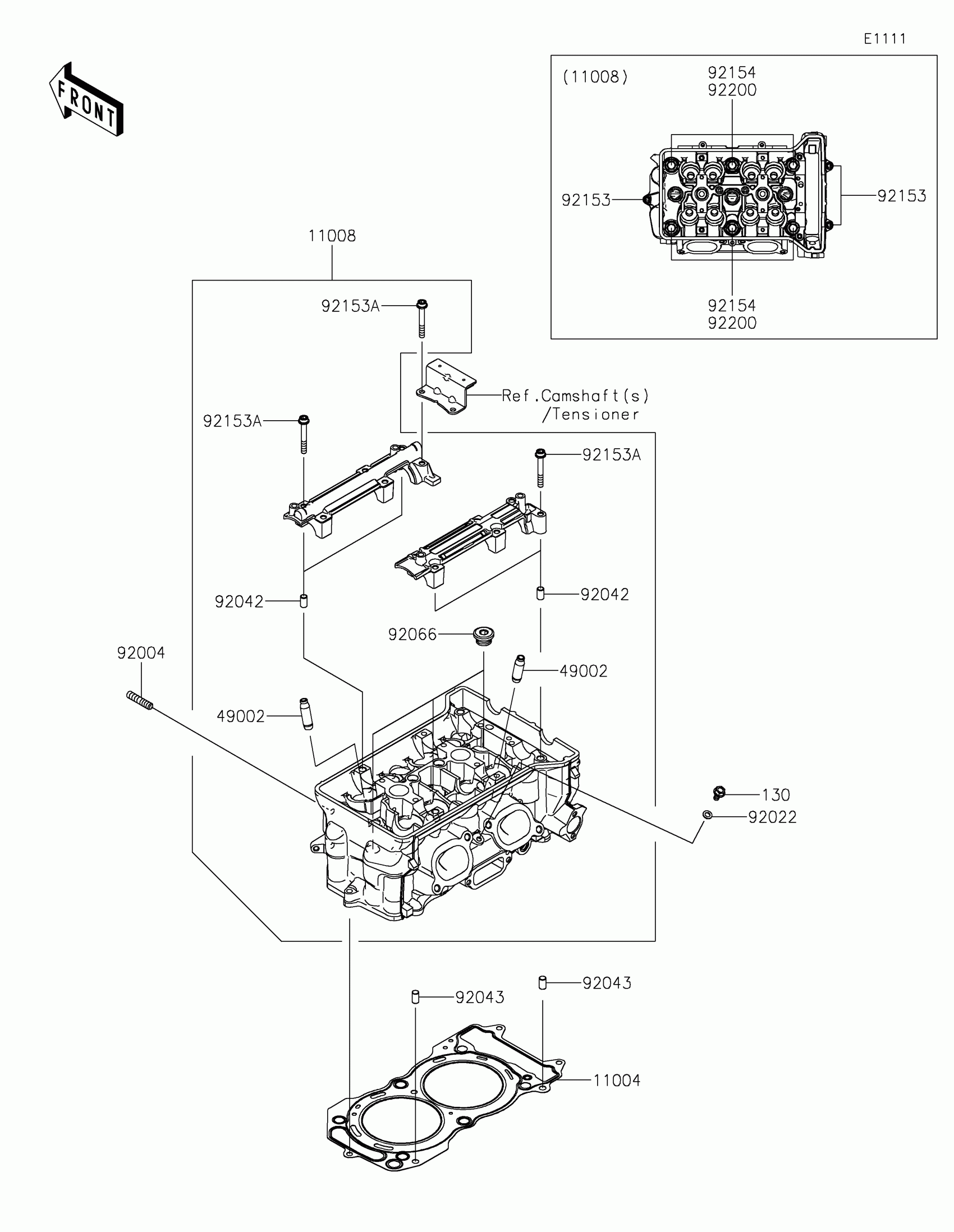

Kawasaki MULE PRO-FXR™ 1000 LE Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0809

$105.13

11008

HEAD-COMP-CYLINDER

11008-1502

$1,833.13

49002

GUIDE-VALVE

49002-0709

$9.30

92004

STUD,8X22

92004-1217

$4.27

92022

WASHER,6.2X11X1

92022-304

$2.76

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,8X14

92043-1567

$1.62

92066

PLUG,18X10

92066-0832

$12.31

92153

BOLT,6X95

92153-0320

$8.68

92153A

BOLT,SOCKET,6X45

92153-0656

$1.81

92154

BOLT,11X157

92154-3931

$11.98

92200

WASHER,11.5X20.5X3.2

92200-0727

$8.07

130

BOLT-FLANGED,6X12

130BA0612

$1.25
