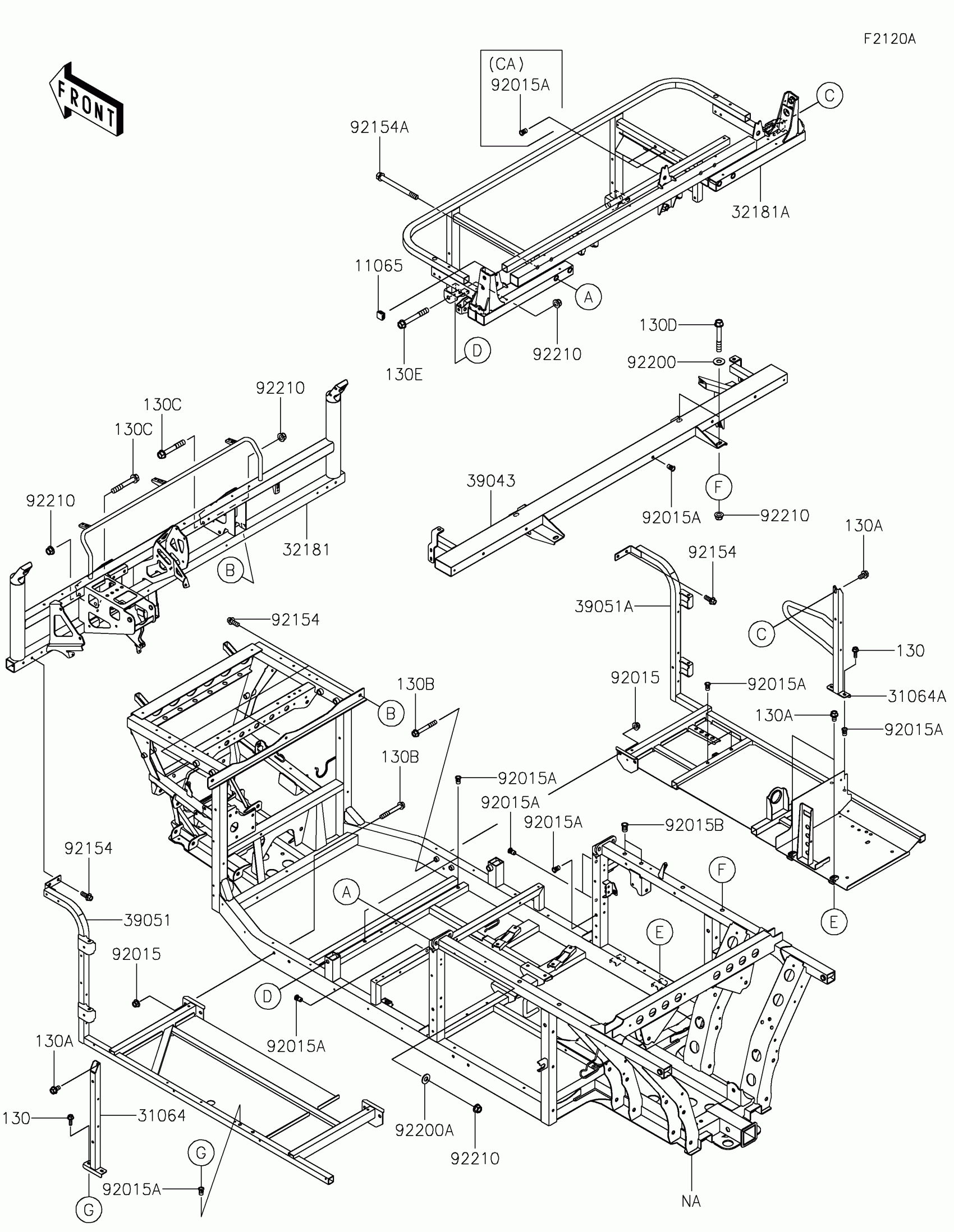

Find the part on the Frame diagram for your 2026 Kawasaki Mule PRO-FXR™ 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki Mule PRO-FXR™ 1000 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0901

1
Out of stock

31064

PIPE-COMP,SEAT SIDE,LH

31064-0706

1
Out of stock

31064A

PIPE-COMP,SEAT SIDE,RH

31064-0707

1
Out of stock

32181

FRAME-SUB-COMP,DASH PANEL

32181-0048

1
Out of stock

32181A

FRAME-SUB-COMP,SEAT

32181-0049

1
Out of stock

39043

CROSSMEMBER-COMP,RR CROSS

39043-0042

1
Out of stock

39051

FRAME-COMP-SIDE,LH

39051-0047

1
Out of stock

39051A

FRAME-COMP-SIDE,RH

39051-0048

1
Out of stock

92015

NUT,8MM

92015-1432

1
Out of stock

92015A

NUT,POP,6MM,L=15

92015-1791

1
Out of stock

92015B

NUT,POP,8MM,L=16.5

92015-1793

1
Out of stock

92154

BOLT,FLANGED,8X20

92154-1226

1
Out of stock

92154A

BOLT,FLANGED,10X110

92154-1353

1
Out of stock

92200

WASHER,10.5X25X1.6

92200-1595

1
Out of stock

92200A

WASHER,10.3X23X1.6

92200-2009

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

130

BOLT-FLANGED,6X18

130BA0618

1

$1.36

In stock

130A

BOLT-FLANGED,8X14

130BA0814

1

$1.78

In stock

130B

BOLT-FLANGED,8X60

130BA0860

1

$1.44

In stock

130C

BOLT-FLANGED,10X65

130BA1065

1

$2.17

In stock

130D

BOLT-FLANGED,10X70

130BA1070

1

$2.25

In stock

130E

BOLT-FLANGED,10X75

130CA1075

1

$3.85

In stock

92015A

NUT,POP,6MM,L=15

92015-1791

1
Out of stock
