2025 Kawasaki Mule Pro-FX™ 820 Eps Fuel Tank Diagram

← All diagrams

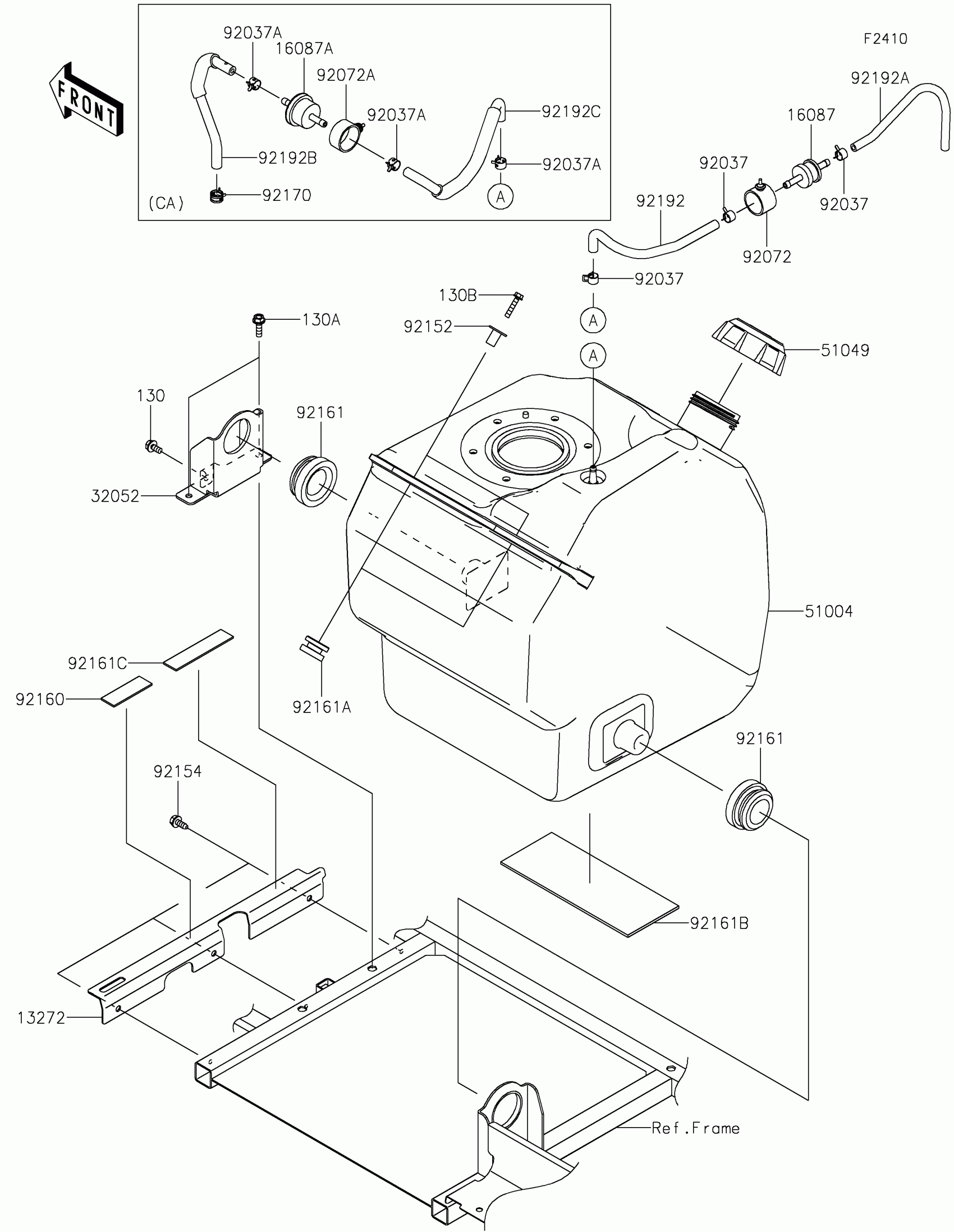

Find the part on the Fuel Tank diagram for your 2025 Kawasaki Mule Pro-FX™ 820 Eps, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Mule Pro-FX™ 820 Eps Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-2206

1
Out of stock

16087

VALVE-CHECK

16087-0008

1
Out of stock

16087A

VALVE-CHECK

16087-0011

1
Out of stock

32052

BRACKET-TANK

32052-0751

1
Out of stock

51004

TANK-FUEL

51004-0018

1
Out of stock

51049

CAP-TANK,FUEL

51049-0718

1
Out of stock

92037

CLAMP,TUBE

92037-1461

1
Out of stock

92037A

CLAMP

92037-2113

1
Out of stock

92072

BAND

92072-0850

1
Out of stock

92072A

BAND

92072-0852

1
Out of stock

92152

COLLAR,6.8X10X18.1

92152-1867

1
Out of stock

92154

BOLT,6X15.6

92154-1250

1
Out of stock

92160

DAMPER

92160-1075

1
Out of stock

92161

DAMPER,30X56X25

92161-1613

1
Out of stock

92161A

DAMPER,10X28X17

92161-1614

1
Out of stock

92161B

DAMPER,80X200X3.175

92161-1645

1
Out of stock

92161C

DAMPER

92161-1876

1
Out of stock

92170

CLAMP

92170-2082

1
Out of stock

92192

TUBE,BREATHER

92192-0773

1
Out of stock

92192A

TUBE,BREATHER,5X9X220

92192-1199

1
Out of stock

92192B

TUBE,CHECK VALVE-FILTER

92192-2241

1
Out of stock

92192C

TUBE,5X10.4X185/35

92192-2285

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1
Out of stock

130A

BOLT-FLANGED,6X20

130BA0620

1
Out of stock

130B

BOLT-FLANGED,6X30

130BA0630

1
Out of stock
