2025 Kawasaki Mule PRO-FX™ 820 EPS Fuel Injection Diagram

← All diagrams

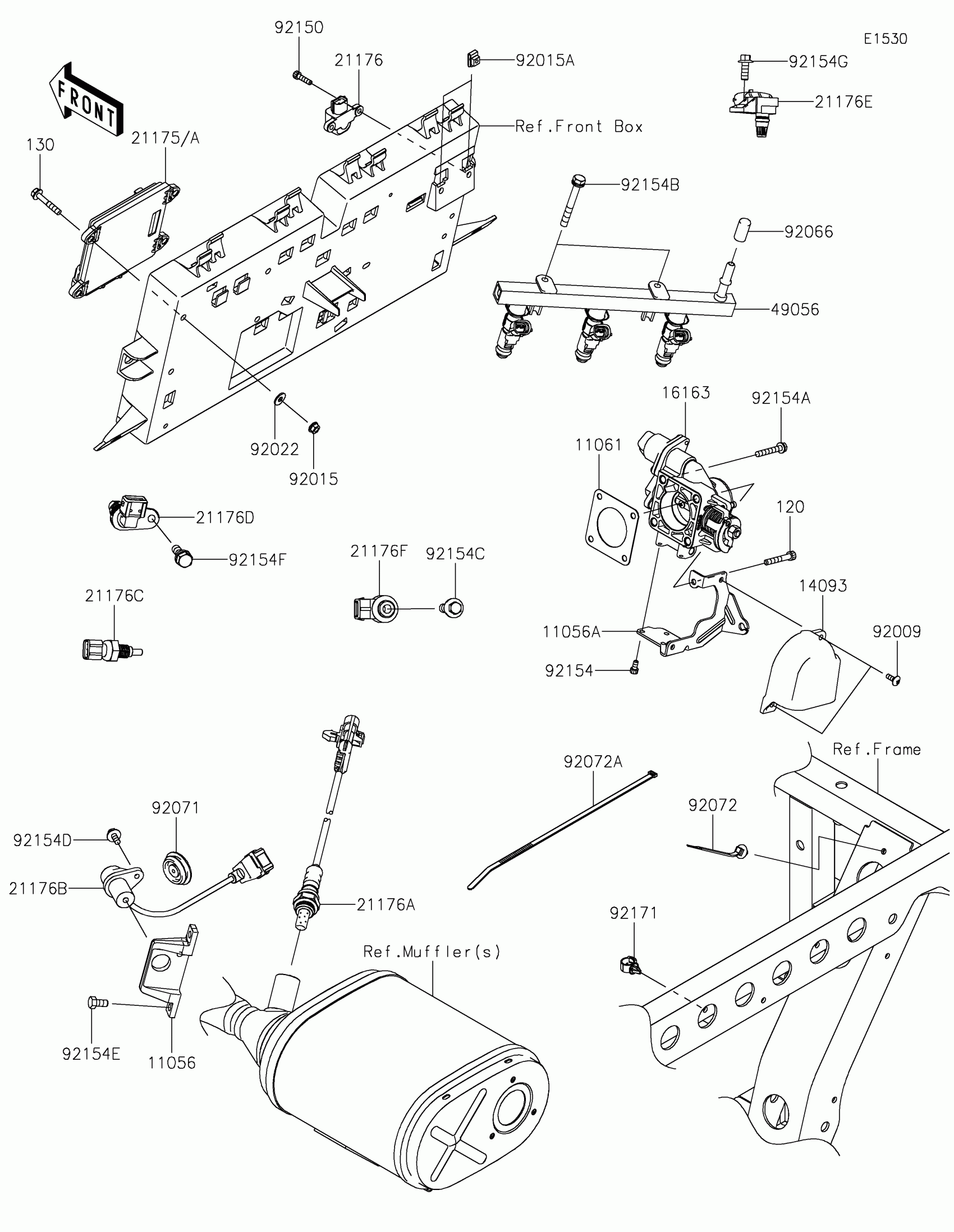

Find the part on the Fuel Injection diagram for your 2025 Kawasaki Mule PRO-FX™ 820 EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Mule PRO-FX™ 820 EPS Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,CRANKSHAFT POSITION

11056-2680

1
Out of stock

11056A

BRACKET,THROTTLE CABLE

11056-7495

1
Out of stock

11061

GASKET,THROTTLE

11061-0954

1
Out of stock

14093

COVER,THROTTLE

14093-0043

1
Out of stock

16163

THROTTLE-ASSY

16163-0816

1
Out of stock

21175

CONTROL UNIT-ELECTRONIC,DFI

21175-1167

1
Out of stock

21175A

CONTROL UNIT-ELECTRONIC,DFI

21175-1180

1
Out of stock

21176

SENSOR,VEHICLE-DOWN

21176-0026

1
Out of stock

21176A

SENSOR,OXYGEN

21176-0773

1
Out of stock

21176B

SENSOR,CRANKSHAFT POSITION

21176-0795

1
Out of stock

21176C

SENSOR,WATER TEMP

21176-0796

1
Out of stock

21176D

SENSOR,CAMSHAFT POSITION

21176-0797

1
Out of stock

21176E

SENSOR,AIR INTAKE TEMP

21176-0798

1
Out of stock

21176F

SENSOR,EXPLOSION

21176-0799

1
Out of stock

49056

PIPE-INJECTION

49056-0038

1
Out of stock

92009

SCREW,5X14,WHITE

92009-1366

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,5MM

92015-1627

1
Out of stock

92022

WASHER

92022-2247

1
Out of stock

92066

PLUG

92066-0810

1
Out of stock

92071

GROMMET

92071-0730

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92072A

BAND,L=292.1

92072-3509

1
Out of stock

92150

BOLT,SOCKET,5X20

92150-1019

1
Out of stock

92154

BOLT,SOCKET,5X10

92154-1396

1
Out of stock

92154A

BOLT,6X38

92154-1589

1
Out of stock

92154B

BOLT,6X50

92154-1591

1
Out of stock

92154C

BOLT,FLANGED,8X30

92154-1592

1
Out of stock

92154D

BOLT,FLANGED,6X12

92154-1593

1
Out of stock

92154E

BOLT,6X12

92154-1594

1
Out of stock

92154F

BOLT,8X16

92154-1595

1
Out of stock

92154G

BOLT,FLANGED,6X16

92154-1596

1
Out of stock

92171

CLAMP,13MM DIA.

92171-1415

1
Out of stock

120

BOLT-SOCKET,6X40

120CA0640

1
Out of stock

130

BOLT-FLANGED,6X35

130BA0635

1

$0.90

In stock
