Description

Price

14092

COVER

14092-1201

$50.60

39152

WEIGHT-RAMP

39152-0104

$47.45

49048

SHOE,T=7.2

49048-1087

$11.66

49048A

SHOE,T=7.3

49048-1088

$11.42

49048B

SHOE,T=7.4

49048-1089

$11.66

49048C

SHOE,T=7.5

49048-1090

$11.66

49048D

SHOE,T=7.6

49048-1091

$11.66

49048E

SHOE,T=7.7

49048-1092

$11.66

49048F

SHOE,T=7.8

49048-1093

$13.78

49048G

SHOE,T=7.9

49048-1094

$13.78

49048H

SHOE,T=8.0

49048-1095

$11.66

49050

SPIDER

49050-0565

$196.53

49093

CONVERTER-ASSY-DRIVE

49093-0101

$867.49

49093A

CONVERTER-ASSY-DRIVE

49093-0102

$867.49

49093B

CONVERTER-ASSY-DRIVE

49093-0103

$867.49

59302

SHEAVE-COMP,B MARK,WHITE

59302-0092

$344.85

59302A

SHEAVE-COMP,A MARK,BLUE

59302-0093

$344.85

59302B

SHEAVE-COMP,C MARK,YELLOW

59302-0094

$344.85

59302C

SHEAVE-COMP,MOVABLE

59302-0119

$315.79

92019

NUT,LOCK,6MM

92019-008

$3.36

92043

PIN

92043-0809

$12.66

92043A

PIN,6.2X8X14

92043-1263

$0.49

92055

RING-O,59.5X2.4

92055-0753

$3.26

92055A

RING-O,3.5X39.7

92055-0789

$3.12

92066

PLUG

92066-0784

$4.92

92139

BUSHING

92139-1243

$6.29

92139A

BUSHING

92139-1244

$10.14

92139B

BUSHING,9X11X19.75

92139-1245

$5.99

92145

SPRING

92145-1977

$23.56

130

BOLT-FLANGED,6X30

130CA0630

$2.05

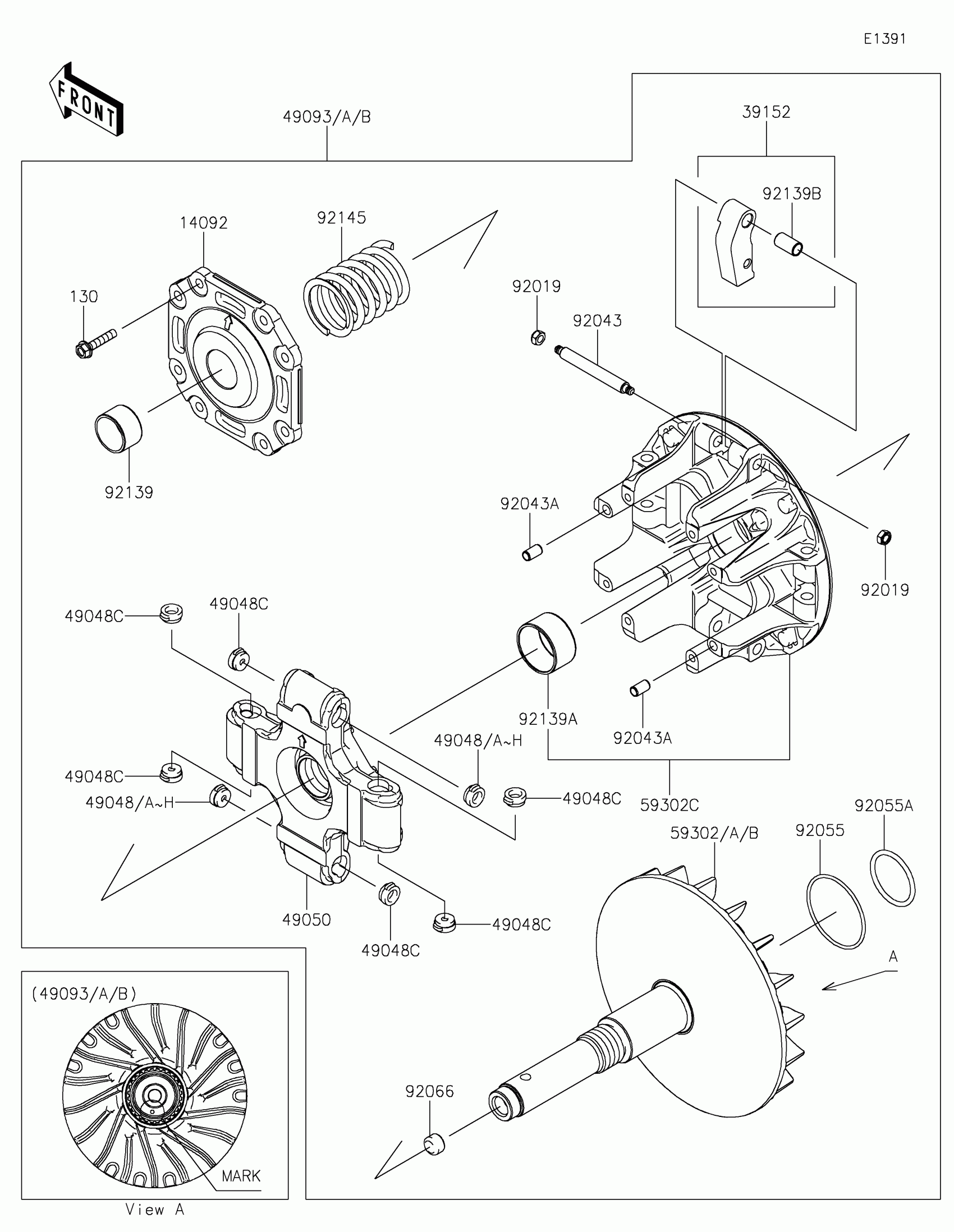

Kawasaki MULE PRO-FX™ 820 EPS Drive Converter Diagram
