2018 Kawasaki Mule PRO-DXT™ Front Hubs/brakes Diagram

← All diagrams

Find the part on the Front Hubs/brakes diagram for your 2018 Kawasaki Mule PRO-DXT™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

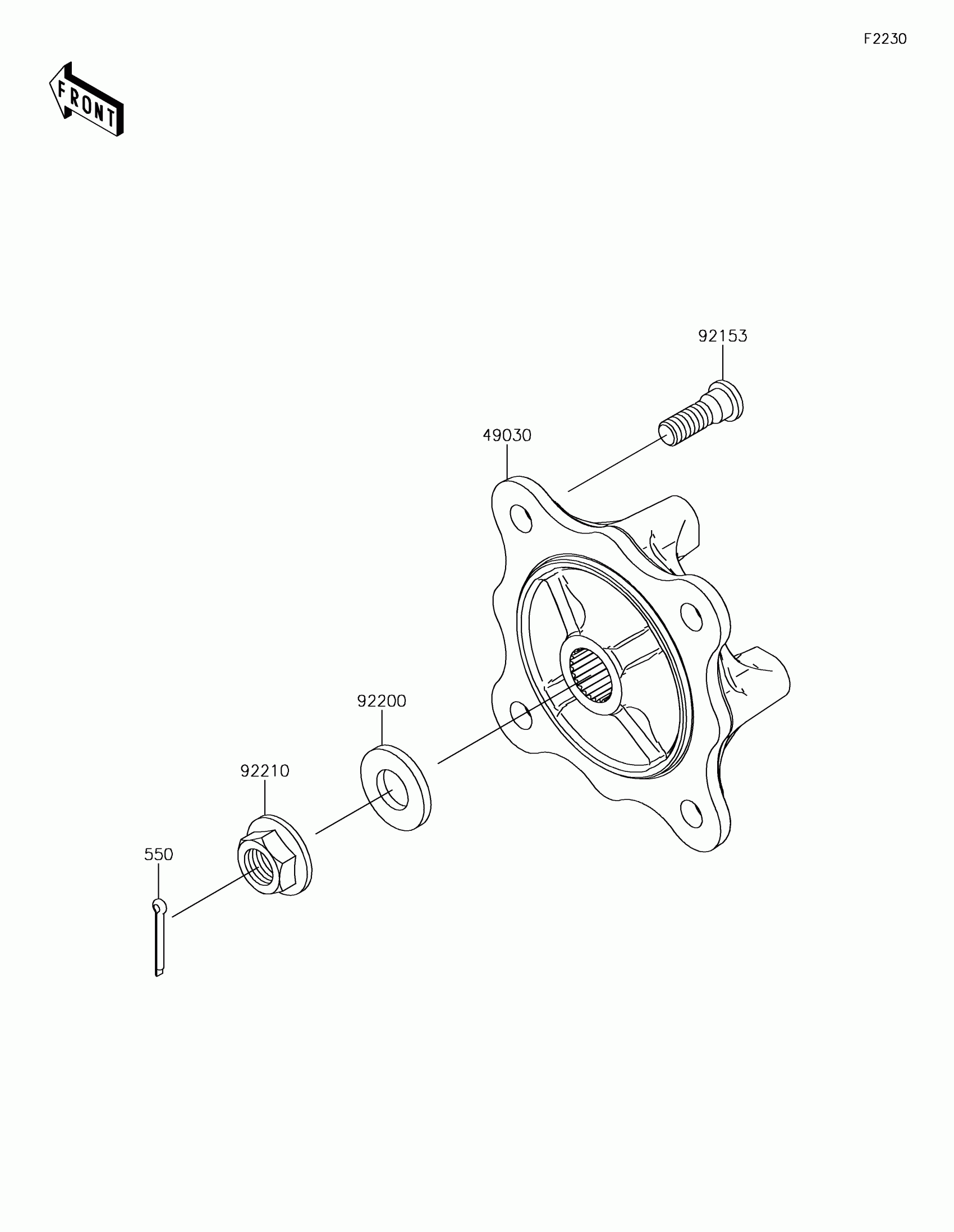

2018 Kawasaki Mule PRO-DXT™ Front Hubs/brakes Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49030

HUB,FR

49030-0048

1
Out of stock

550

PIN-COTTER,4.0X30

550AA4030

1
Out of stock

92153

BOLT,12MM

92153-1915

1
Out of stock

92200

WASHER,20.3X41X4.5

92200-0921

1
Out of stock

92210

NUT,FLANGED,20MM

92210-2093

1
Out of stock
