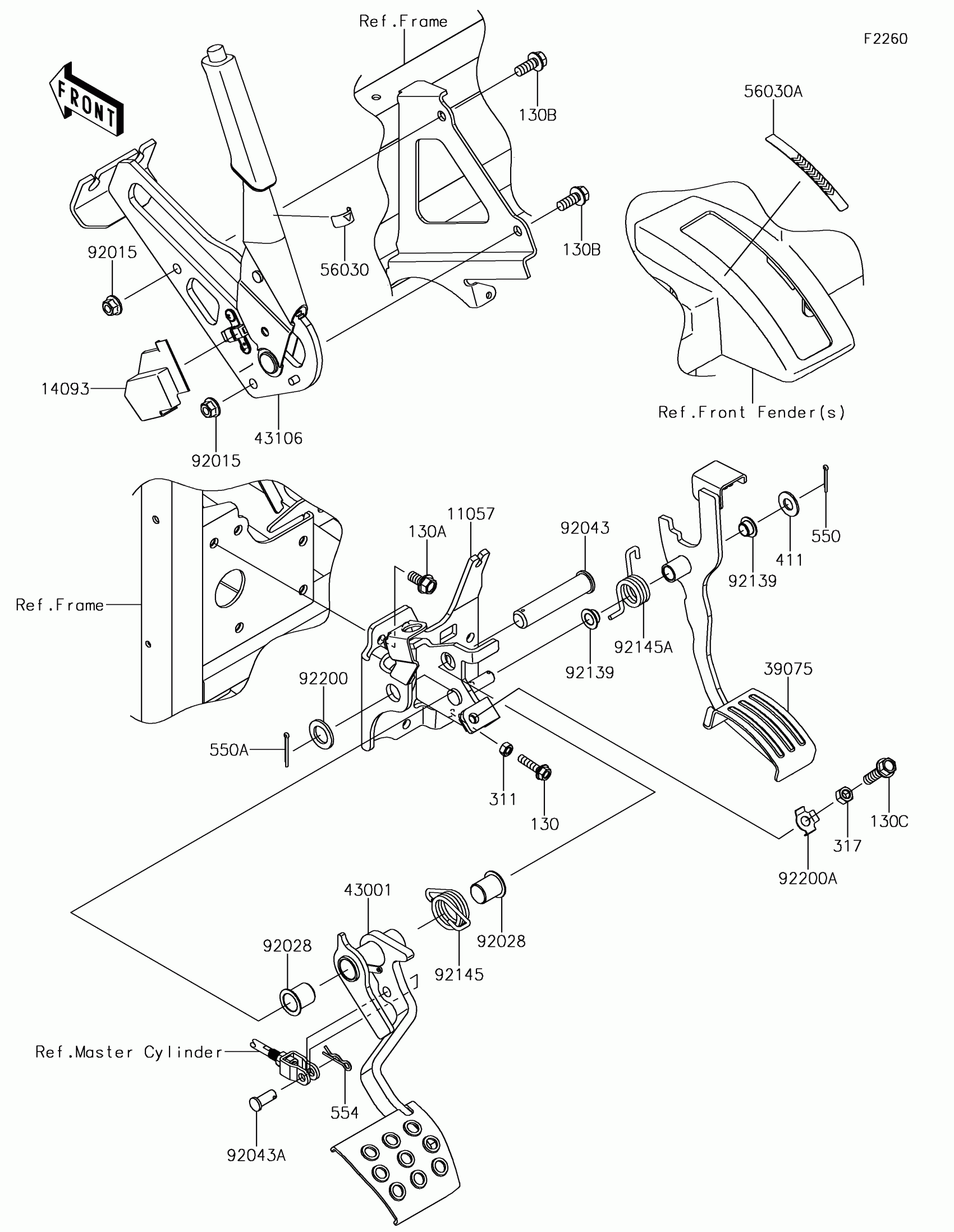

Find the part on the Brake Pedal/throttle Lever diagram for your 2018 Kawasaki Mule Pro-DXT™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Kawasaki Mule Pro-DXT™ Brake Pedal/throttle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,PARKING BRAKE

11057-0727

1
Out of stock

130

BOLT-FLANGED,6X25

130BA0625

1
Out of stock

130A

BOLT-FLANGED,8X18

130BA0818

1
Out of stock

130B

BOLT-FLANGED,8X20

130BA0820

1
Out of stock

130C

BOLT-FLANGED,8X30

130BA0830

1
Out of stock

14093

COVER,PARKING BRAKE SW.

14093-0241

1
Out of stock

311

NUT-HEX,6MM

311BA0600

1
Out of stock

317

NUT-HEX-SMALL,8MM

317BA0800

1
Out of stock

39075

LEVER-THROTTLE

39075-0024

1
Out of stock

411

WASHER-PLAIN,10MM

411AA1000

1
Out of stock

43001

LEVER-BRAKE,FOOT

43001-0752

1
Out of stock

43106

LEVER-ASSY-PARKING BRAKE

43106-0006

1
Out of stock

550

PIN-COTTER,2.5X18

550AA2518

1
Out of stock

550A

PIN-COTTER,2.5X25

550AA2525

1
Out of stock

554

PIN-SNAP,10MM

554DA1000

1
Out of stock

56030

LABEL,ARROW

56030-0905

1
Out of stock

56030A

LABEL,STROKE RANGE

56030-0930

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1406

1
Out of stock

92028

BUSHING

92028-1571

1
Out of stock

92043

PIN,16X78

92043-0917

1
Out of stock

92043A

PIN

92043-1039

1
Out of stock

92139

BUSHING

92139-0230

1
Out of stock

92145

SPRING,BRAKE PEDAL RETURN

92145-1615

1
Out of stock

92145A

SPRING,RETURN,22X3.2

92145-1768

1
Out of stock

92200

WASHER,16X26X2.3

92200-0043

1
Out of stock

92200A

WASHER,8.5X17X0.8

92200-0993

1
Out of stock
