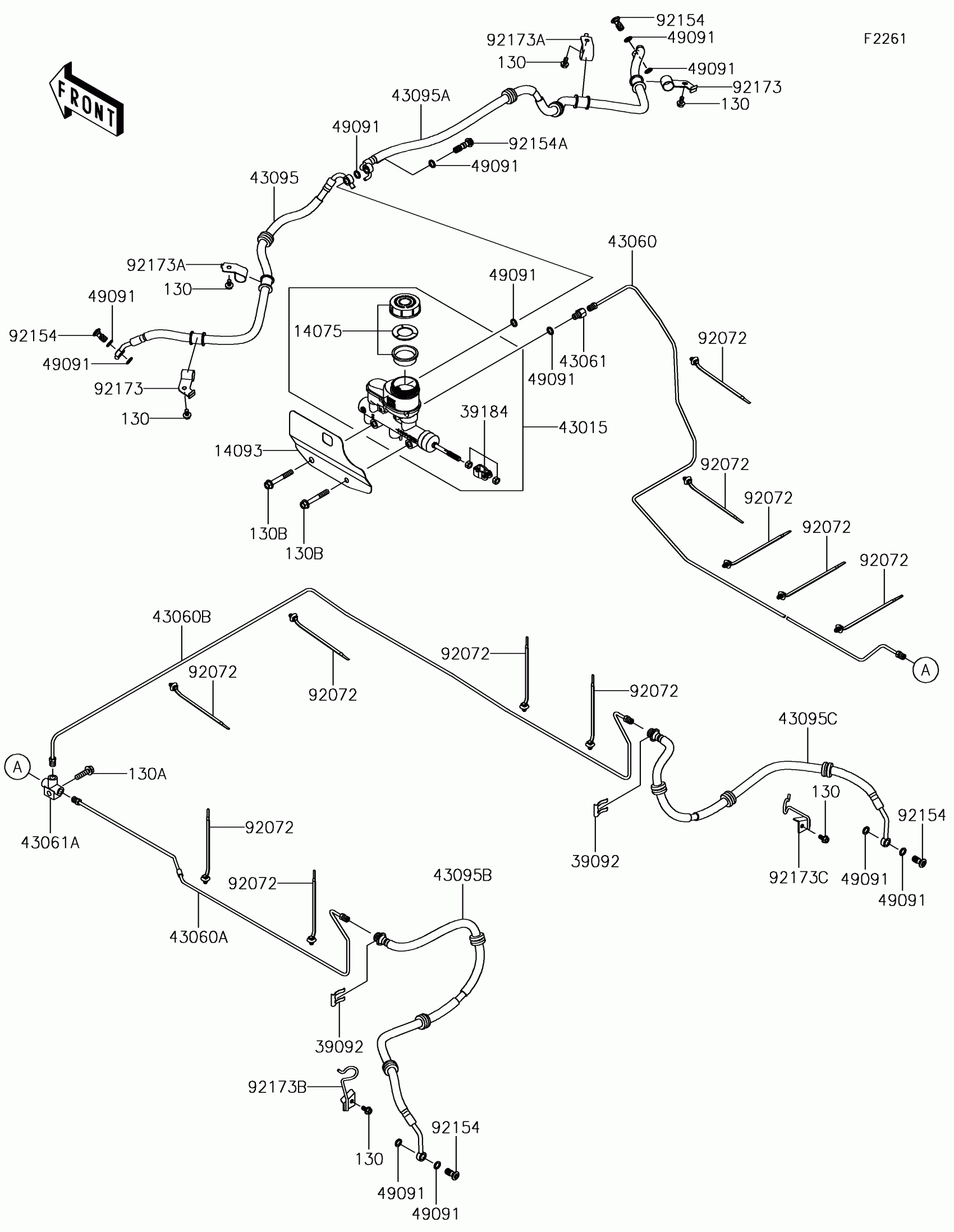

Kawasaki MULE PRO-DXT™ Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,8X30

130BA0830

$1.44

130B

BOLT-FLANGED,8X55

130BA0855

$1.90

14075

CAP-ASSY

14075-0038

$41.90

14093

COVER,M/C BODY

14093-0044

$8.34

39092

PIN-HAIR

39092-1052

$6.07

39184

BRACKET-ASSY

39184-0031

$21.27

43015

CYLINDER-ASSY-MASTER

43015-0595

$186.64

43060

PIPE-BRAKE

43060-0317

$38.86

43060A

PIPE-BRAKE,LH

43060-0318

Unavailable

43060B

PIPE-BRAKE,RH

43060-0319

$36.60

43061

JOINT-BRAKE,M/C

43061-0302

$33.87

43061A

JOINT-BRAKE

43061-1063

$34.99

43095

HOSE-BRAKE,661MM

43095-0807

$55.68

43095A

HOSE-BRAKE,1011MM

43095-0808

$61.61

43095B

HOSE-BRAKE,847MM

43095-0809

$48.98

43095C

HOSE-BRAKE,767MM

43095-0810

$47.64

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92154

BOLT,HEXALOBULAR,10X21

92154-1328

$6.17

92154A

BOLT,OIL,10X34.5

92154-1398

$7.47

92173

CLAMP

92173-1215

$3.36

92173A

CLAMP

92173-1216

$3.14

92173B

CLAMP

92173-1217

$8.46

92173C

CLAMP

92173-1218

$8.46
