2016 Kawasaki Mule PRO-DXT™ EPS LE Diesel Ignition Switch Diagram

← All diagrams

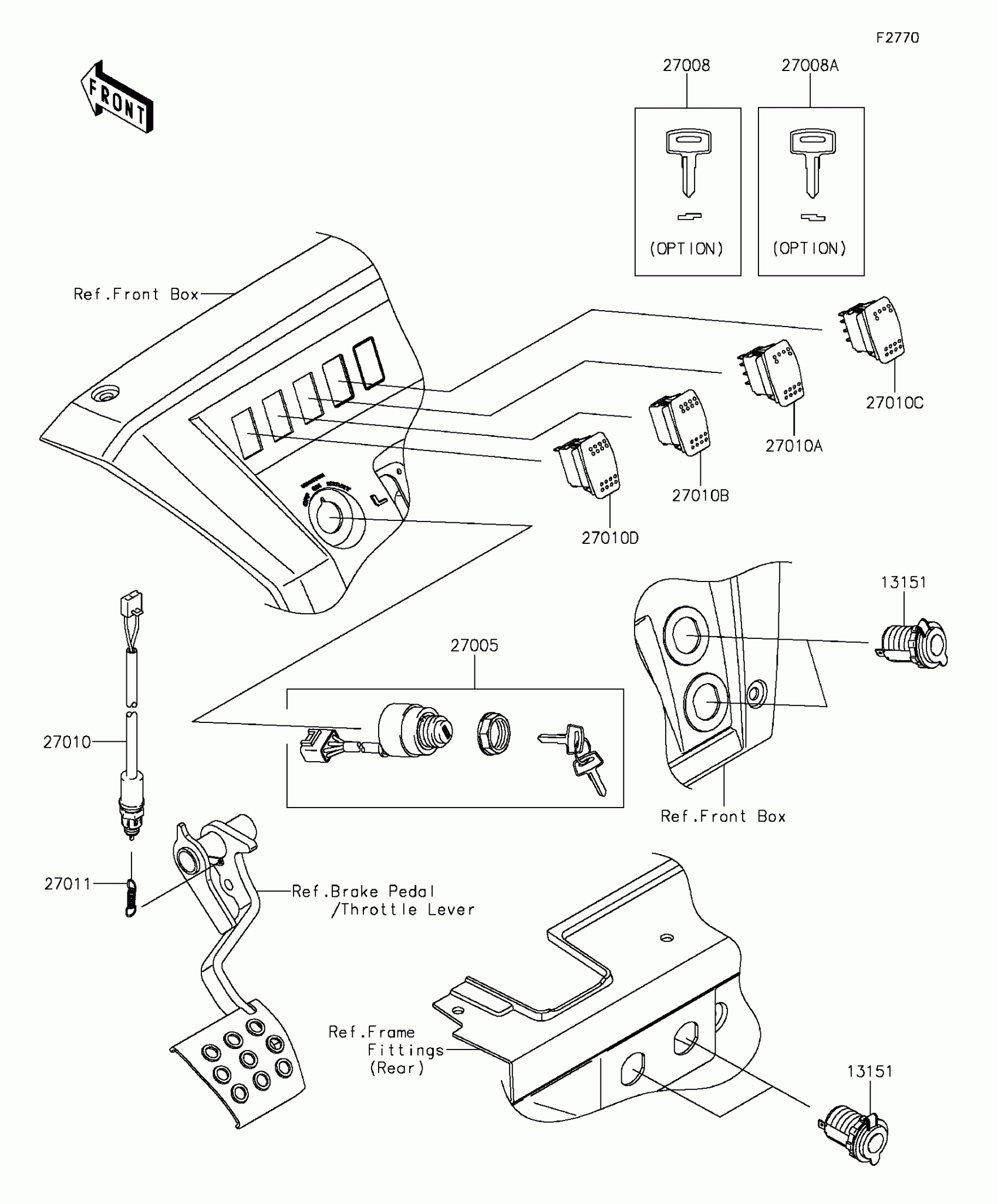

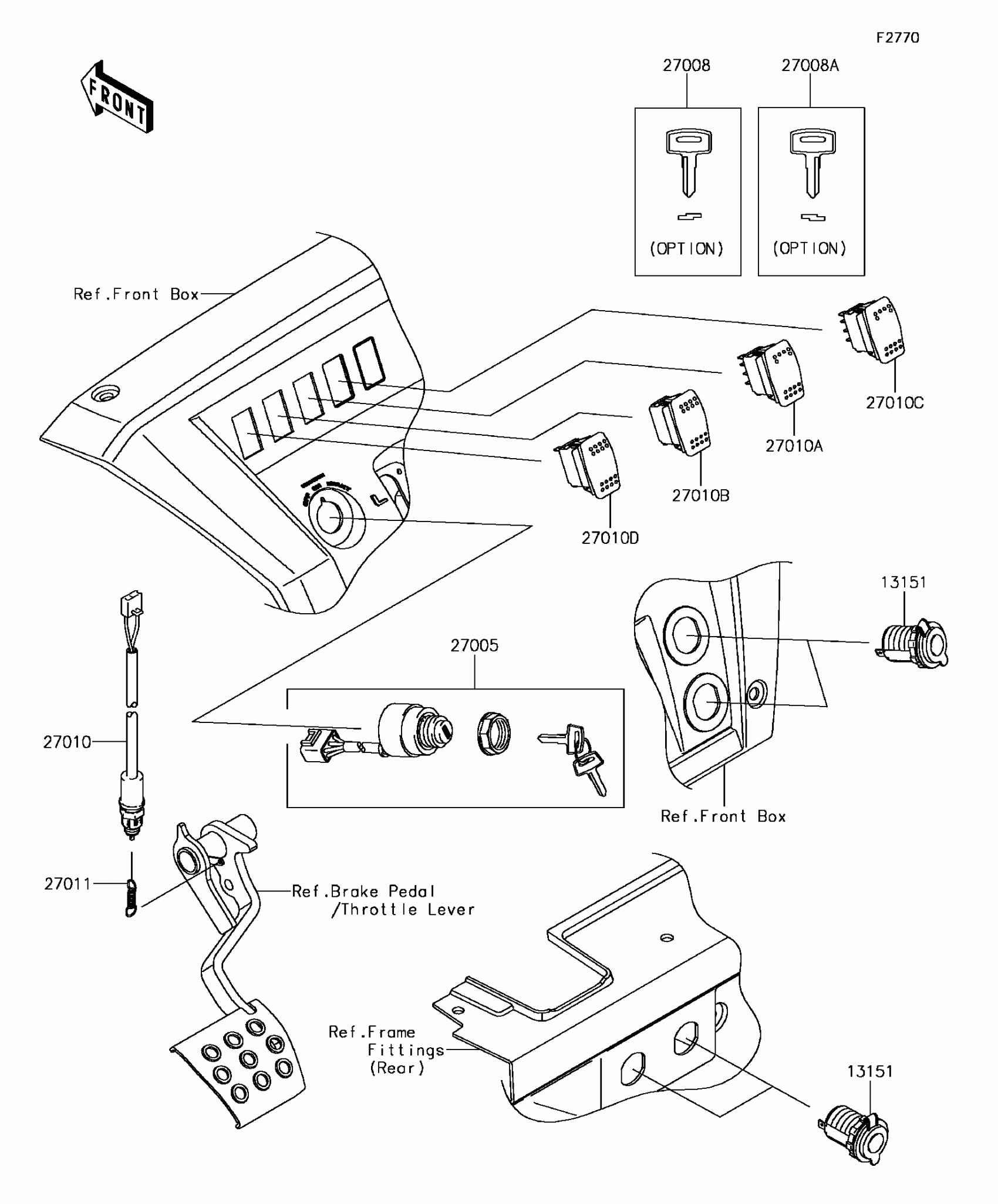

Find the part on the Ignition Switch diagram for your 2016 Kawasaki Mule PRO-DXT™ EPS LE Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule PRO-DXT™ EPS LE Diesel Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13151

SWITCH-COMP,OUTLET,12V

13151-0556

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-0585

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1153

1
Out of stock

27008A

KEY-LOCK,BLANK

27008-1157

1
Out of stock

27010

SWITCH,BRAKE

27010-0724

1
Out of stock

27010A

SWITCH,HEAD LAMP

27010-0750

1
Out of stock

27010B

SWITCH,2WD/4WD

27010-0751

1
Out of stock

27010C

SWITCH,LED

27010-0763

1
Out of stock

27010D

SWITCH,DIFF LOCK

27010-0810

1
Out of stock

27011

SPRING,BRAKE LAMP SWITCH

27011-006

1
Out of stock
