2016 Kawasaki Mule PRO-DXT™ EPS LE Diesel Generator Diagram

← All diagrams

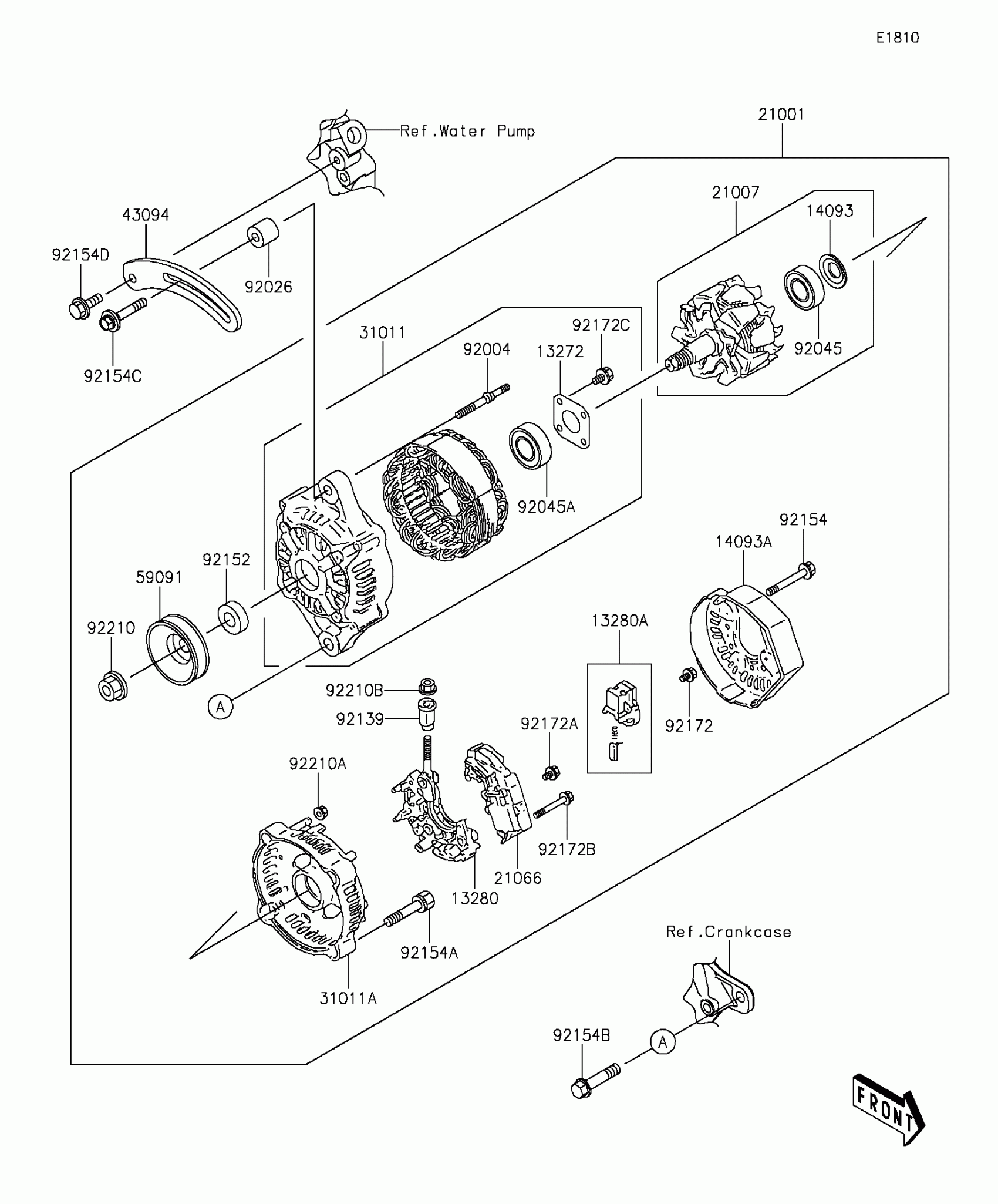

Find the part on the Generator diagram for your 2016 Kawasaki Mule PRO-DXT™ EPS LE Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule PRO-DXT™ EPS LE Diesel Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE,RETAINER

13272-2135

1

$10.58

In stock

13280

HOLDER

13280-0864

1

$257.97

In stock

13280A

HOLDER,BRUSH

13280-0865

1

$57.05

In stock

14093

COVER

14093-0450

1
Out of stock

14093A

COVER

14093-0451

1
Out of stock

21001

GENERATOR

21001-0613

1
Out of stock

21007

ROTOR

21007-0637

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0749

1
Out of stock

31011

FRAME

31011-0027

1
Out of stock

31011A

FRAME

31011-0028

1
Out of stock

43094

ADJUSTER

43094-0007

1
Out of stock

59091

PULLEY

59091-0015

1
Out of stock

92004

STUD

92004-0751

1
Out of stock

92026

SPACER

92026-0821

1
Out of stock

92045

BEARING-BALL

92045-0812

1
Out of stock

92045A

BEARING-BALL

92045-0816

1
Out of stock

92139

BUSHING

92139-0861

1
Out of stock

92152

COLLAR

92152-2198

1
Out of stock

92154

BOLT

92154-2074

1
Out of stock

92154A

BOLT

92154-2075

1
Out of stock

92154B

BOLT,FLANGED,10X45

92154-2076

1
Out of stock

92154C

BOLT

92154-2077

1
Out of stock

92154D

BOLT,FLANGED,8X20

92154-2078

1
Out of stock

92172

SCREW

92172-0989

1
Out of stock

92172A

SCREW

92172-0990

1
Out of stock

92172B

SCREW

92172-0991

1
Out of stock

92172C

SCREW

92172-1096

1
Out of stock

92210

NUT

92210-1474

1
Out of stock

92210A

NUT

92210-1475

1
Out of stock

92210B

NUT

92210-1476

1
Out of stock
