2016 Kawasaki Mule PRO-DXT™ EPS LE Diesel Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2016 Kawasaki Mule PRO-DXT™ EPS LE Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

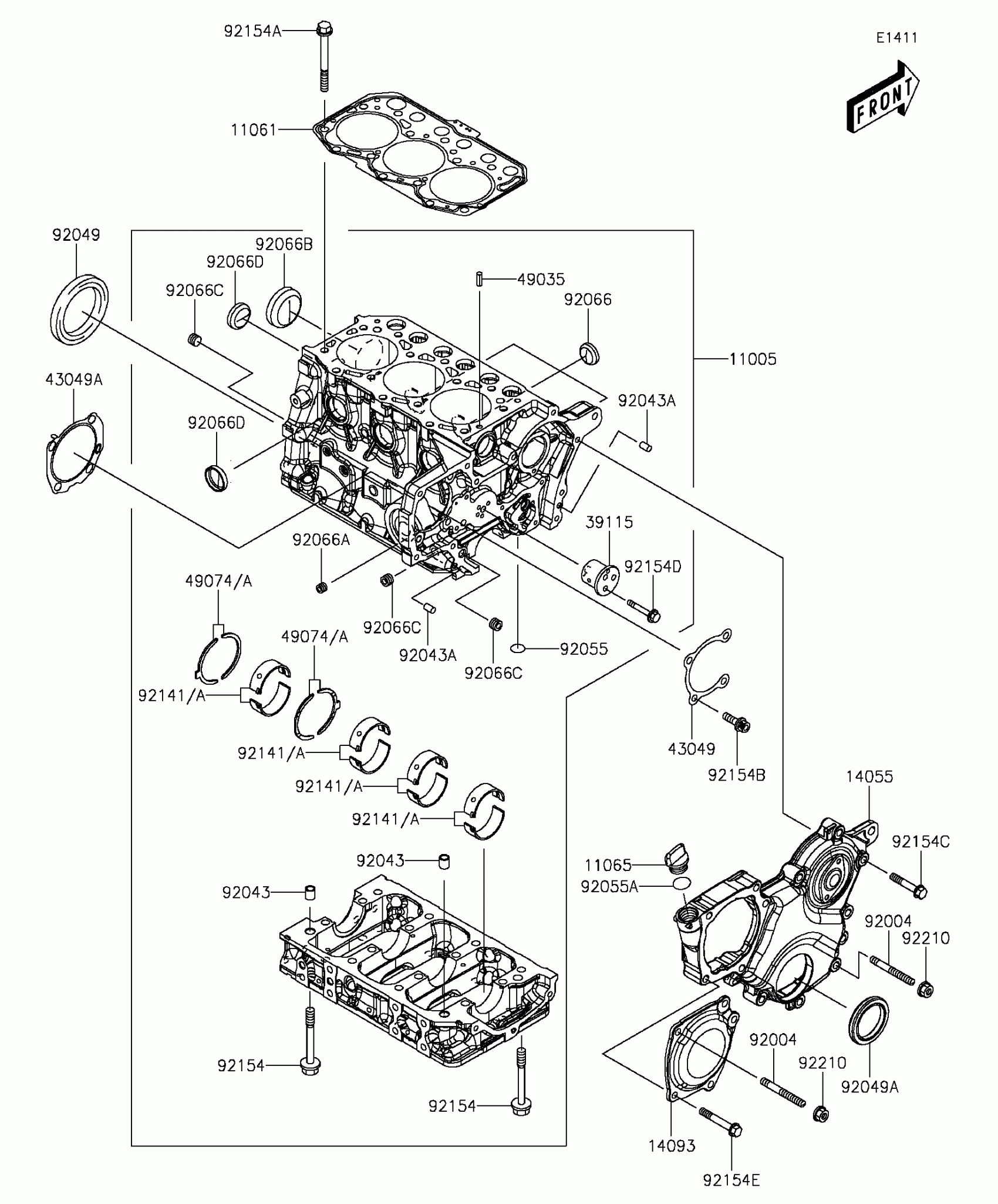

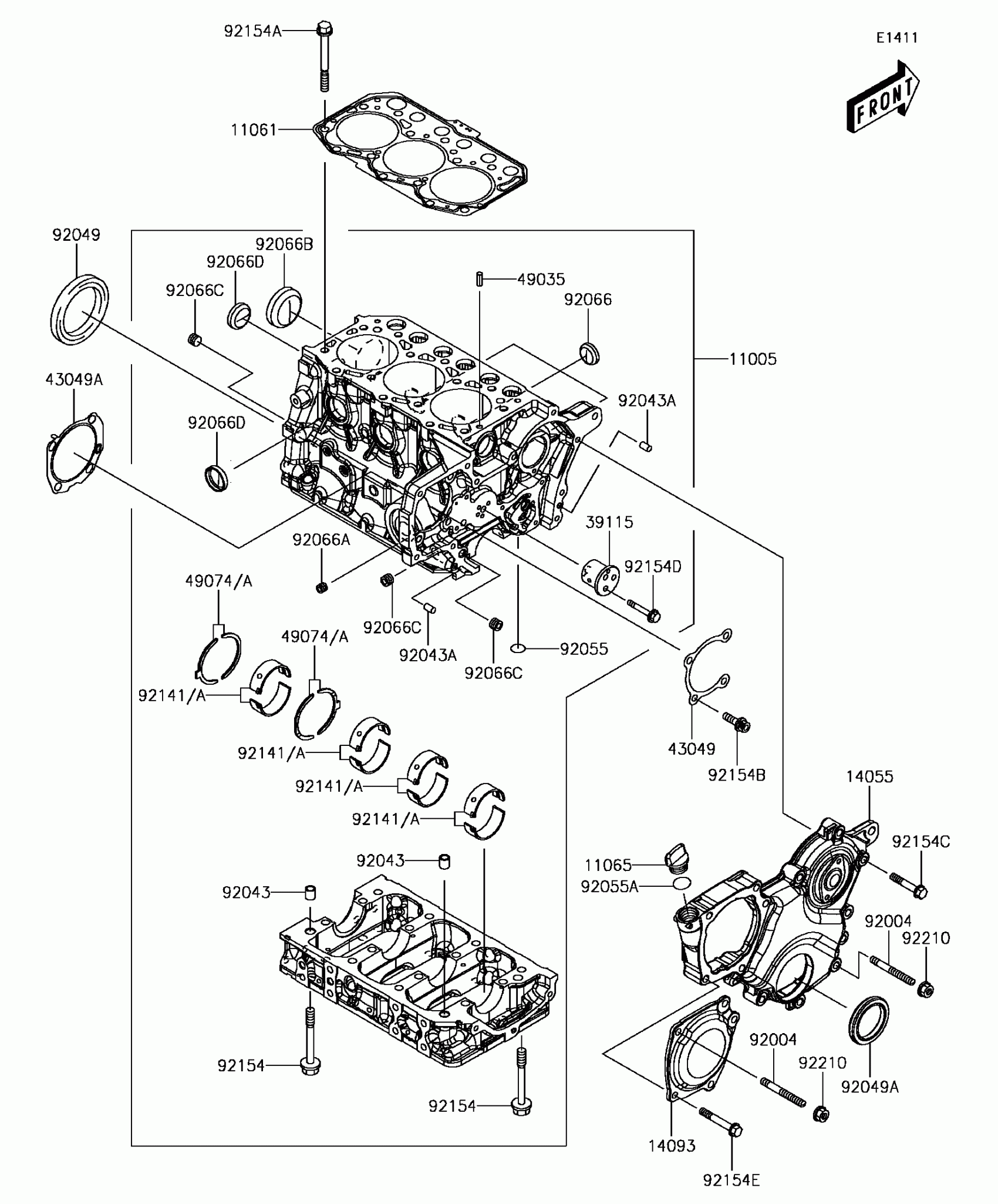

2016 Kawasaki Mule PRO-DXT™ EPS LE Diesel Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-0664

1
Out of stock

11061

GASKET,HEAD

11061-1192

1
Out of stock

11065

CAP

11065-0936

1
Out of stock

14055

CASE-GEAR

14055-0622

1

$121.60

In stock

14093

COVER

14093-0439

1
Out of stock

39115

SHAFT-IDLER

39115-0025

1

$48.15

In stock

43049

PACKING

43049-0035

1
Out of stock

43049A

PACKING

43049-0036

1
Out of stock

49035

PIN-SPRING

49035-0016

1
Out of stock

49074

PLATE-THRUST

49074-0003

1
Out of stock

49074A

PLATE-THRUST,O/S,0.25

49074-0005

—
Out of stock

92004

STUD,8X60

92004-0744

1
Out of stock

92043

PIN,KNOCK

92043-0883

1
Out of stock

92043A

PIN,6X10

92043-0884

1
Out of stock

92049

SEAL-OIL

92049-0787

1
Out of stock

92049A

SEAL-OIL

92049-0788

1
Out of stock

92055

RING-O

92055-0854

1
Out of stock

92055A

RING-O

92055-0855

1
Out of stock

92066

PLUG

92066-0846

1
Out of stock

92066A

PLUG

92066-0847

1
Out of stock

92066B

PLUG

92066-0849

1
Out of stock

92066C

PLUG

92066-0850

1
Out of stock

92066D

PLUG

92066-0860

1
Out of stock

92141

BEARING-PLANE,STD

92141-0004

1
Out of stock

92141A

BEARING-PLANE,U/S,0.25

92141-0005

—
Out of stock

92154

BOLT,FLANGED

92154-1981

1
Out of stock

92154A

BOLT,FLANGED

92154-1982

1
Out of stock

92154B

BOLT,SOCKET

92154-1983

1
Out of stock

92154C

BOLT,FLANGED,8X35

92154-1984

1
Out of stock

92154D

BOLT,FLANGED,6X40

92154-1995

1
Out of stock

92154E

BOLT,FLANGED,8X45

92154-2000

1
Out of stock

92210

NUT,8MM

92210-1473

1
Out of stock
