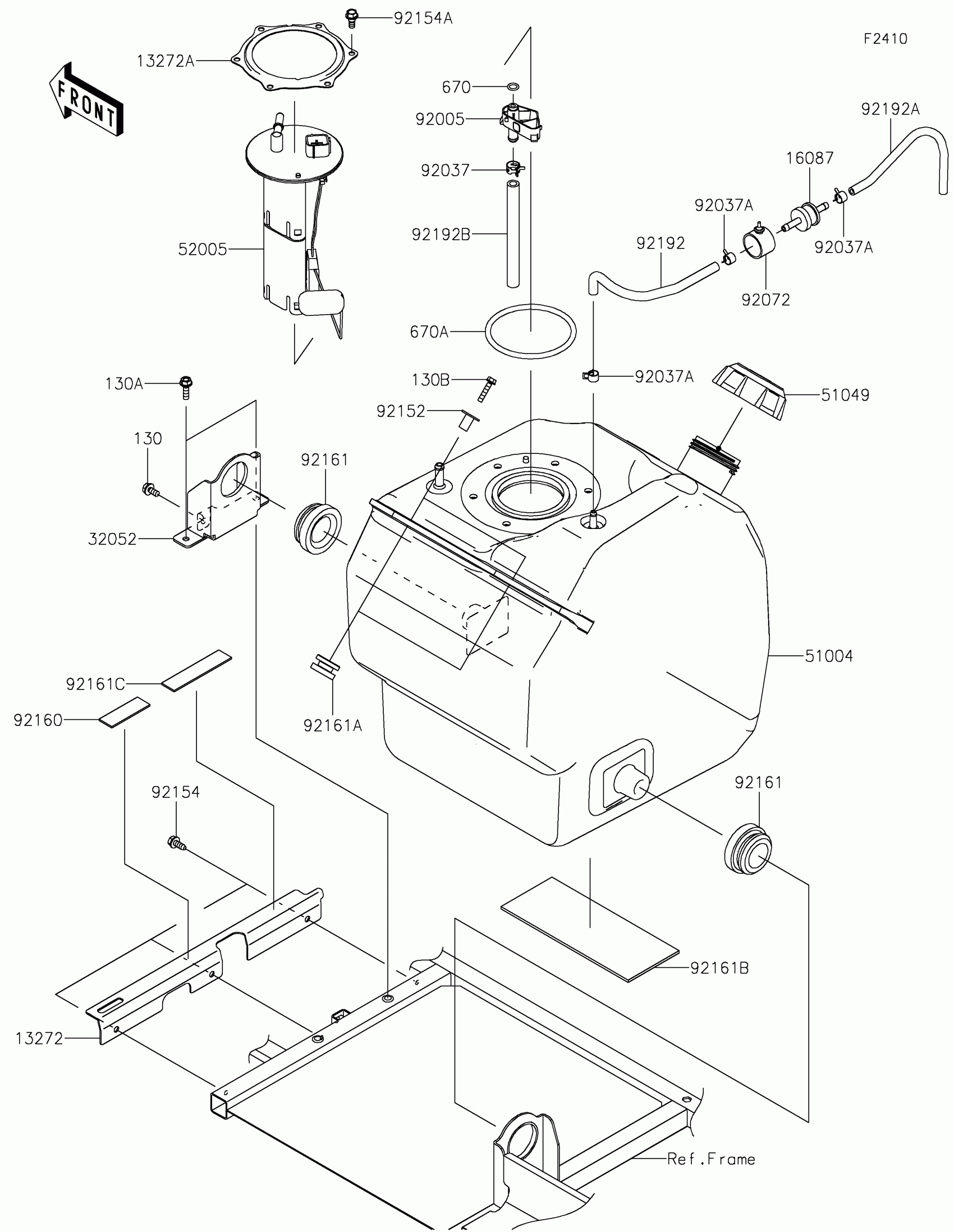

Kawasaki MULE PRO-DXT™ EPS DIESEL FE Fuel Tank Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X20

130BA0620

$1.28

130B

BOLT-FLANGED,6X30

130BA0630

$1.13

13272

PLATE

13272-2206

$13.03

13272A

PLATE

13272-2500

$4.98

16087

VALVE-CHECK

16087-0008

$33.58

32052

BRACKET-TANK

32052-0751

$15.44

51004

TANK-FUEL

51004-0019

$233.07

51049

CAP-TANK,FUEL

51049-0718

$58.05

52005

GAUGE,FUEL

52005-0753

$373.76

670

O RING,9MM

670E1509

$2.83

670A

O RING

670E5090

$27.18

92005

FITTING

92005-0813

$2.61

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92037A

CLAMP,TUBE

92037-1461

$2.93

92072

BAND

92072-0850

$4.39

92152

COLLAR,6.8X10X18.1

92152-1867

$4.61

92154

BOLT,6X15.6

92154-1250

$0.83

92154A

BOLT,FUEL PUMP

92154-1326

$0.81

92160

DAMPER

92160-1075

$5.71

92161

DAMPER,30X56X25

92161-1613

$4.37

92161A

DAMPER,10X28X17

92161-1614

$1.42

92161B

DAMPER,80X200X3.175

92161-1645

$14.44

92161C

DAMPER

92161-1876

$1.68

92192

TUBE,BREATHER

92192-0773

$4.81

92192A

TUBE,BREATHER,5X9X220

92192-1199

$3.64

92192B

TUBE,FUEL,8X13X137

92192-1474

$2.03
