2021 Kawasaki Mule PRO-DXT™ EPS Diesel FE Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2021 Kawasaki Mule PRO-DXT™ EPS Diesel FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

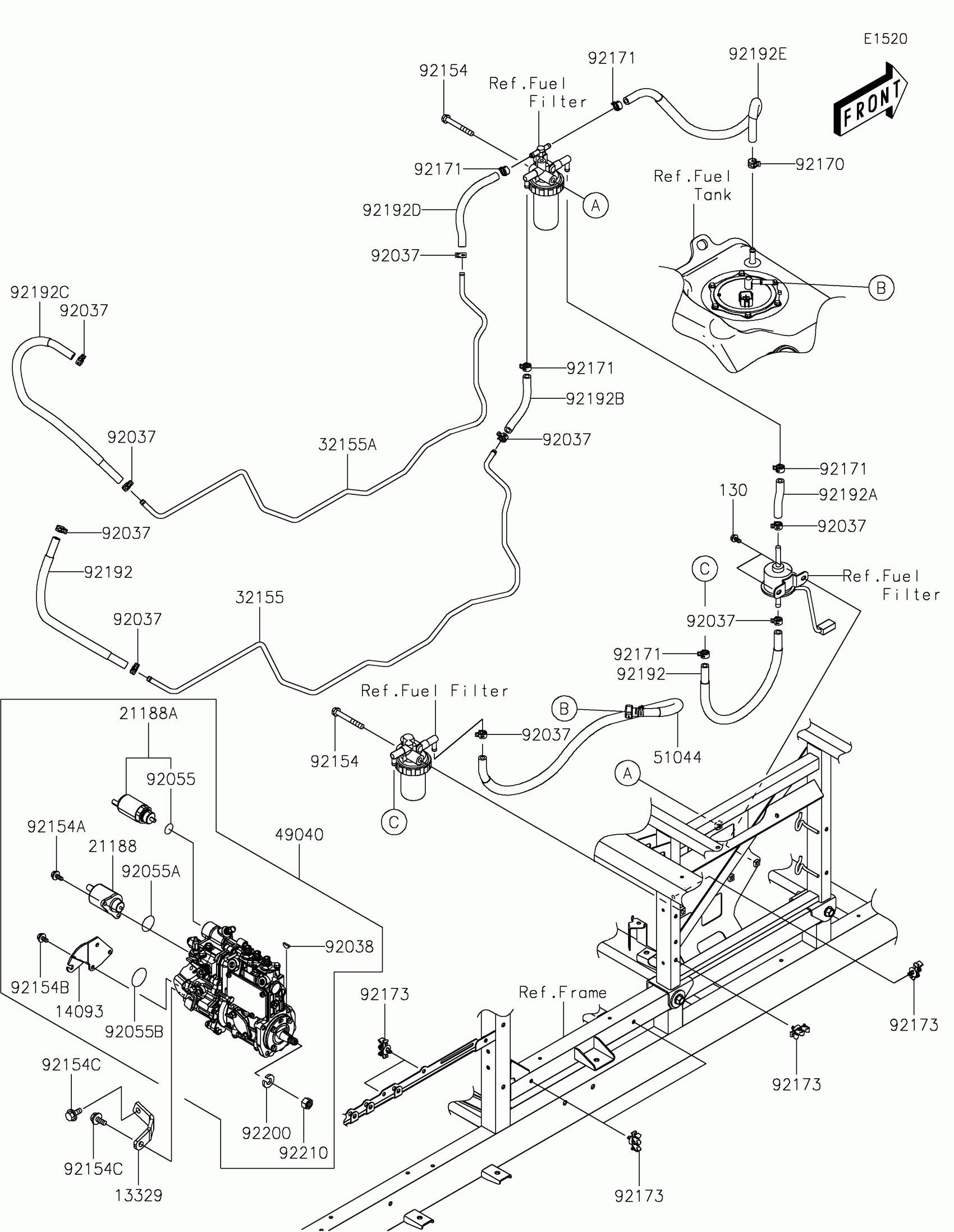

2021 Kawasaki Mule PRO-DXT™ EPS Diesel FE Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

13329

SUPPORT

13329-0001

1
Out of stock

14093

COVER,GOVERNOR CASE

14093-0448

1

$33.02

In stock

21188

SOLENOID,STOP

21188-0013

1

$205.85

In stock

21188A

1

$170.90

In stock

32155

PIPE,FEED

32155-2047

1

$66.36

In stock

32155A

PIPE,RETURN

32155-2048

1

$66.36

In stock

49040

PUMP-FUEL,INJECTION

49040-0796

1

$3,141.77

In stock

51044

TUBE-ASSY

51044-0785

1

$110.62

In stock

92037

CLAMP,HOSE CLIP

92037-1181

1

$2.68

In stock

92038

KEY,WOODRUFF

92038-0008

1

$4.22

In stock

92055

RING-O

92055-0859

1

$8.19

In stock

92055A

RING-O

92055-0860

1

$2.37

In stock

92055B

RING-O

92055-0861

1

$3.56

In stock

92154

BOLT,FLANGED,8X63

92154-1940

1

$3.19

In stock

92154A

BOLT,FLANGED,6X14

92154-1997

1

$2.05

In stock

92154B

BOLT,FLANGED,6X10

92154-2068

1

$1.71

In stock

92154C

BOLT,FLANGED,8X16

92154-2071

1

$1.71

In stock

92170

CLAMP

92170-1938

1

$2.97

In stock

92171

CLAMP

92171-0515

1

$5.56

In stock

92173

CLAMP

92173-1467

1

$2.64

In stock

92192

TUBE,7.5X13.5X390

92192-1476

1
Out of stock

92192A

TUBE,PUMP-FILTER

92192-1477

1
Out of stock

92192B

TUBE,FILER-ENGINE(FILTER SIDE)

92192-1478

1
Out of stock

92192C

TUBE,ENGINE-FILER(ENGINE SIDE)

92192-1479

1
Out of stock

92192D

TUBE,ENGINE-FILER(FILTER SIDE)

92192-1480

1
Out of stock

92192E

TUBE,FILTER-TANK

92192-1481

1
Out of stock

92200

WASHER,SPRING

92200-1810

1
Out of stock

92210

NUT,12MM

92210-1486

1
Out of stock
