2021 Kawasaki Mule Pro-DXT™ Eps Diesel Fe Fuel Filter Diagram

← All diagrams

Find the part on the Fuel Filter diagram for your 2021 Kawasaki Mule Pro-DXT™ Eps Diesel Fe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

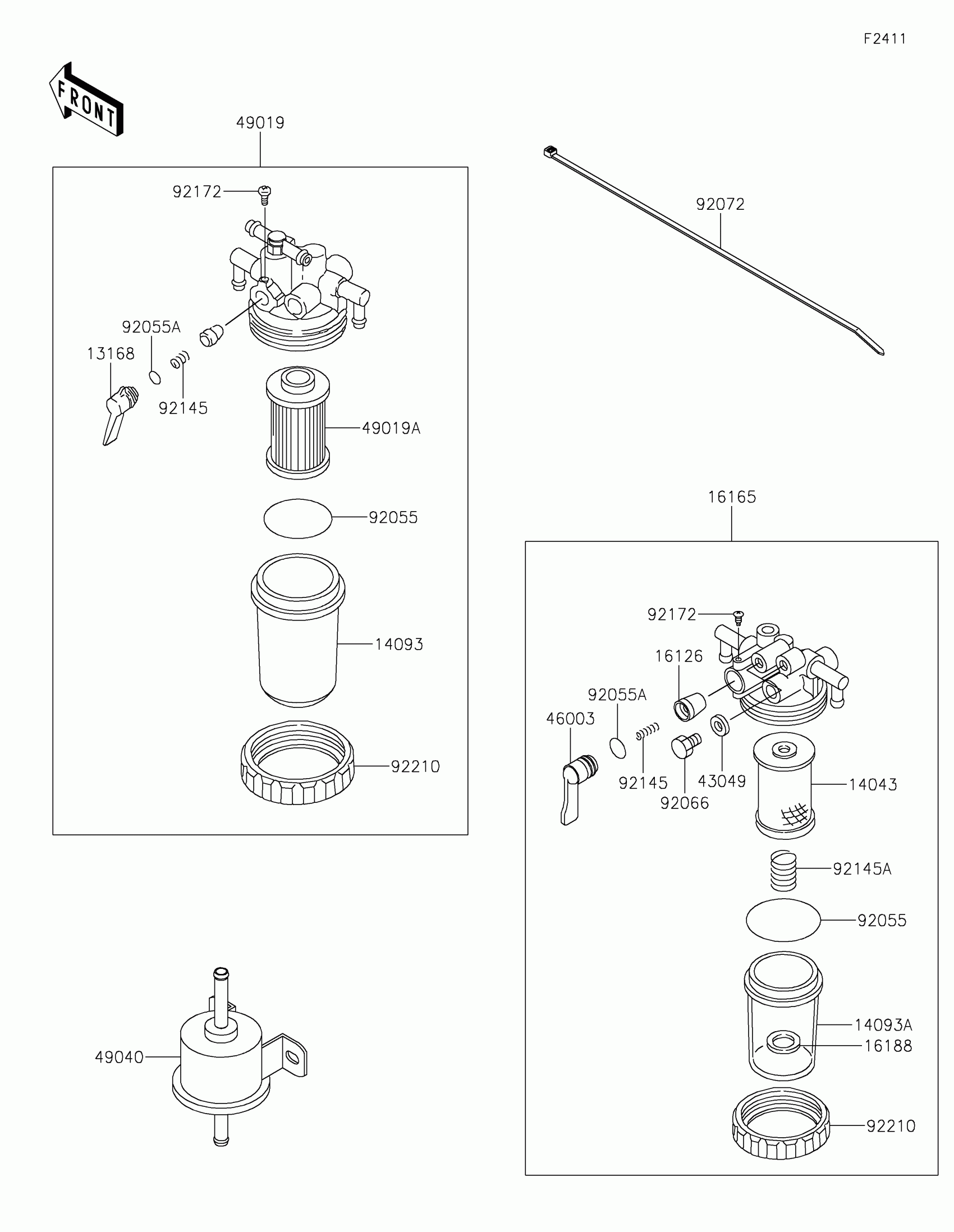

2021 Kawasaki Mule Pro-DXT™ Eps Diesel Fe Fuel Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER

13168-0845

1

$10.54

In stock

14043

FILTER

14043-0018

1

$23.68

In stock

14093

COVER

14093-0452

1

$29.59

In stock

14093A

COVER

14093-0453

1

$29.90

In stock

16126

VALVE

16126-0738

1

$14.36

In stock

16165

SEPARATOR,WATER

16165-0012

1

$130.18

In stock

16188

FLOAT

16188-0038

1

$4.39

In stock

43049

PACKING,6X1

43049-0046

1

$2.03

In stock

46003

HANDLE

46003-0665

1

$13.41

In stock

49019

FILTER-FUEL

49019-0020

1

$108.99

In stock

49019A

FILTER-FUEL,ELEMENT

49019-0026

1

$10.38

In stock

49040

PUMP-FUEL

49040-0747

1

$244.11

In stock

92055

RING-O

92055-0864

1

$4.79

In stock

92055A

RING-O

92055-0865

1

$2.37

In stock

92066

PLUG

92066-0856

1

$5.25

In stock

92072

BAND,L=292.1

92072-3509

1
Out of stock

92145

SPRING,VALVE

92145-1718

1

$3.68

In stock

92145A

SPRING

92145-1719

1

$4.22

In stock

92172

SCREW

92172-0992

1

$4.42

In stock

92210

NUT,FILTER

92210-1494

1
Out of stock
