2016 Kawasaki Mule PRO-DXT™ Diesel AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2016 Kawasaki Mule PRO-DXT™ Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

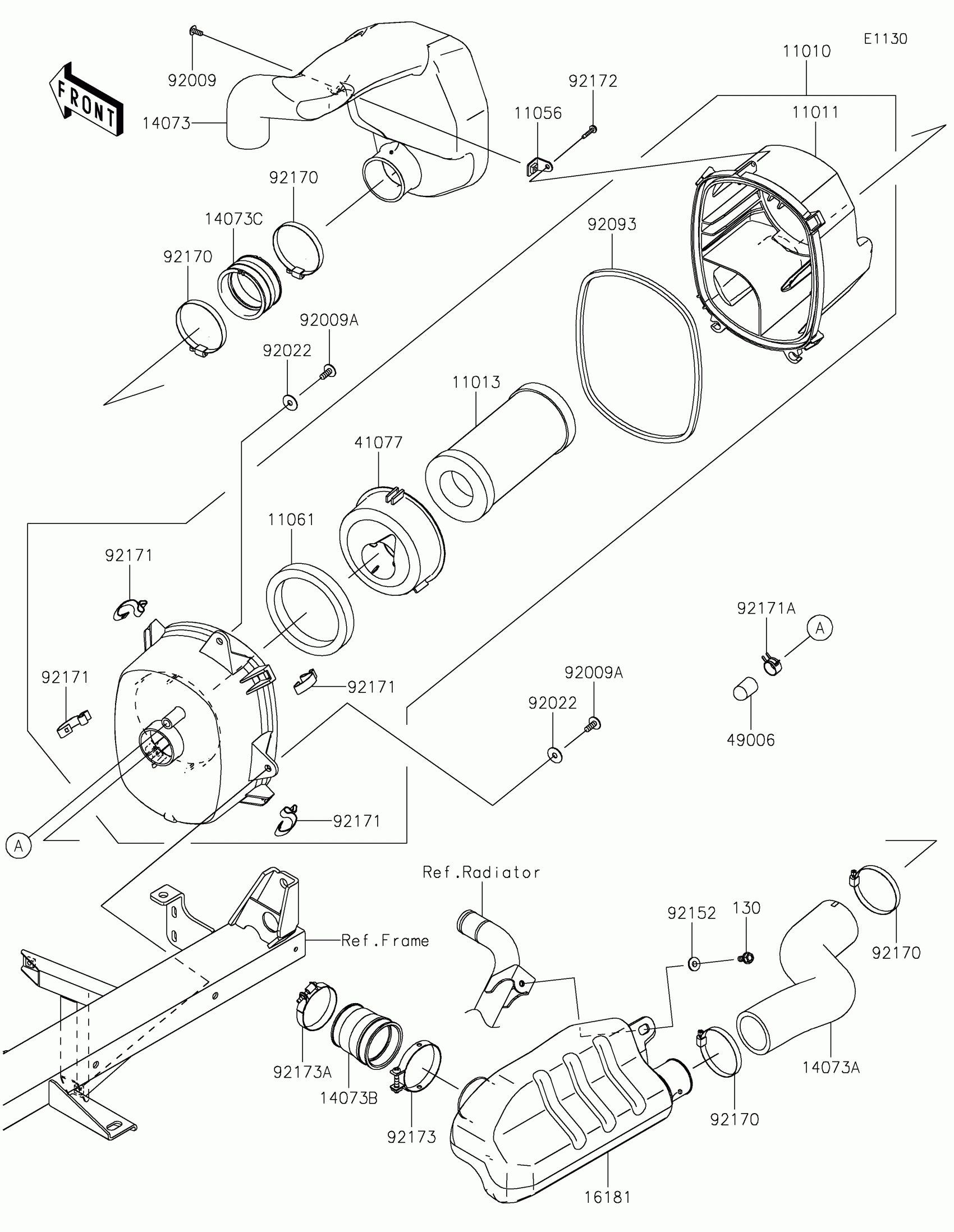

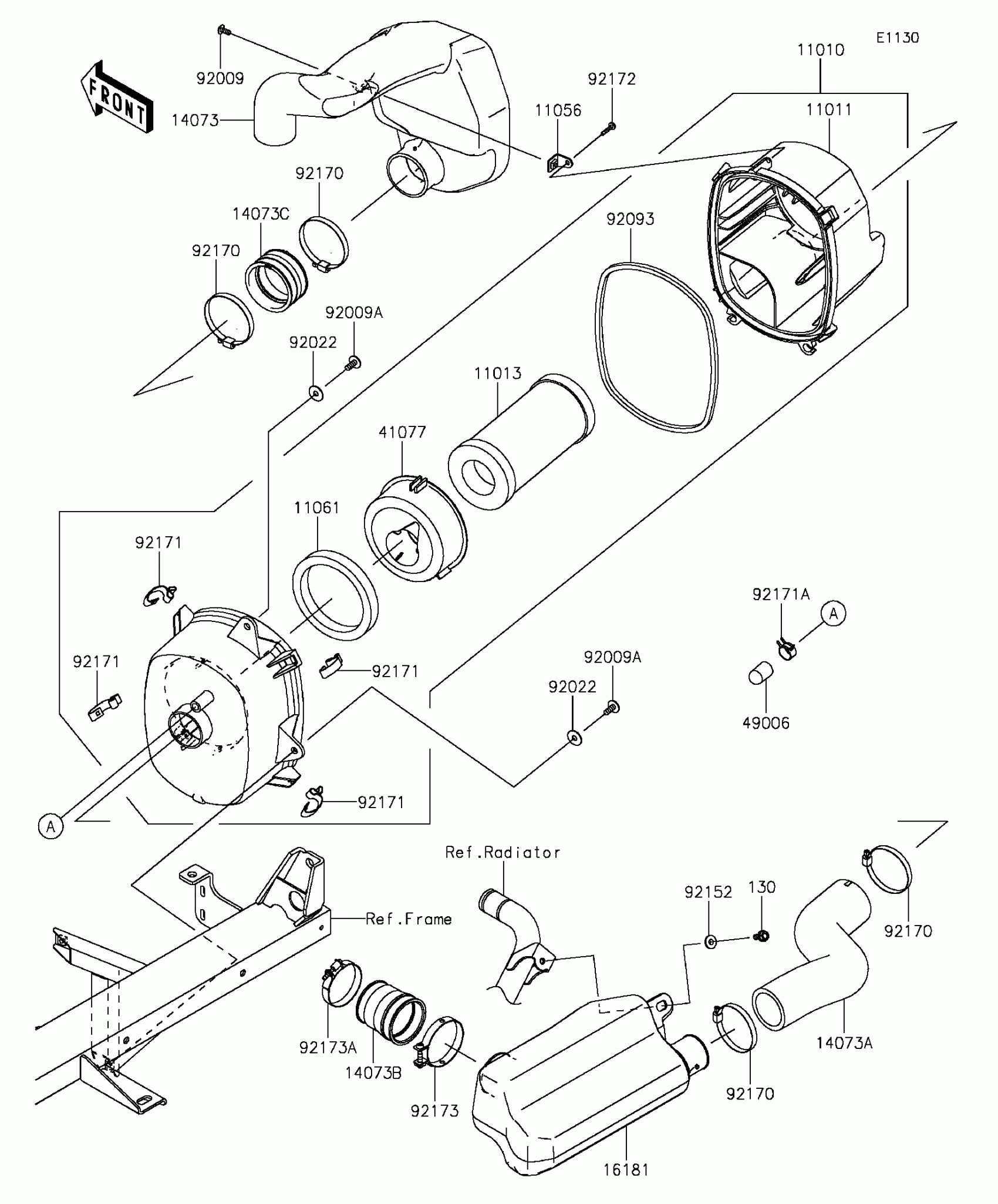

2016 Kawasaki Mule PRO-DXT™ Diesel AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-0808

1
Out of stock

11011

CASE-AIR FILTER,UPP

11011-0813

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1290

1
Out of stock

11056

BRACKET,AIR FILTER

11056-3734

1
Out of stock

11061

GASKET,ADAPTER

11061-0961

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

14073

DUCT,INTAKE

14073-0815

1

$37.48

In stock

14073A

1

$29.61

In stock

14073B

DUCT,FUNNEL

14073-0817

1

$9.29

In stock

14073C

DUCT,JOINT

14073-1775

1

$3.46

In stock

16181

TANK-RESONATOR

16181-0017

1
Out of stock

41077

ADAPTER,ELEMENT

41077-0719

1
Out of stock

49006

BOOT

49006-0555

1
Out of stock

92009

SCREW,5X12

92009-1154

1
Out of stock

92009A

SCREW,6X16

92009-1621

1
Out of stock

92022

WASHER,PLAIN,6.5X20X1

92022-165

1
Out of stock

92093

SEAL,AIR FILTER

92093-0607

1
Out of stock

92152

COLLAR,6.5X10X5.6

92152-0445

1
Out of stock

92170

CLAMP

92170-1764

1

$9.09

In stock

92171

CLAMP

92171-0225

1

$1.68

In stock

92171A

CLAMP

92171-0533

1

$2.71

In stock

92172

SCREW,TAPPING,5X20

92172-0009

1
Out of stock

92173

CLAMP

92173-1536

1
Out of stock

92173A

CLAMP

92173-1537

1
Out of stock
