2016 Kawasaki Mule PRO-DXT™ Diesel Fuel Injection Diagram

← All diagrams

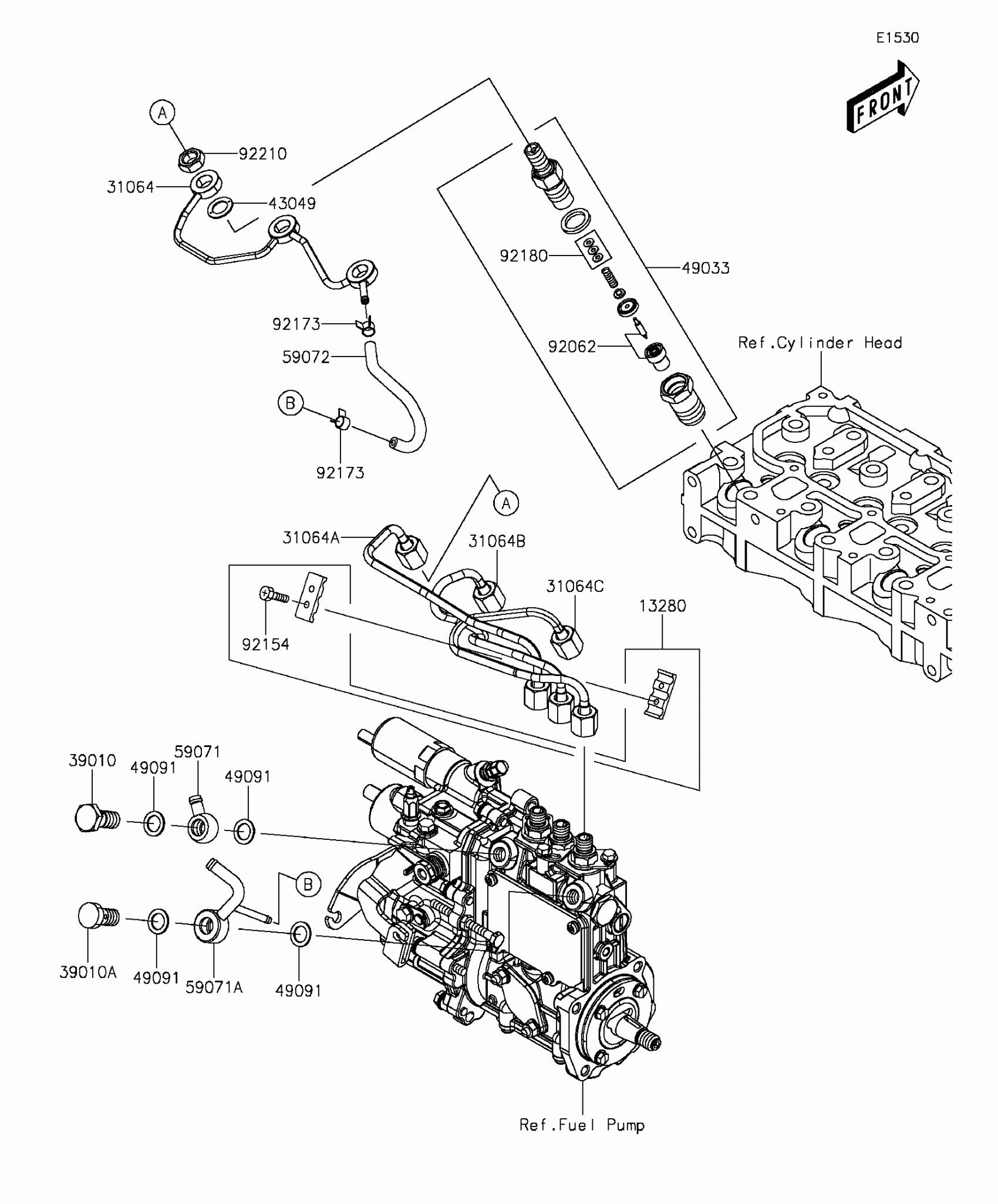

Find the part on the Fuel Injection diagram for your 2016 Kawasaki Mule PRO-DXT™ Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule PRO-DXT™ Diesel Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13280

HOLDER

13280-0862

1

$7.71

In stock

31064

PIPE-COMP,RETURN

31064-0681

1
Out of stock

31064A

PIPE-COMP,INJECTION,NO.1

31064-0682

1
Out of stock

31064B

PIPE-COMP,INJECTION,NO.2

31064-0683

1
Out of stock

31064C

PIPE-COMP,INJECTION,NO.3

31064-0684

1
Out of stock

39010

BOLT-EYE,PIPE JOINT

39010-0001

1

$15.98

In stock

39010A

BOLT-EYE,PIPE JOINT

39010-0002

1

$18.02

In stock

43049

PACKING

43049-0045

1
Out of stock

49033

NOZZLE-INJECTION

49033-0039

1
Out of stock

49091

WASHER-SEAL

49091-0007

1
Out of stock

59071

JOINT

59071-0738

1
Out of stock

59071A

JOINT,OVER FLOW

59071-0739

1
Out of stock

59072

JOINT-EYE

59072-0004

1
Out of stock

92062

NOZZLE

92062-0038

1
Out of stock

92154

BOLT,4X14

92154-2115

1
Out of stock

92173

CLAMP

92173-1551

1
Out of stock

92180

SHIM,SET

92180-0971

1
Out of stock

92210

NUT

92210-1469

1
Out of stock
