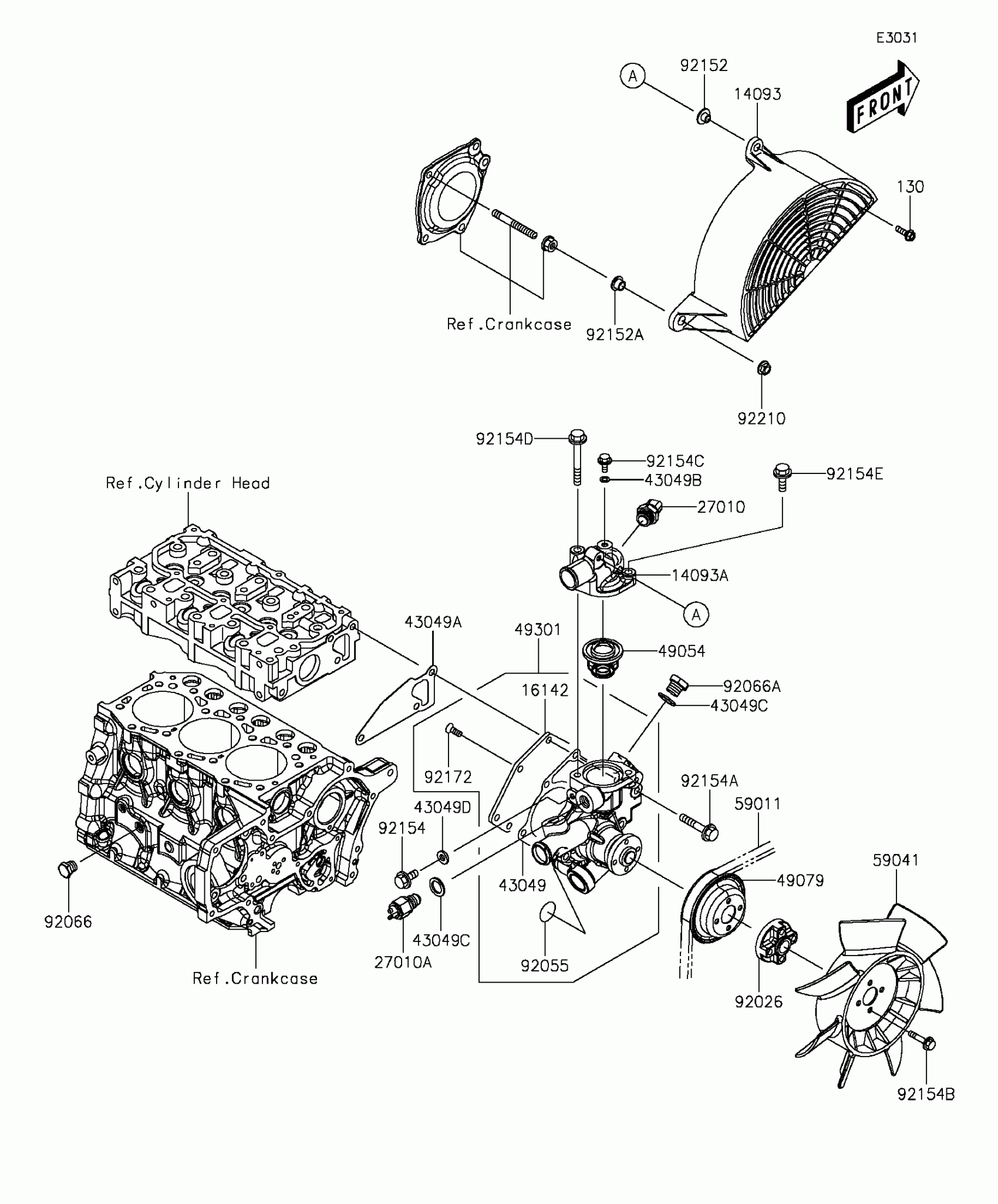

Find the part on the Water Pump diagram for your 2016 Kawasaki Mule PRO-DXT™ Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule PRO-DXT™ Diesel Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

14093

COVER,FAN

14093-0297

1
Out of stock

14093A

COVER,THERMOSTAT

14093-0446

1
Out of stock

16142

COVER-PUMP

16142-0736

1
Out of stock

27010

SWITCH,THERMOSTAT

27010-0839

1
Out of stock

27010A

SWITCH,THERMO

27010-0840

1
Out of stock

43049

PACKING,WATER PUMP

43049-0040

1
Out of stock

43049A

PACKING,WATER PUMP

43049-0041

1
Out of stock

43049B

PACKING,6X1

43049-0042

1
Out of stock

43049C

PACKING

43049-0043

1
Out of stock

43049D

PACKING,8X1

43049-0047

1
Out of stock

49054

THERMOSTAT

49054-0008

1
Out of stock

49079

PULLEY-BELT

49079-0027

1
Out of stock

49301

PUMP-ASSY-WATER

49301-0002

1
Out of stock

59011

BELT,A35

59011-0045

1
Out of stock

59041

FAN,COOLING

59041-0015

1
Out of stock

92026

SPACER

92026-0820

1
Out of stock

92055

RING-O

92055-0858

1
Out of stock

92066

PLUG,DRAIN

92066-0853

1
Out of stock

92066A

PLUG

92066-0854

1
Out of stock

92152

COLLAR

92152-0181

1
Out of stock

92152A

COLLAR

92152-0613

1
Out of stock

92154

BOLT,FLANGED,8X12

92154-1999

1
Out of stock

92154A

BOLT,FLANGED,8X45

92154-2000

1
Out of stock

92154B

BOLT,FLANGED,6X30

92154-2067

1
Out of stock

92154C

BOLT,FLANGED,6X10

92154-2068

1
Out of stock

92154D

BOLT,FLANGED,8X65

92154-2070

1
Out of stock

92154E

BOLT,FLANGED,8X28

92154-2110

1
Out of stock

92172

SCREW,6X12

92172-0987

1
Out of stock

92210

NUT,FLANGED,8MM

92210-0555

1
Out of stock
