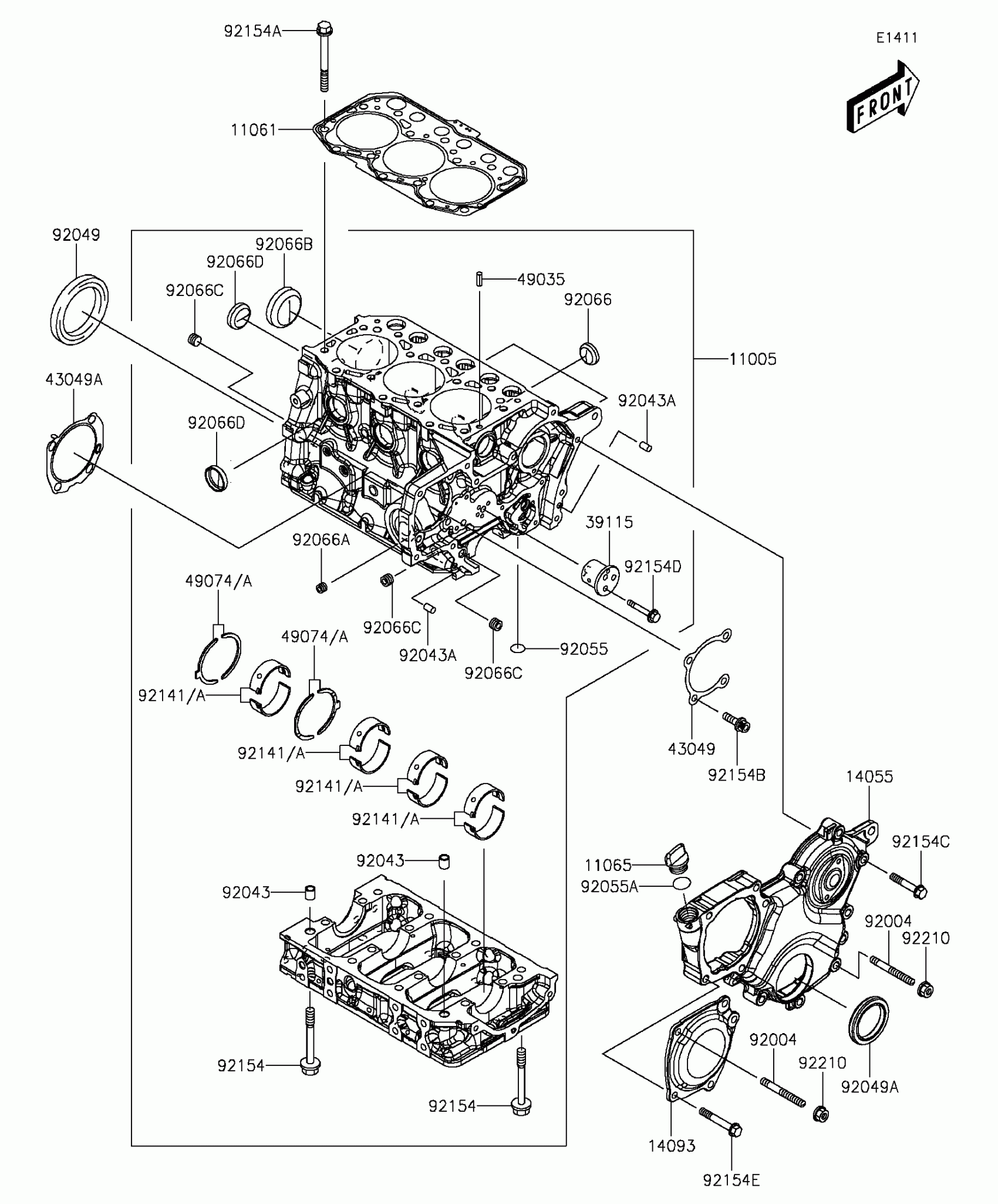

Kawasaki MULE PRO-DX™ EPS DIESEL Crankcase Diagram

#

Description
Price

11005

CYLINDER-ENGINE

11005-0664

$3,343.96

11061

GASKET,HEAD

11061-1192

$88.24

11065

CAP

11065-0936

$2.66

14055

CASE-GEAR

14055-0622

$121.60

14093

COVER

14093-0439

$24.81

39115

SHAFT-IDLER

39115-0025

$48.15

43049

PACKING

43049-0035

$3.15

43049A

PACKING

43049-0036

$6.30

49035

PIN-SPRING

49035-0016

$2.05

49074

PLATE-THRUST

49074-0003

$76.25

49074A

PLATE-THRUST,O/S,0.25

49074-0005

$86.15

92004

STUD,8X60

92004-0744

$5.58

92043

PIN,KNOCK

92043-0883

$12.90

92043A

PIN,6X10

92043-0884

$4.56

92049

SEAL-OIL

92049-0787

$40.22

92049A

SEAL-OIL

92049-0788

$32.95

92055

RING-O

92055-0854

$2.68

92055A

RING-O

92055-0855

$2.37

92066

PLUG

92066-0846

$2.03

92066A

PLUG

92066-0847

$7.42

92066B

PLUG

92066-0849

$39.85

92066C

PLUG

92066-0850

$4.51

92066D

PLUG

92066-0860

$16.17

92141

BEARING-PLANE,STD

92141-0004

$66.83

92141A

BEARING-PLANE,U/S,0.25

92141-0005

$81.16

92154

BOLT,FLANGED

92154-1981

$3.50

92154A

BOLT,FLANGED

92154-1982

$5.35

92154B

BOLT,SOCKET

92154-1983

$2.05

92154C

BOLT,FLANGED,8X35

92154-1984

$2.37

92154D

BOLT,FLANGED,6X40

92154-1995

$2.05

92154E

BOLT,FLANGED,8X45

92154-2000

$2.37

92210

NUT,8MM

92210-1473

$1.47
