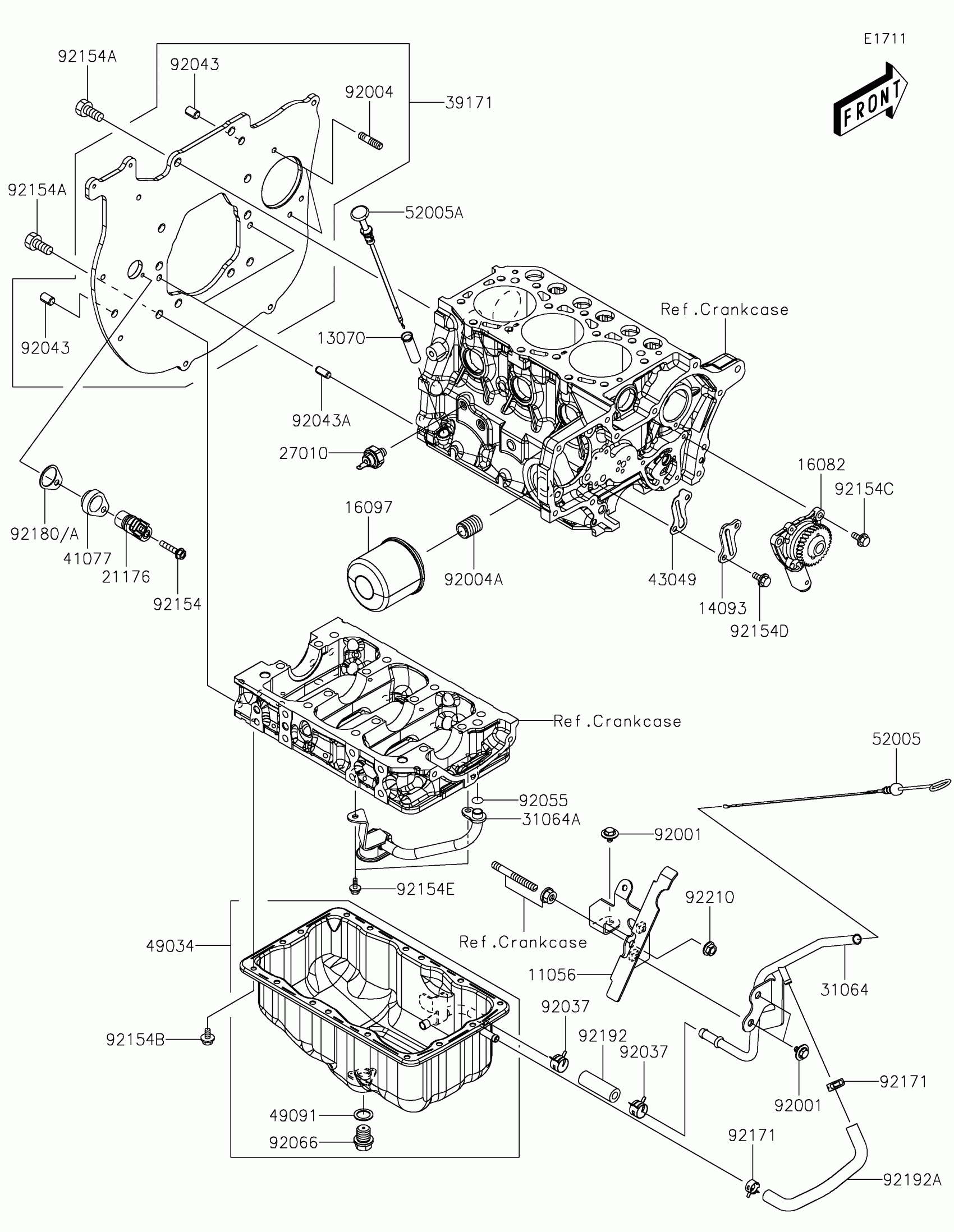

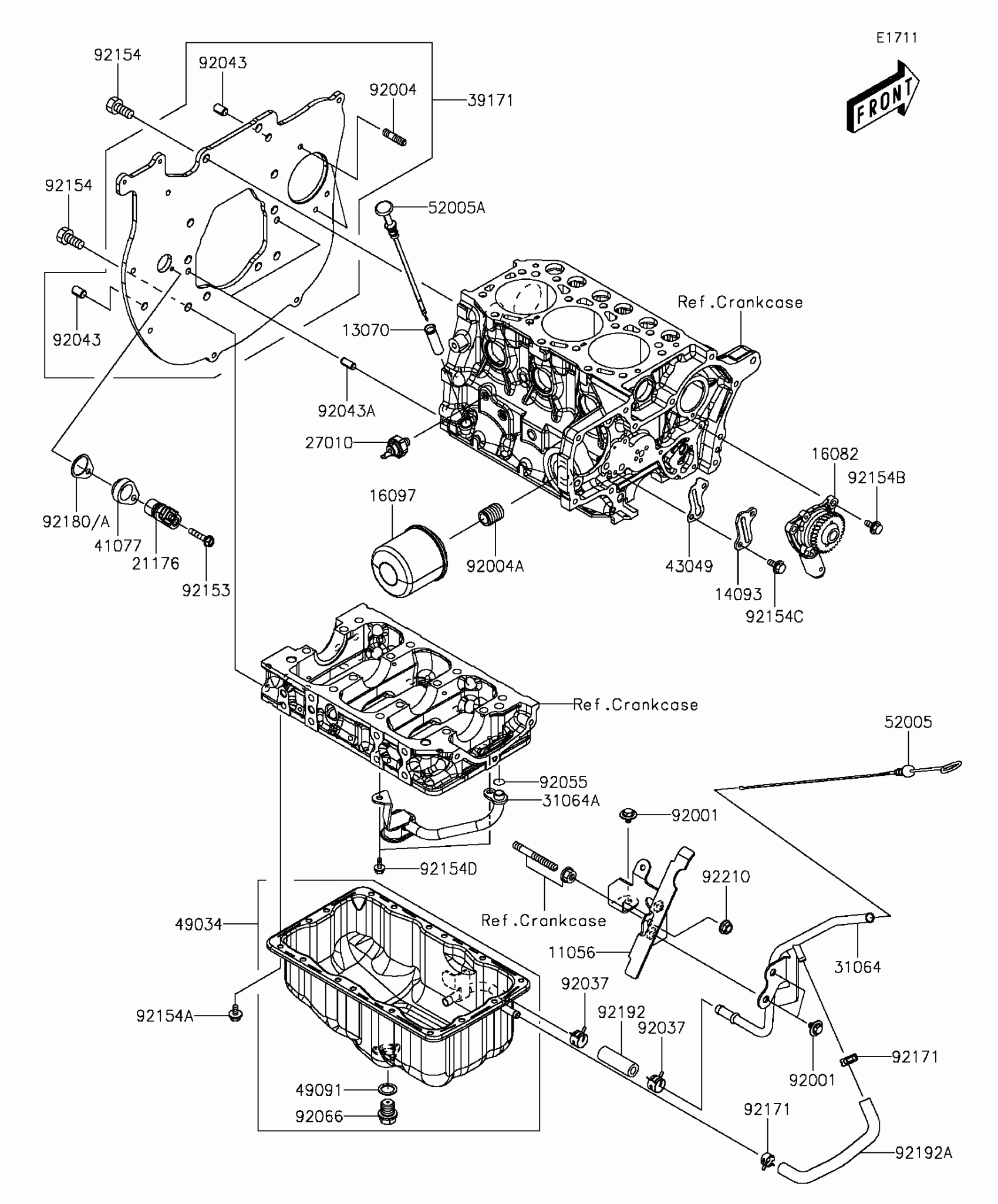

Kawasaki MULE PRO-DX™ EPS DIESEL Oil Pan/Oil Filter Diagram

#

Description
Price

11056

BRACKET,LEVEL GAUGE PIPE

11056-7693

$8.83

13070

GUIDE,OIL LEVEL GAUGE

13070-0830

$57.05

14093

COVER

14093-0445

$10.75

16082

PUMP-ASSY-OIL

16082-0763

$348.69

16097

FILTER-ASSY-OIL

16097-0012

$12.93

21176

SENSOR,ROTATION

21176-0767

$66.76

27010

SWITCH,OIL PRESSURE

27010-0838

$34.34

31064

PIPE-COMP,LEVEL GAUGE

31064-0677

$32.26

31064A

PIPE-COMP,OIL

31064-0679

$42.95

39171

FLANGE-COMP

39171-0003

$384.33

41077

ADAPTER,ROTATION SENSOR

41077-0722

$5.66

43049

PACKING

43049-0039

$2.66

49034

PAN-OIL

49034-0566

$600.82

49091

WASHER-SEAL

49091-0006

$3.30

52005

GAUGE,OIL LEVEL

52005-0754

$50.30

52005A

GAUGE,OIL LEVEL

52005-0759

$55.71

92001

BOLT,FLANGED,6X10

92001-1034

$8.16

92004

STUD,8X25

92004-0745

$4.22

92004A

STUD

92004-0749

$17.85

92037

CLAMP

92037-1678

$9.80

92043

PIN,10X16

92043-0885

$11.20

92043A

PIN,8X16

92043-0886

$2.68

92055

RING-O

92055-0857

$2.68

92066

PLUG,DRAIN

92066-0851

$7.42

92153

BOLT,FLANGED,6X30

92153-1425

$1.81

92154

BOLT,10X20

92154-1985

$2.37

92154A

BOLT,TORX,6X10

92154-1986

$2.37

92154B

BOLT,FLANGED,6X14

92154-1997

$2.05

92154C

BOLT,FLANGED,6X12

92154-1998

$1.71

92154D

BOLT,FLANGED,6X10

92154-2068

$1.71

92171

CLAMP,CLIP,12.5MM

92171-0372

$2.71

92180

SHIM,T=1.0

92180-0968

$7.31

92180A

SHIM,T=0.5

92180-0969

$5.89

92192

TUBE,9X17.5X52

92192-1482

$16.83

92192A

TUBE,PIPE COMP-OIL PAN

92192-1501

$40.53

92210

NUT,FLANGED,8MM

92210-0555

$1.71
