2025 Kawasaki Mule PRO-DX™ EPS Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2025 Kawasaki Mule PRO-DX™ EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

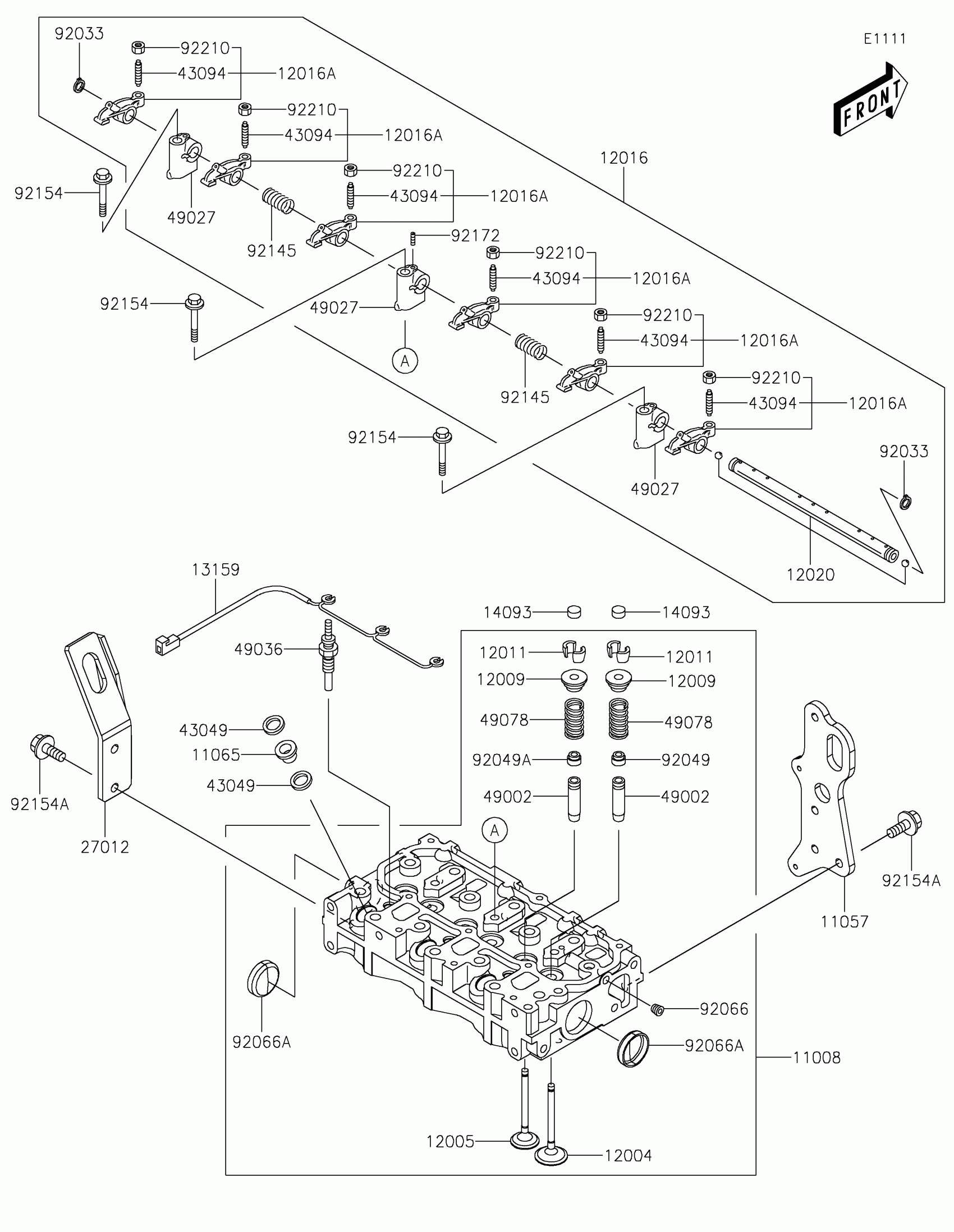

2025 Kawasaki Mule PRO-DX™ EPS Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11008

HEAD-COMP-CYLINDER

11008-1531

1
Out of stock

11057

BRACKET,FRAME

11057-1247

1
Out of stock

11065

CAP,NOZZLE

11065-0942

1
Out of stock

12004

VALVE-INTAKE

12004-0739

1
Out of stock

12005

VALVE-EXHAUST

12005-0759

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-0029

1
Out of stock

12011

COLLET

12011-0004

1
Out of stock

12016

ARM-ROCKER

12016-0044

1
Out of stock

12016A

ARM-ROCKER

12016-0045

1
Out of stock

12020

SHAFT-ROCKER

12020-0018

1
Out of stock

13159

CONNECTOR,PLUG-GLOW

13159-0019

1
Out of stock

14093

COVER,VALVE

14093-0440

1
Out of stock

27012

HOOK

27012-0819

1
Out of stock

43049

PACKING,NOZZLE

43049-0037

1
Out of stock

43094

ADJUSTER,VALVE

43094-0006

1
Out of stock

49002

GUIDE-VALVE

49002-0032

1
Out of stock

49027

HOLDER-ROCKER

49027-0001

1
Out of stock

49036

PLUG-GLOW

49036-0002

1
Out of stock

49078

SPRING-ENGINE VALVE

49078-0731

1
Out of stock

92033

RING-SNAP

92033-0773

1
Out of stock

92049

SEAL-OIL,INTAKE

92049-0789

1
Out of stock

92049A

SEAL-OIL,EXHAUST

92049-0790

1
Out of stock

92066

PLUG

92066-0847

1
Out of stock

92066A

PLUG

92066-0852

1
Out of stock

92145

SPRING

92145-1711

1
Out of stock

92154

BOLT,FLANGED,8X40

92154-1987

1
Out of stock

92154A

BOLT,FLANGED,8X16

92154-2071

1
Out of stock

92172

SCREW,5X16

92172-0984

1
Out of stock

92210

NUT,8MM

92210-1468

1
Out of stock
