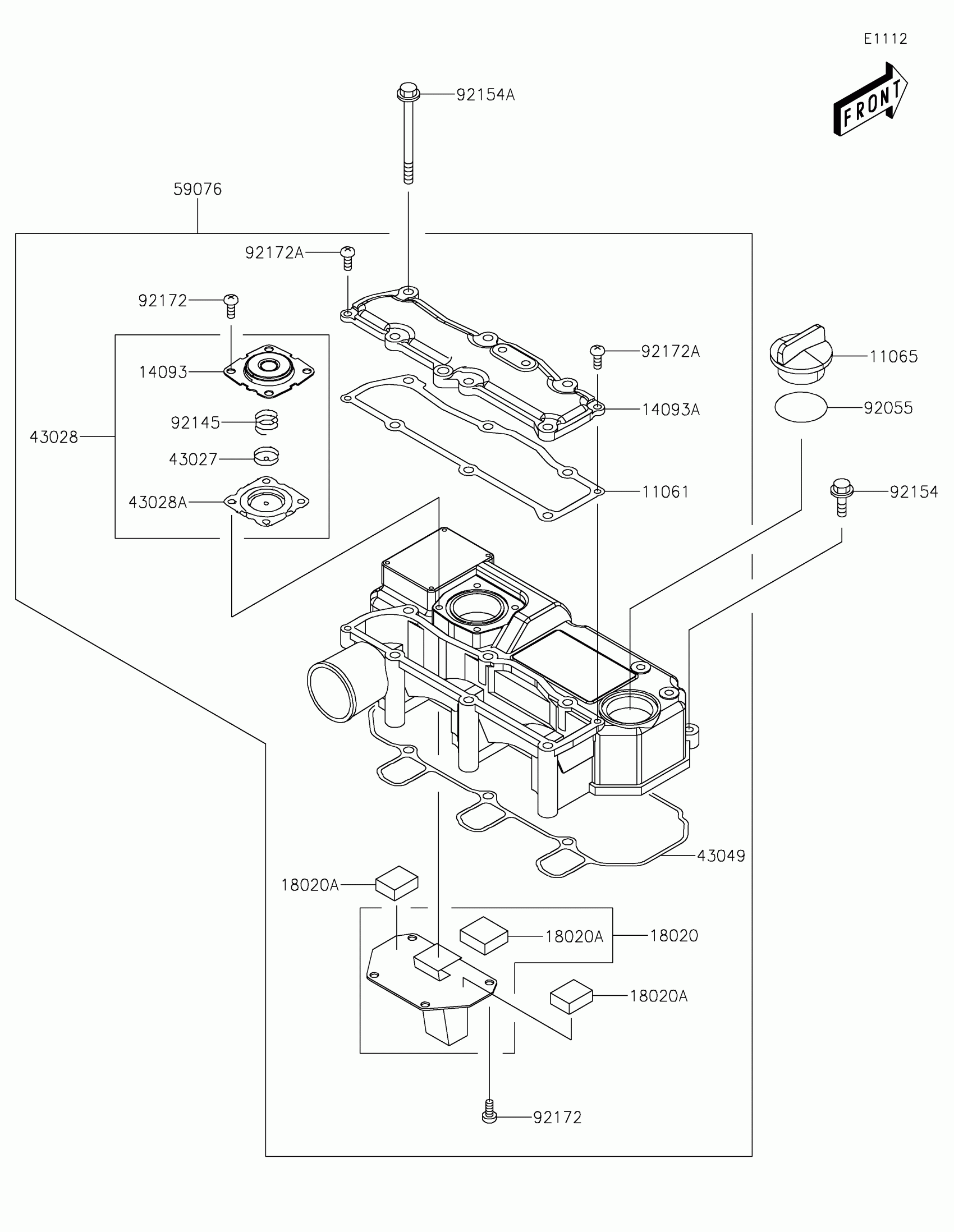

Kawasaki MULE PRO-DX™ EPS Cylinder Head Cover Diagram

Description

Price

11061

GASKET,INTAKE MANIFOLD COVER

11061-1193

$40.93

11065

CAP,FILLER

11065-0943

$13.66

14093

COVER,DIAPHRAGM

14093-0442

$35.35

14093A

COVER,INTAKE MANIFOLD

14093-0444

$118.06

18020

BAFFLE,PLATE

18020-0723

$149.98

18020A

BAFFLE,BREATHER

18020-0724

$9.20

43027

PLATE-DIAPHRAGM

43027-0009

$8.03

43028

DIAPHRAGM,ASSY

43028-0019

$73.02

43028A

DIAPHRAGM

43028-0020

$22.81

43049

PACKING,INTAKE MANIFOLD

43049-0038

$49.34

59076

MANIFOLD-INTAKE

59076-0014

$275.06

92055

RING-O

92055-0856

$3.59

92145

SPRING

92145-1712

$3.53

92154

BOLT,FLANGED,6X20

92154-1988

$1.71

92154A

BOLT,FLANGED,6X75

92154-1989

$2.04

92172

SCREW,5X10

92172-0985

$1.71

92172A

SCREW,5X16

92172-0986

$1.71
