Partiron

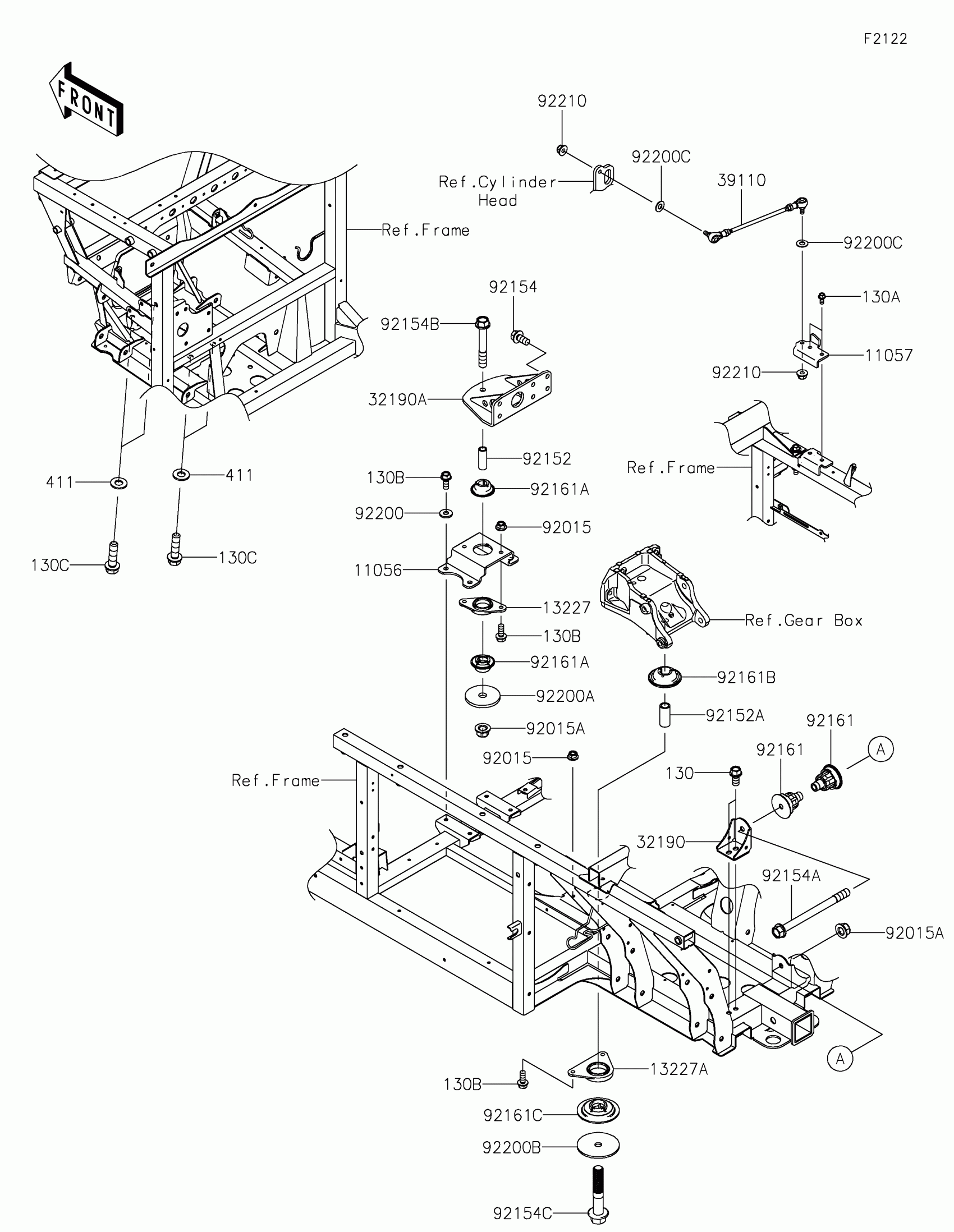

Kawasaki MULE PRO-DX™ EPS Engine Mount Diagram

#

Description
Price

11056

BRACKET

11056-7475

$17.61

11057

BRACKET,TORQUE ROD

11057-2696

$8.97

13227

HOUSING

13227-0031

$29.81

13227A

HOUSING

13227-0032

$34.44

32190

BRACKET-ENGINE

32190-0662

$17.08

32190A

BRACKET-ENGINE,FR

32190-0701

$69.49

39110

ROD-ASSY-TIE

39110-0050

$124.87

92015

NUT,LOCK,FLANGED,8MM

92015-1397

$3.29

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92152

COLLAR,13X19.1X54

92152-1802

$9.86

92152A

COLLAR,17X23.8X54.5

92152-2127

$12.00

92154

BOLT,FLANGED,10X20

92154-1321

$1.46

92154A

BOLT,FLANGED,12X150

92154-1322

$13.17

92154B

BOLT,FLANGED,12X80

92154-1419

$7.25

92154C

BOLT,FLANGED,16X86

92154-1763

$18.17

92161

DAMPER

92161-1616

$36.13

92161A

DAMPER

92161-1617

$20.58

92161B

DAMPER

92161-1618

$35.65

92161C

DAMPER

92161-1619

$57.52

92200

WASHER,8.2X20.0X2.5

92200-0205

$2.68

92200A

WASHER,12.5X55X4.76

92200-0913

$3.17

92200B

WASHER,16.5X100X4.76

92200-1747

$6.73

92200C

WASHER,8.5X18X1

92200-2284

$8.31

92210

NUT,FLANGED,LOCK,8MM

92210-0493

$5.80

130

BOLT-FLANGED,10X20

130BA1020

Unavailable

130A

BOLT-FLANGED,8X18

130CA0818

$1.81

130B

BOLT-FLANGED,8X20

130CA0820

$1.27

130C

BOLT-FLANGED,12X35

130CA1235

$2.75

411

WASHER-PLAIN,12MM

411AA1200

$0.81
