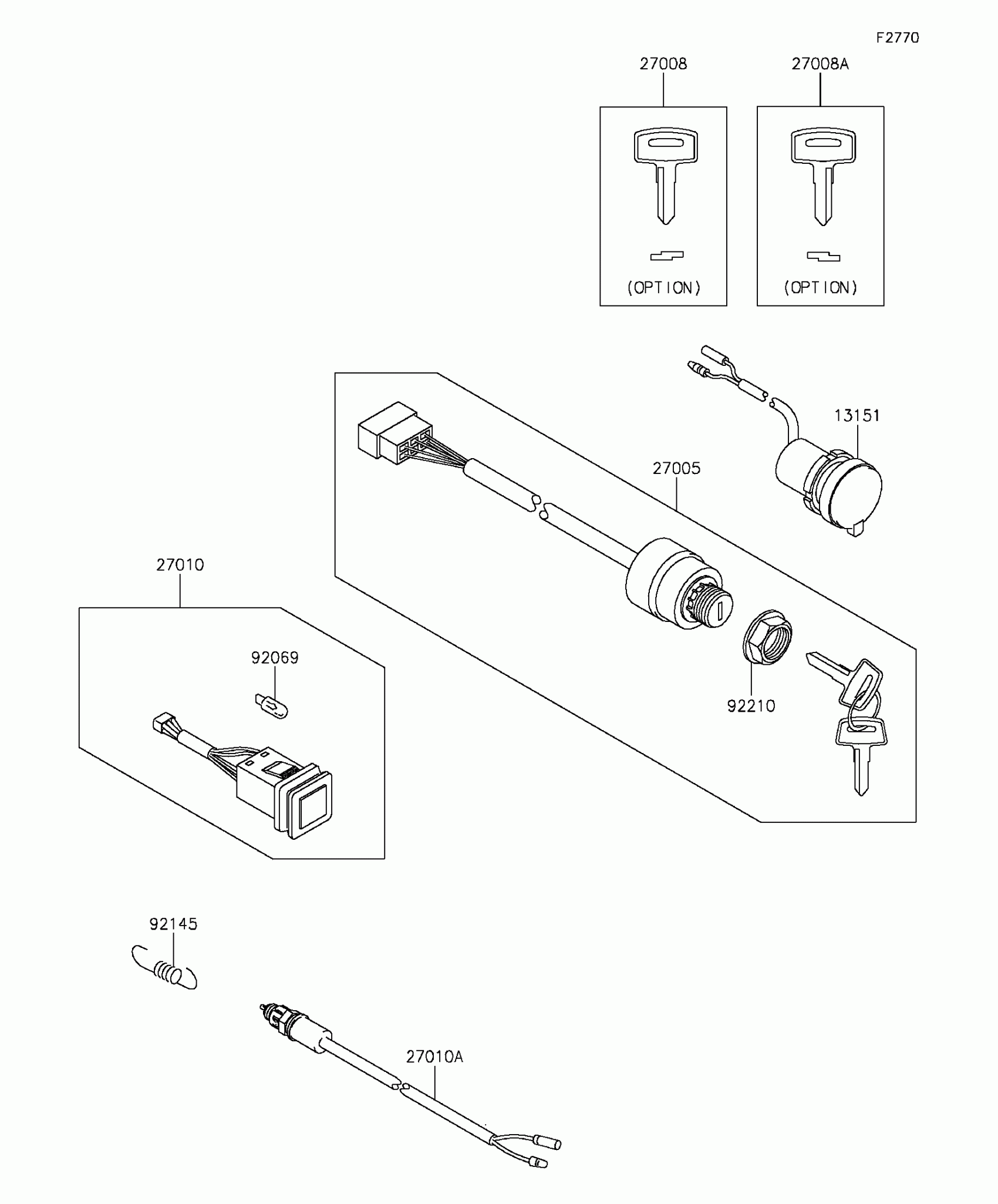

Find the part on the Ignition Switch diagram for your 2016 Kawasaki Mule™ 610 4x4 XC SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule™ 610 4x4 XC SE Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13151

SWITCH-COMP,D.C.TERMINAL

13151-0003

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-0011

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1153

1
Out of stock

27008A

KEY-LOCK,BLANK

27008-1157

1
Out of stock

27010

SWITCH,HEAD LAMP

27010-0105

1
Out of stock

27010A

SWITCH,REAR BRAKE

27010-1475

1
Out of stock

92069

BULB,12V 1.7W

92069-0036

1
Out of stock

92145

SPRING,REAR BRAKE SWITCH

92145-7508

1
Out of stock

92210

NUT,IGNITION SWITCH

92210-1264

1
Out of stock
