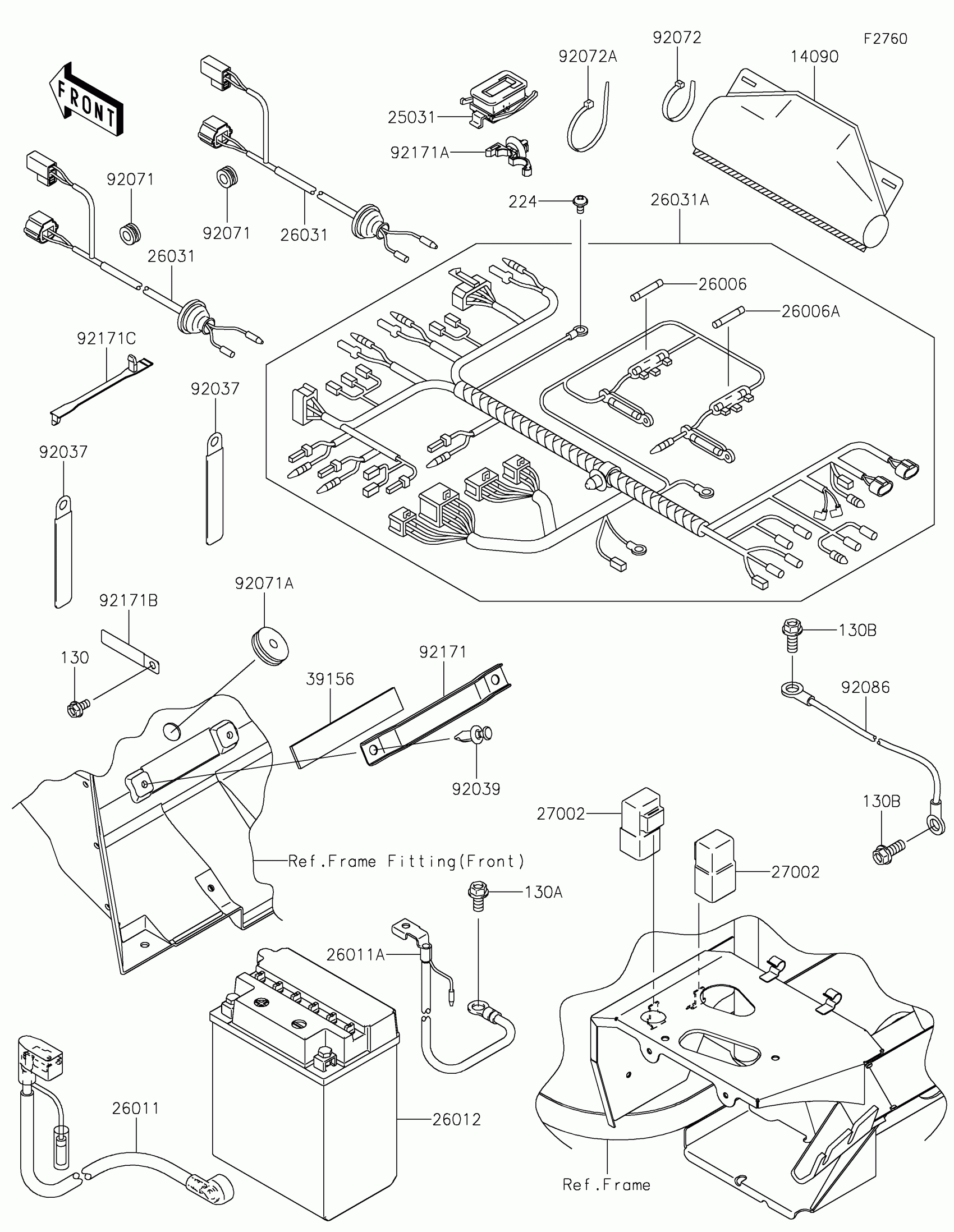

Kawasaki MULE™ 610 4x4 XC SE Chassis Electrical Equipment Diagram

Description

Price

14090

COVER,COUPLER

14090-1331

$8.31

25031

METER-ASSY,HOURS

25031-0637

$101.97

26006

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$3.89

26006A

FUSE,30A,L=32

26006-1065

Unavailable

26011

WIRE-LEAD,BATTERY(+)

26011-0048

$67.68

26011A

WIRE-LEAD,BATTERY(-)

26011-0738

$47.49

26012

BATTERY,YB14A-A2,12V 14AH

26012-1446

$102.11

26031

HARNESS,HEAD LAMP

26031-0155

$48.13

26031A

HARNESS,MAIN

26031-0718

$224.32

27002

RELAY-ASSY

27002-1088

$37.25

39156

PAD

39156-0063

$3.92

92037

CLAMP,HARNESS,L=100

92037-1636

$7.56

92039

RIVET

92039-1229

$0.80

92071

GROMMET

92071-1128

$4.78

92071A

GROMMET

92071-1136

$7.29

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=188

92072-1239

$1.30

92086

WIRE

92086-1054

$24.59

92171

CLAMP

92171-0301

$4.20

92171A

CLAMP

92171-0453

$3.12

92171B

CLAMP,L=60

92171-0652

$1.85

92171C

CLAMP

92171-1365

$3.76

130

BOLT-FLANGED,6X12

130AA0612

$0.63

130A

BOLT-FLANGED,8X16

130BA0816

$0.89

130B

BOLT-FLANGED,8X20

130BB0820

$0.71

224

SCREW-PAN-WP-CROS,5X8

224AA0508

$0.63
