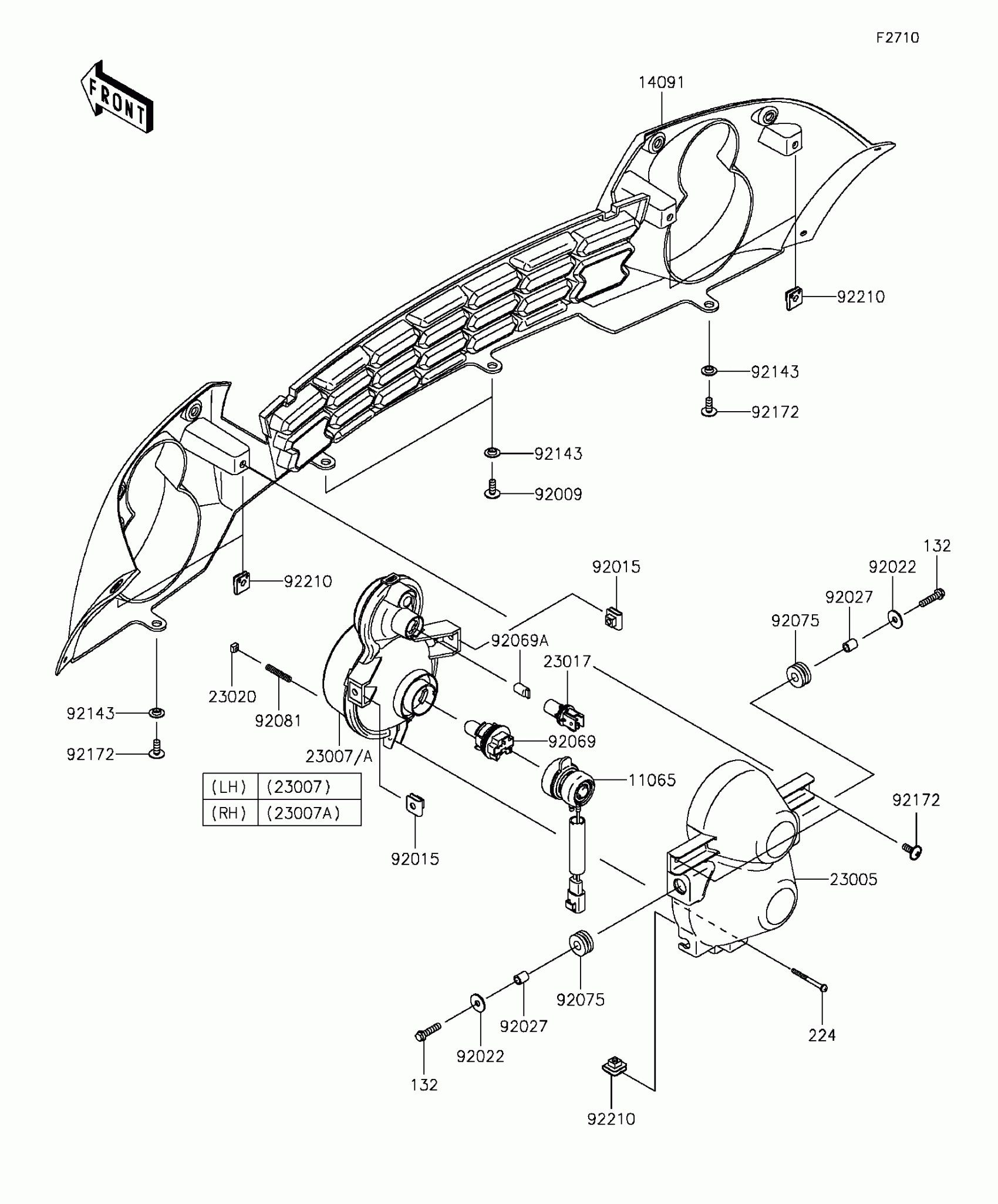

Kawasaki MULE™ 610 4x4 XC SE Headlight(s) Diagram

Description

Price

11065

CAP,HEAD LAMP

11065-0104

$9.17

14091

COVER,FRONT GRILLE,F.BLACK

14091-0342-6Z

$91.27

23005

BODY-COMP-HEAD LAMP

23005-0005

$22.95

23007

LENS-COMP,HEAD LAMP,LH

23007-0047

$79.47

23007A

LENS-COMP,HEAD LAMP,RH

23007-0048

$80.64

23017

SOCKET,HEAD LAMP

23017-0002

$5.92

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,6MM

92015-1094

$6.55

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,12V 30/30W

92069-0012

$10.24

92069A

BULB,12V 5W

92069-1016

$4.88

92075

DAMPER,10X24X12

92075-1690

$3.81

92081

SPRING,FOCUS ADJUST

92081-1896

$3.99

92143

COLLAR

92143-1087

$2.98

92172

SCREW,TAPPING,6X20

92172-0488

$2.11

92210

NUT,LEAF SPRING,6MM

92210-0624

$1.66

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

224

SCREW-PAN-WP-CROS,4X45

224AA0445

$1.33
