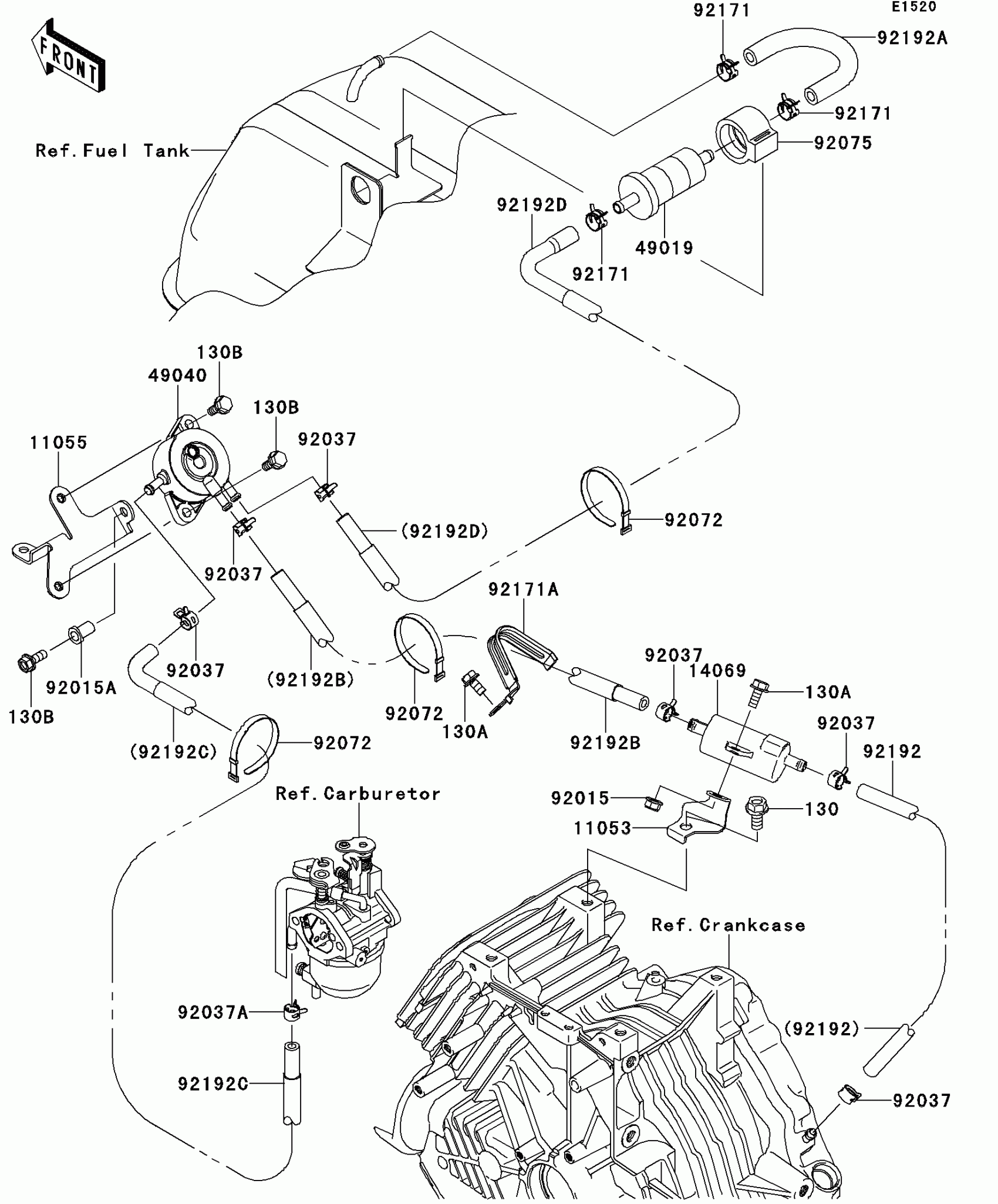

Kawasaki MULE™ 610 4x4 XC Fuel Pump Diagram

Description

Price

11053

BRACKET,BREATHER

11053-1711

$5.12

11055

BRACKET

11055-1668

$7.98

14069

BREATHER

14069-0003

$14.18

49019

FILTER-FUEL

49019-1055

$18.12

49040

PUMP-FUEL

49040-7001

$31.70

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.04

92015A

NUT,POP,6MM

92015-1759

$4.42

92037

CLAMP,TUBE

92037-1505

$3.63

92037A

CLAMP

92037-2113

$0.97

92072

BAND,L=186

92072-056

$3.81

92075

DAMPER,FUEL FILTER

92075-1853

$9.39

92171

CLAMP

92171-0515

$5.56

92171A

CLAMP

92171-0842

$8.80

92192

TUBE,5.8X10.8X270

92192-0204

$5.64

92192A

TUBE,7.5X12.5X200

92192-0243

$17.53

92192B

TUBE,5.8X10.8X370

92192-0825

$19.24

92192C

TUBE,CARB.-PUMP FUEL

92192-0826

$59.18

92192D

TUBE

92192-0827

$43.56

130

BOLT-FLANGED,8X16

130AA0816

$0.71

130A

BOLT-FLANGED,6X14

130BA0614

$0.97

130B

BOLT-FLANGED,6X16

130BB0616

$1.49
