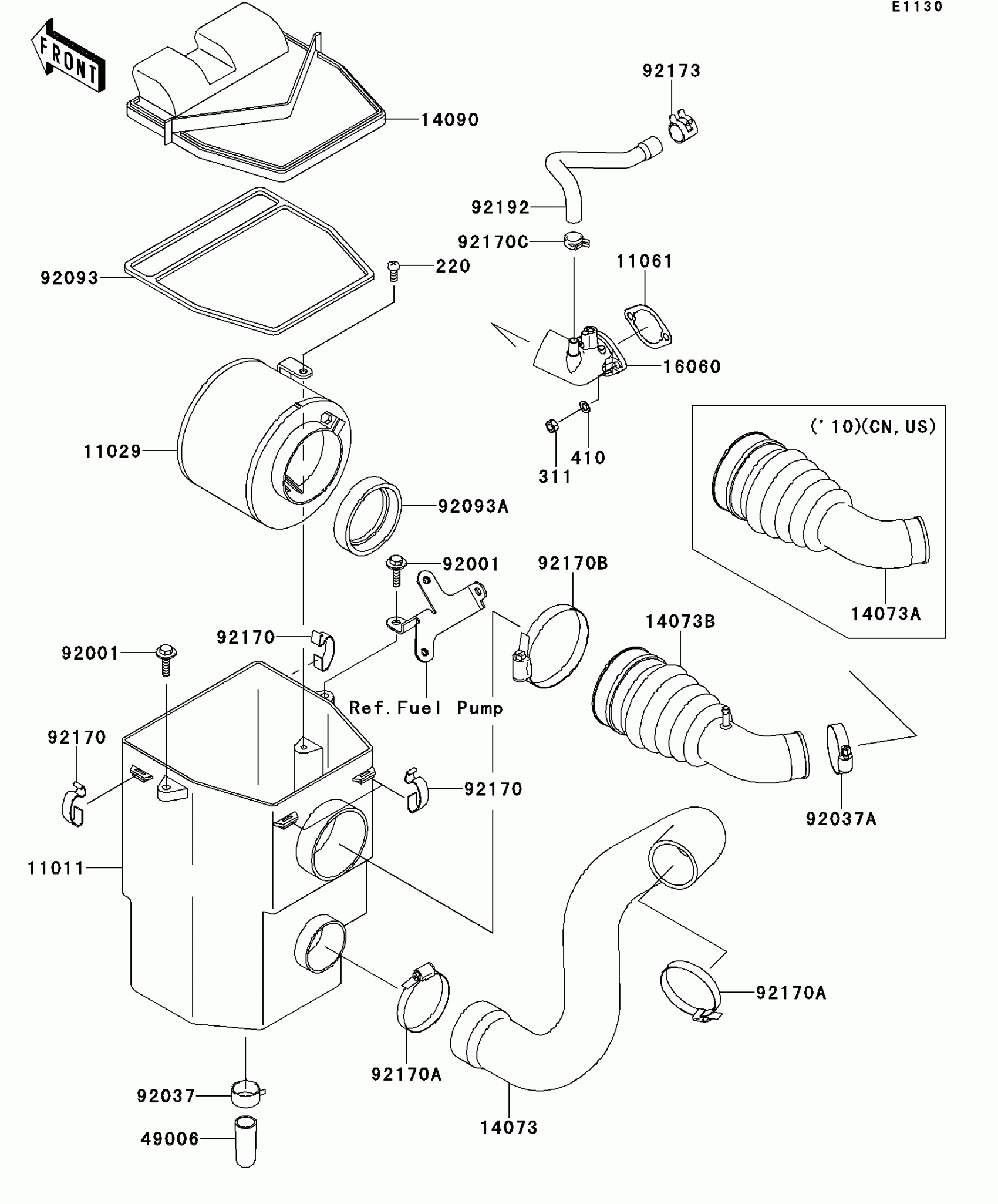

Kawasaki MULE™ 610 4x4 XC Air Cleaner Diagram

Description

Price

11011

CASE-AIR FILTER

11011-1367

$90.35

11029

ELEMENT-ASSY-AIR FILTER

11029-1004

$38.26

11061

GASKET,CHOKE

11061-7026

$1.02

14073

DUCT,FRAME-AIR FILTER

14073-0072

$41.55

14073B

DUCT,AIR FILTER-IN.PIPE

14073-0193

$30.57

14090

COVER,AIR FILTER

14090-1106

$27.07

16060

PIPE-INTAKE

16060-2224

$136.63

49006

BOOT

49006-1351

$5.98

92001

BOLT,6X25,W/WASHER

92001-1140

$4.42

92037

CLAMP,HOSE CLIP

92037-1460

$8.57

92037A

CLAMP

92037-506

$4.58

92093

SEAL,AIR FILTER

92093-1241

$10.27

92093A

SEAL,DUST

92093-1322

$7.79

92170

CLAMP,AIR FILTER

92170-1211

$5.84

92170A

CLAMP

92170-1674

$9.32

92170B

CLAMP

92170-1679

$5.95

92170C

CLAMP

92170-7003

$1.07

92173

CLAMP

92173-7003

$1.76

92192

TUBE,BREATHER

92192-2207

$4.64

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.32

311

NUT-HEX,6MM

311AA0600

$0.93

410

WASHER-PLAIN-SMALL

410AA0600

$1.19
