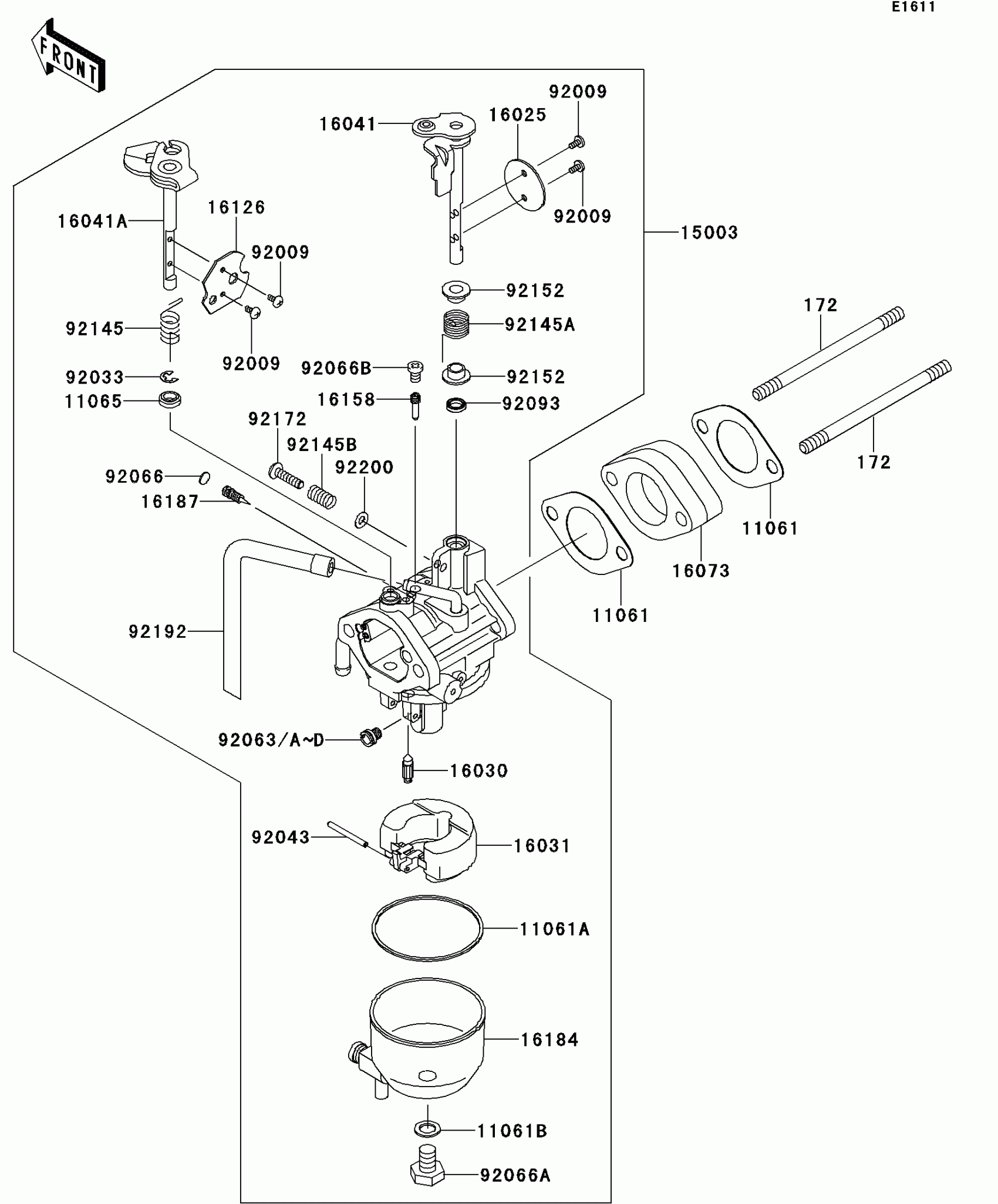

Find the part on the Carburetor diagram for your 2014 Kawasaki Mule™ 610 4x4 XC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki Mule™ 610 4x4 XC Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,HEAD-CARB

11061-7027

1
Out of stock

11061A

GASKET,FLOAT CHAMBER

11061-7044

1
Out of stock

11061B

GASKET,CHAMBER

11061-7045

1
Out of stock

11065

CAP

11065-7012

1
Out of stock

15003

CARBURETOR-ASSY

15003-2943

1
Out of stock

16025

VALVE-THROTTLE

16025-7008

1
Out of stock

16030

VALVE-FLOAT

16030-7004

1
Out of stock

16031

FLOAT

16031-7004

1
Out of stock

16041

SHAFT-CARBURETOR

16041-2261

1
Out of stock

16041A

SHAFT-CARBURETOR

16041-2262

1
Out of stock

16073

INSULATOR

16073-2229

1
Out of stock

16126

VALVE

16126-2242

1
Out of stock

16158

JET-SLOW,#54

16158-2051

1
Out of stock

16184

CHAMBER-ASSY-FLOAT

16184-7018

1
Out of stock

16187

NEEDLE-JET

16187-7002

1
Out of stock

92009

SCREW

92009-2049

1
Out of stock

92033

RING-SNAP

92033-7007

1
Out of stock

92043

PIN,FLOAT

92043-7016

1
Out of stock

92063

JET-MAIN,#99

92063-2458

1
Out of stock

92063A

JET-MAIN,#105

92063-7013

1
Out of stock

92063B

JET-MAIN,#102

92063-7014

1
Out of stock

92063C

JET-MAIN,#109

92063-7044

1
Out of stock

92063D

JET-MAIN,#112

92063-7045

1
Out of stock

92066

PLUG,EXPANSION

92066-7009

1
Out of stock

92066A

PLUG

92066-7020

1
Out of stock

92066B

PLUG

92066-7021

1
Out of stock

92093

SEAL,D=5.9

92093-7001

1
Out of stock

92145

SPRING

92145-2151

1
Out of stock

92145A

SPRING

92145-2152

1
Out of stock

92145B

SPRING

92145-7039

1
Out of stock

92152

COLLAR

92152-7008

1
Out of stock

92172

SCREW

92172-7007

1
Out of stock

92192

TUBE

92192-2085

1
Out of stock

92200

WASHER

92200-7025

1
Out of stock

172

BOLT-STUD,6X95

172BA0695

1
Out of stock
