2007 Kawasaki Mule 610 4x4 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2007 Kawasaki Mule 610 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

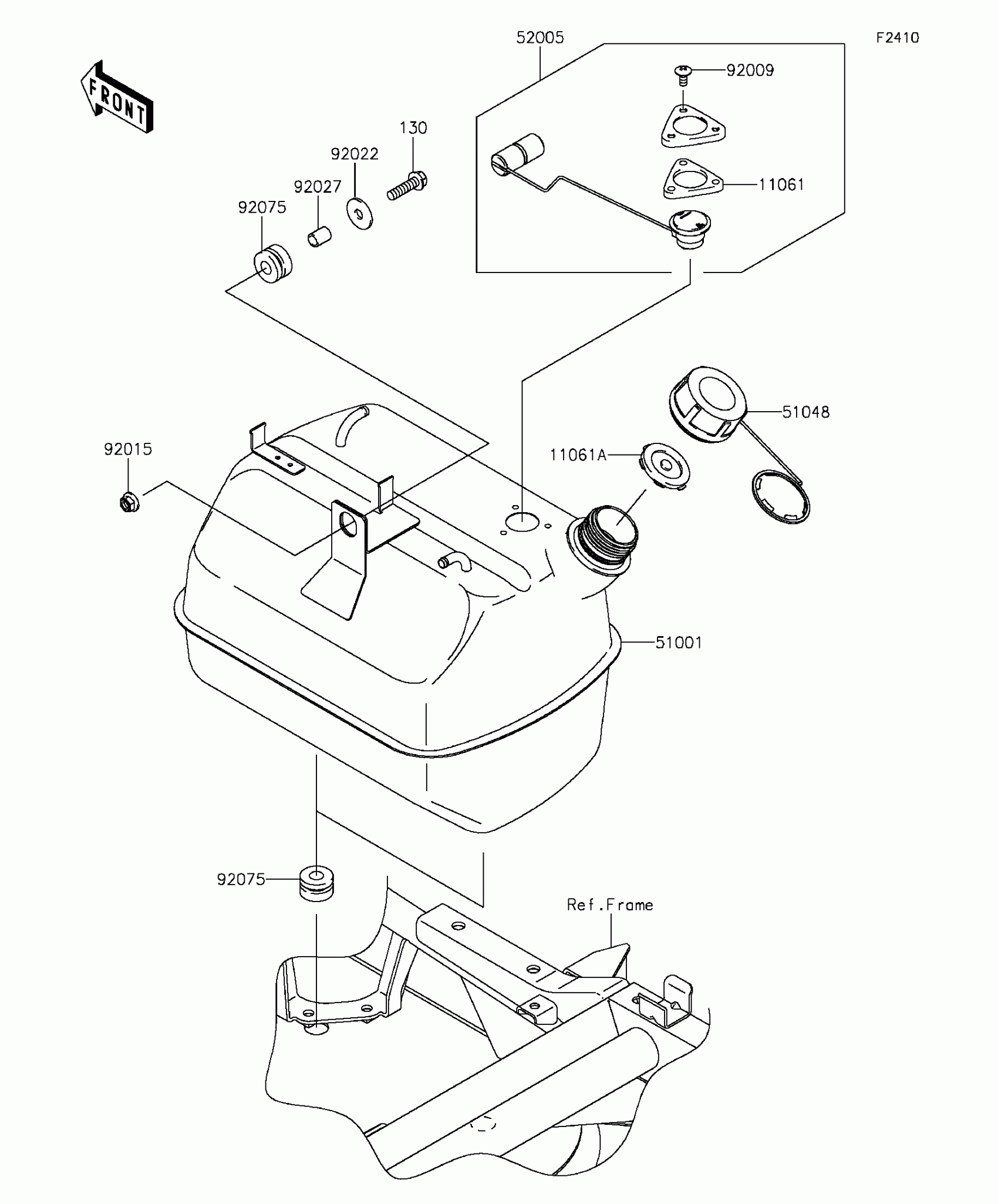

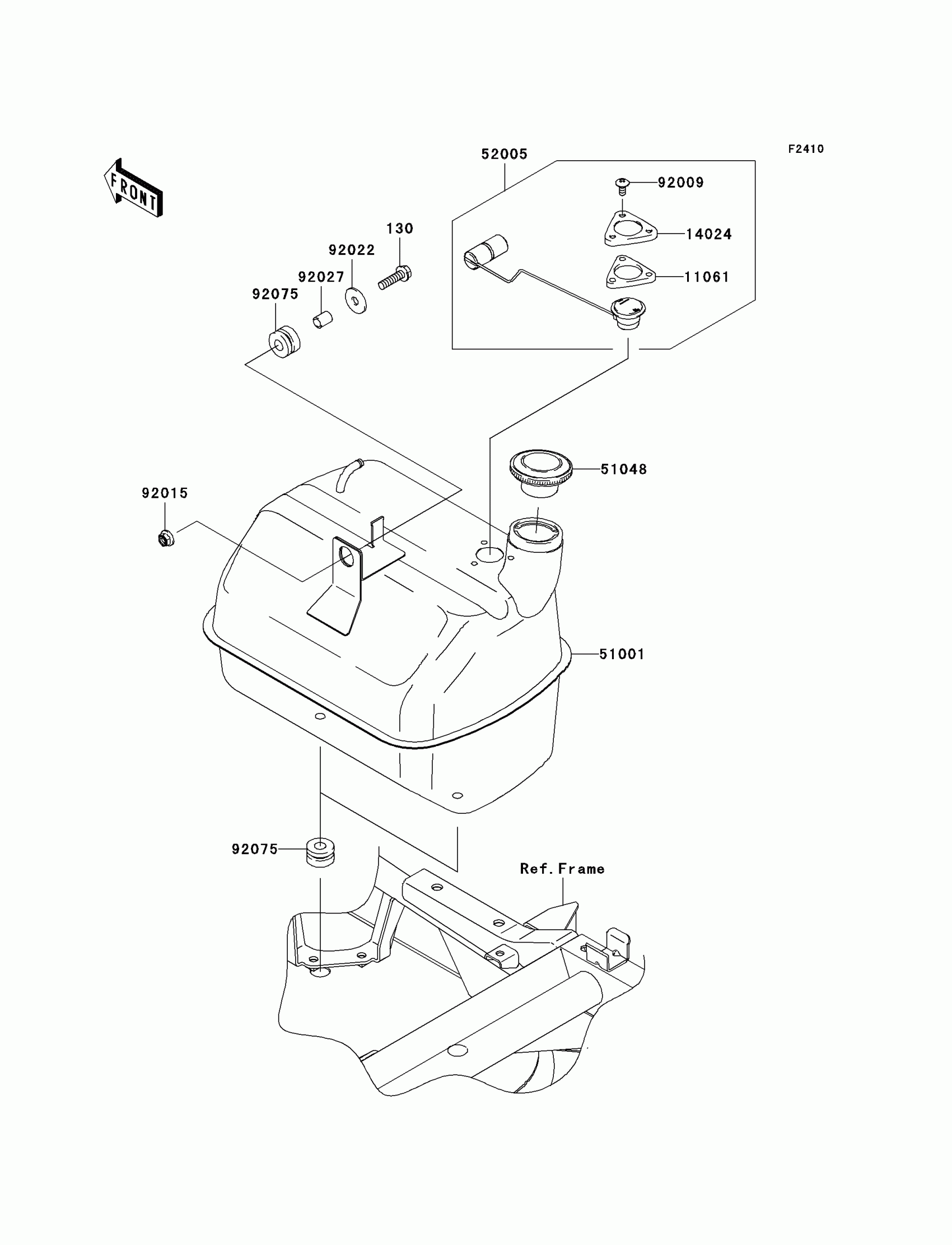

2007 Kawasaki Mule 610 4x4 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X30

130D0830

1
Out of stock

11061

GASKET,FUEL GAUGE

11061-0120

1
Out of stock

14024

COVER,FUEL GAUGE

14024-1697

1
Out of stock

51001

TANK-COMP-FUEL

51001-0073

1
Out of stock

51048

CAP-ASSY-TANK,FUEL

51048-0005

1
Out of stock

52005

GAUGE,FUEL

52005-0012

1
Out of stock

92009

SCREW,6X14

92009-1541

1
Out of stock

92015

NUT,LOCK,FLANGED,8MM

92015-1397

1
Out of stock

92022

WASHER,9X28X2.3

92022-1632

1
Out of stock

92027

COLLAR

92027-1081

1
Out of stock

92075

DAMPER

92075-1736

1
Out of stock
