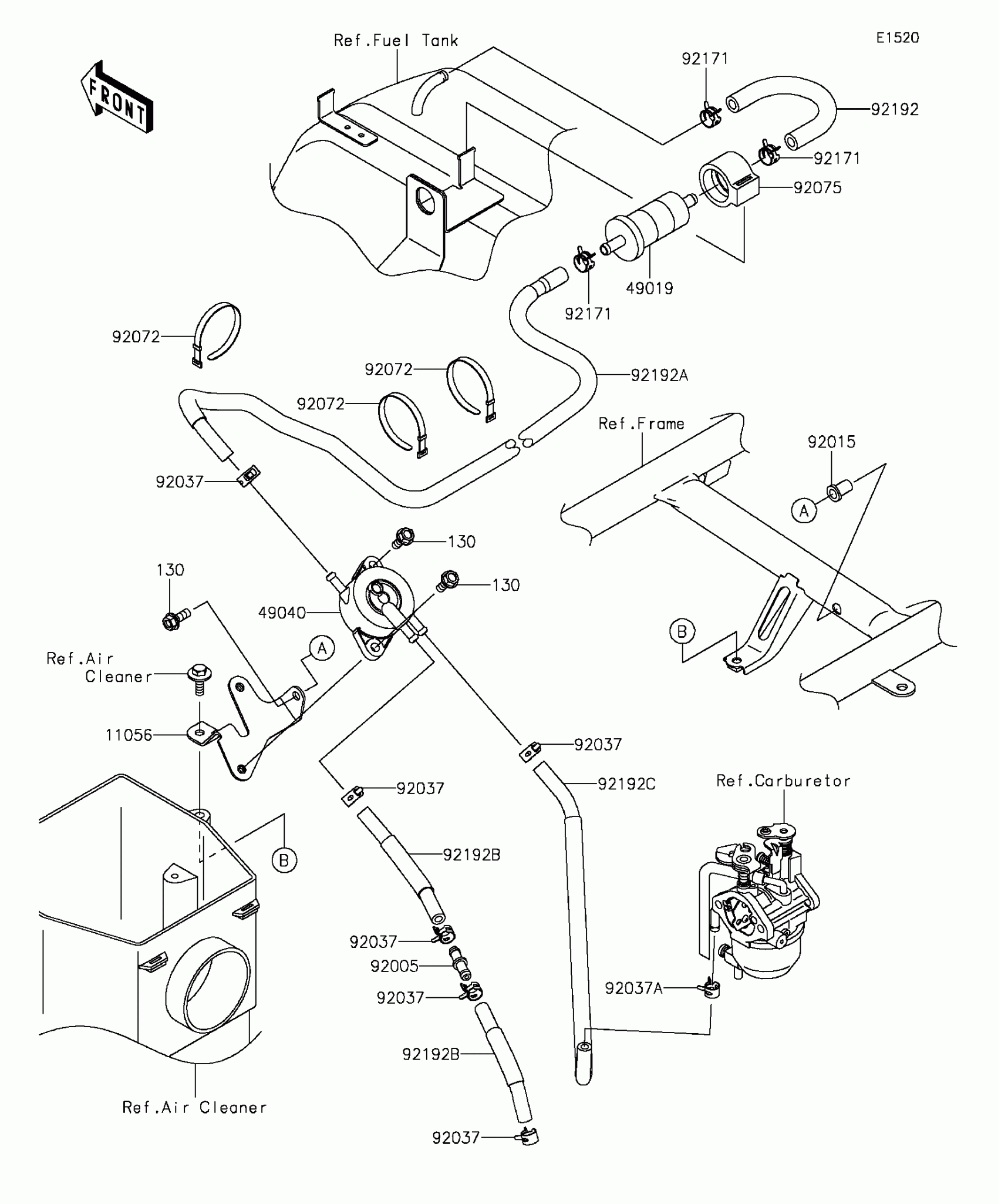

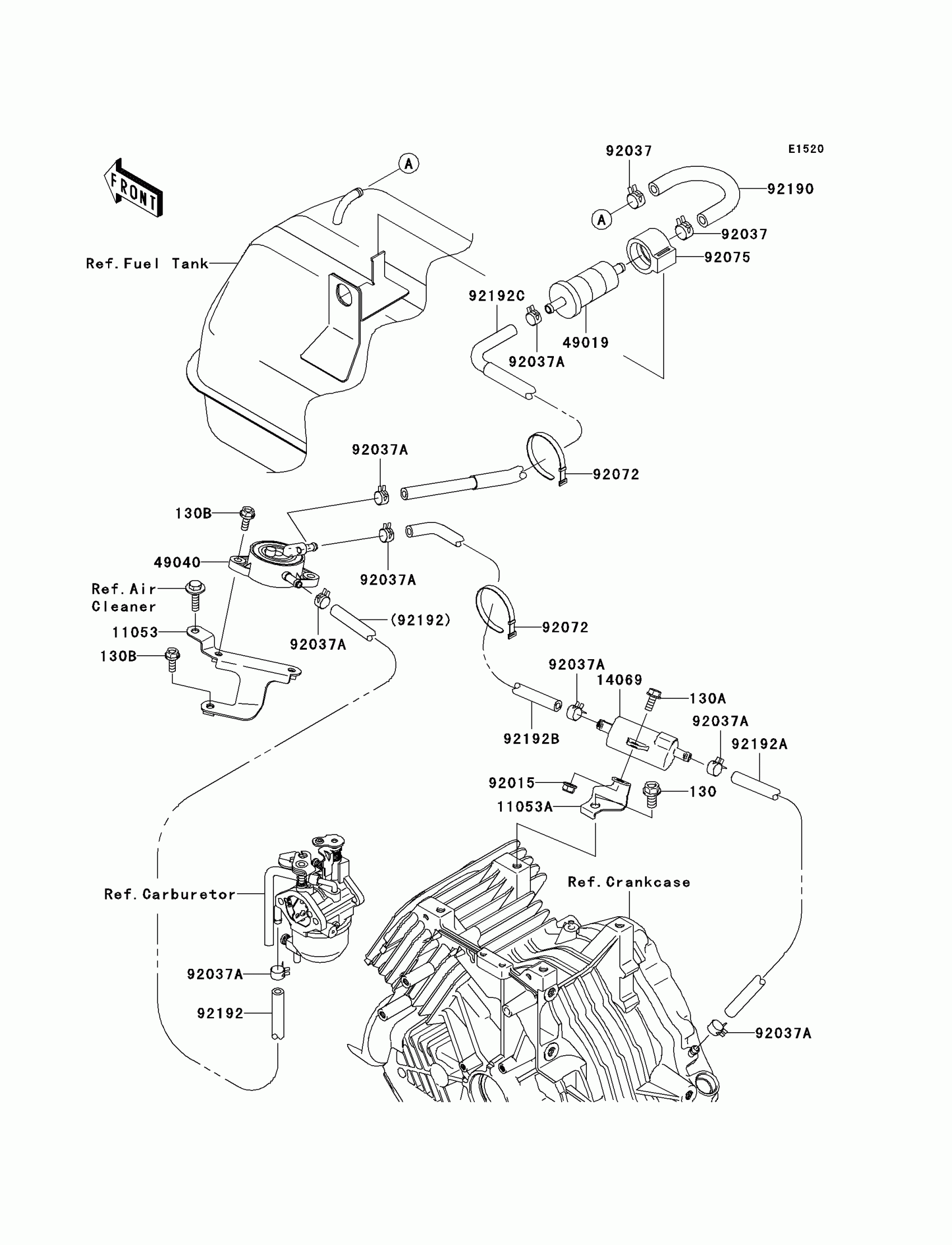

Kawasaki Mule 610 4x4 Fuel Pump Diagram

Description

Price

130

BOLT-FLANGED,8X16

130B0816

Unavailable

130A

BOLT,FLANGED,6X14

130G0614

Unavailable

130B

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

11053

BRACKET,FUEL PUMP

11053-1644

$11.76

11053A

BRACKET,BREATHER

11053-1711

$5.12

14069

BREATHER

14069-0003

$14.18

49019

FILTER-FUEL

49019-1055

$18.12

49040

PUMP-FUEL

49040-7001

$31.70

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.04

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92037A

CLAMP,TUBE

92037-1505

$3.63

92072

BAND,L=186

92072-056

$3.81

92075

DAMPER,FUEL FILTER

92075-1853

$9.39

92190

TUBE,7.5X3.5X200

92190-1104

$38.64

92192

TUBE,5.8X10.8X350

92192-0201

$8.85

92192A

TUBE,5.8X10.8X270

92192-0204

$5.64

92192B

TUBE,PUMP-BREATHER

92192-0221

Unavailable

92192C

TUBE,5.8X10.8X515,GUARD

92192-0222

$11.27
