2007 Kawasaki Mule 610 4x4 Converter Cover Diagram

← All diagrams

Find the part on the Converter Cover diagram for your 2007 Kawasaki Mule 610 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

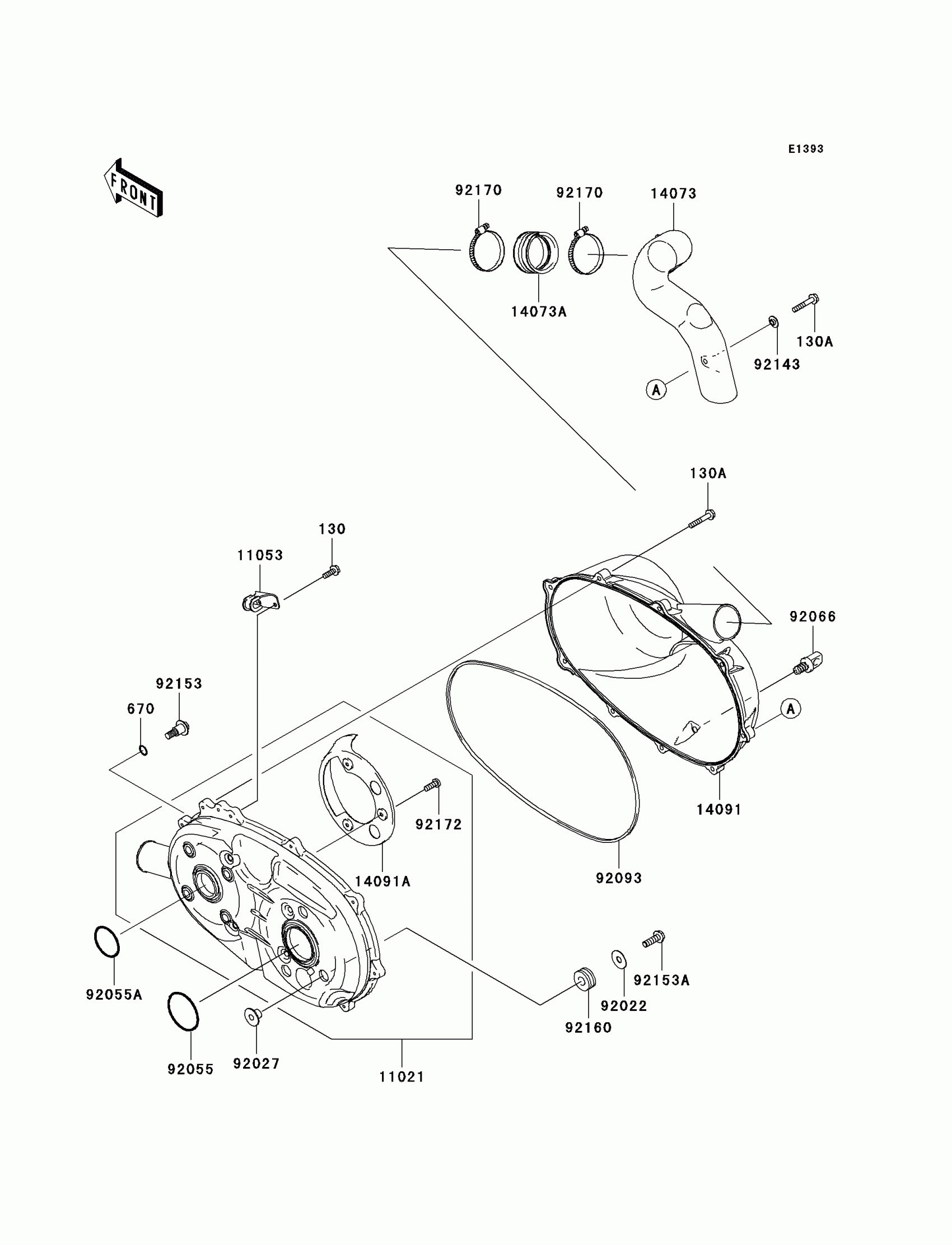

2007 Kawasaki Mule 610 4x4 Converter Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X18

130J0618

1
Out of stock

130A

BOLT-FLANGED,6X35

130J0635

1
Out of stock

670

O RING,12MM

670D2012

1

$2.19

In stock

11021

1

$135.11

In stock

11053

BRACKET

11053-1483

1

$7.69

In stock

14073

DUCT,EXHAUST

14073-0071

1
Out of stock

14073A

DUCT,JOINT

14073-1775

1

$3.46

In stock

14091

COVER,BELT CONVERTER

14091-0192

1
Out of stock

14091A

COVER

14091-0391

1

$23.71

In stock

92022

WASHER SEAL PLATE

92022-101

1

$3.85

In stock

92027

COLLAR

92027-4015

1

$8.44

In stock

92055

RING-O,64X4

92055-0048

1
Out of stock

92055A

RING-O,50X4

92055-1501

1

$4.14

In stock

92066

PLUG,DRAIN,11X19

92066-1580

1

$4.97

In stock

92093

SEAL

92093-0018

1
Out of stock

92143

COLLAR

92143-1087

1

$3.11

In stock

92153

BOLT,8X26.5

92153-0594

1
Out of stock

92153A

BOLT,FLANGED,8X25

92153-0953

1
Out of stock

92160

DAMPER

92160-1012

1

$4.37

In stock

92170

CLAMP

92170-1764

1

$9.09

In stock

92172

SCREW,5X14

92172-0166

1

$1.81

In stock
