2007 Kawasaki Mule 600 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2007 Kawasaki Mule 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

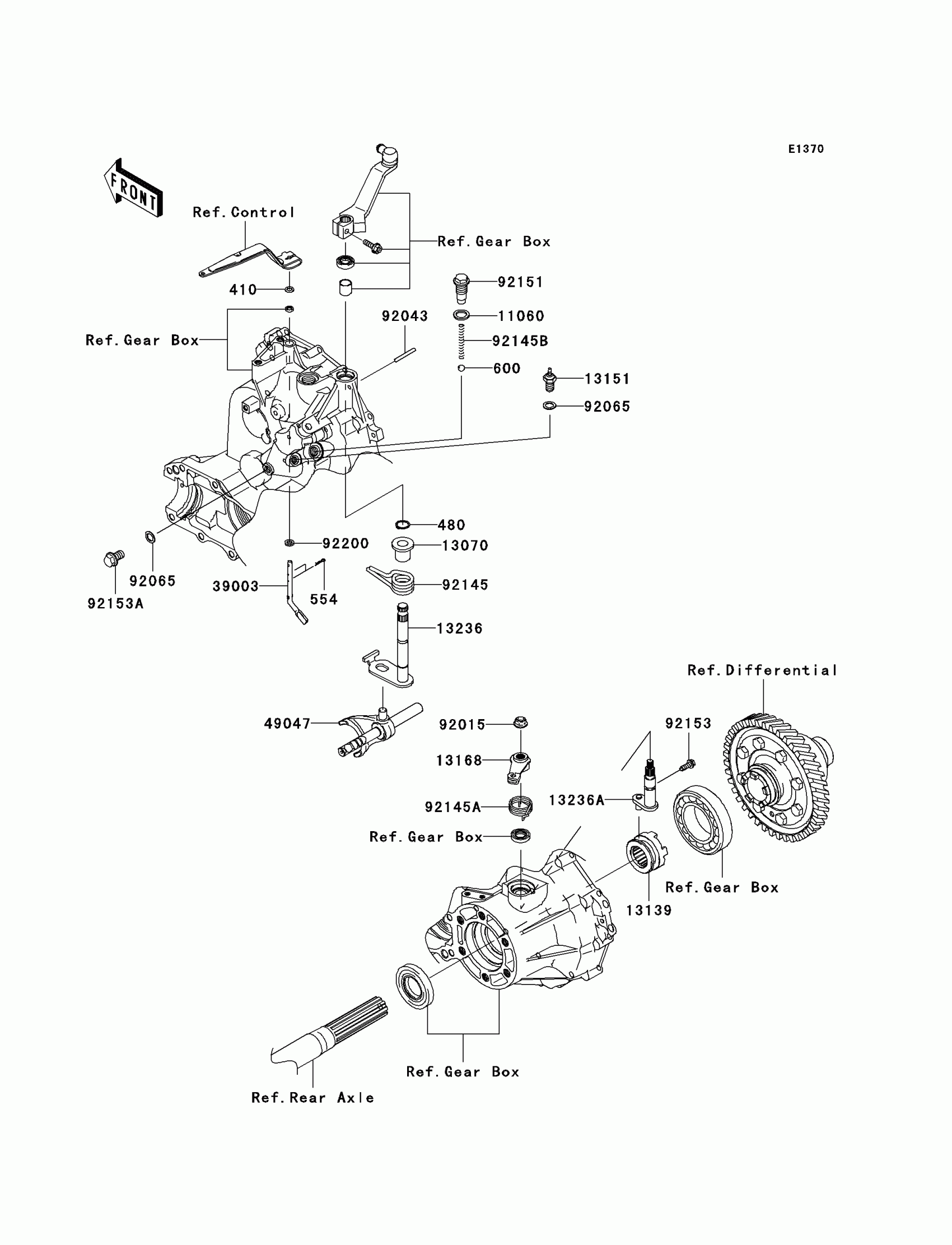

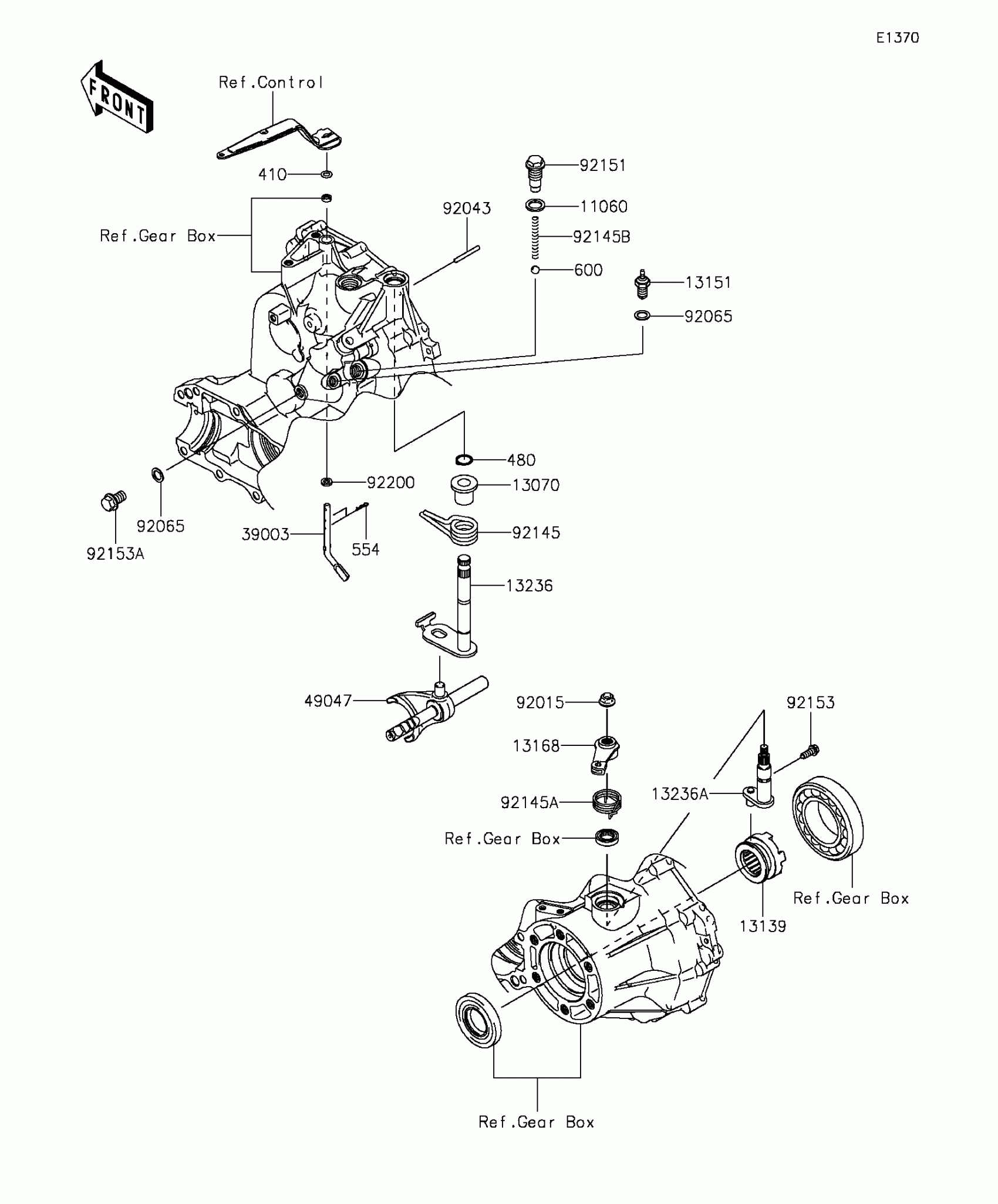

2007 Kawasaki Mule 600 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

1

$1.19

In stock

480

1

$3.12

In stock

554

PIN,SNAP

554A0600

1
Out of stock

600

BALL-STEEL,5/16

600A1000

1

$0.76

In stock

11060

GASKET,14X20X2

11060-1287

1

$2.73

In stock

13070

GUIDE

13070-0030

1

$7.63

In stock

13139

SHIFTER,DIFF LOCK

13139-0008

1

$110.69

In stock

13151

SWITCH-COMP,NEUTRAL

13151-1080

1

$8.20

In stock

13168

LEVER,DIFF LOCK

13168-1523

1

$21.32

In stock

13236

LEVER-COMP,FR/RR

13236-0036

1

$46.27

In stock

13236A

1

$25.49

In stock

39003

ARM-PIVOT,GOVERNOR

39003-1053

1

$24.31

In stock

49047

ROD-SHIFT,FR/RR

49047-0013

1

$110.53

In stock

92015

NUT,FLANGED,8MM

92015-1406

1

$3.53

In stock

92043

PIN,4X34.8

92043-1579

1

$2.03

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

92145

SPRING

92145-0146

1

$7.63

In stock

92145A

SPRING

92145-0226

1

$4.07

In stock

92145B

1

$1.98

In stock

92151

1

$13.97

In stock

92153

BOLT,6X16.6

92153-0591

1
Out of stock

92153A

BOLT,10X16

92153-0621

1
Out of stock

92200

WASHER,6.5X11.5X2.0

92200-2029

1
Out of stock
