2007 Kawasaki Mule 600 Driven Converter/drive Belt Diagram

← All diagrams

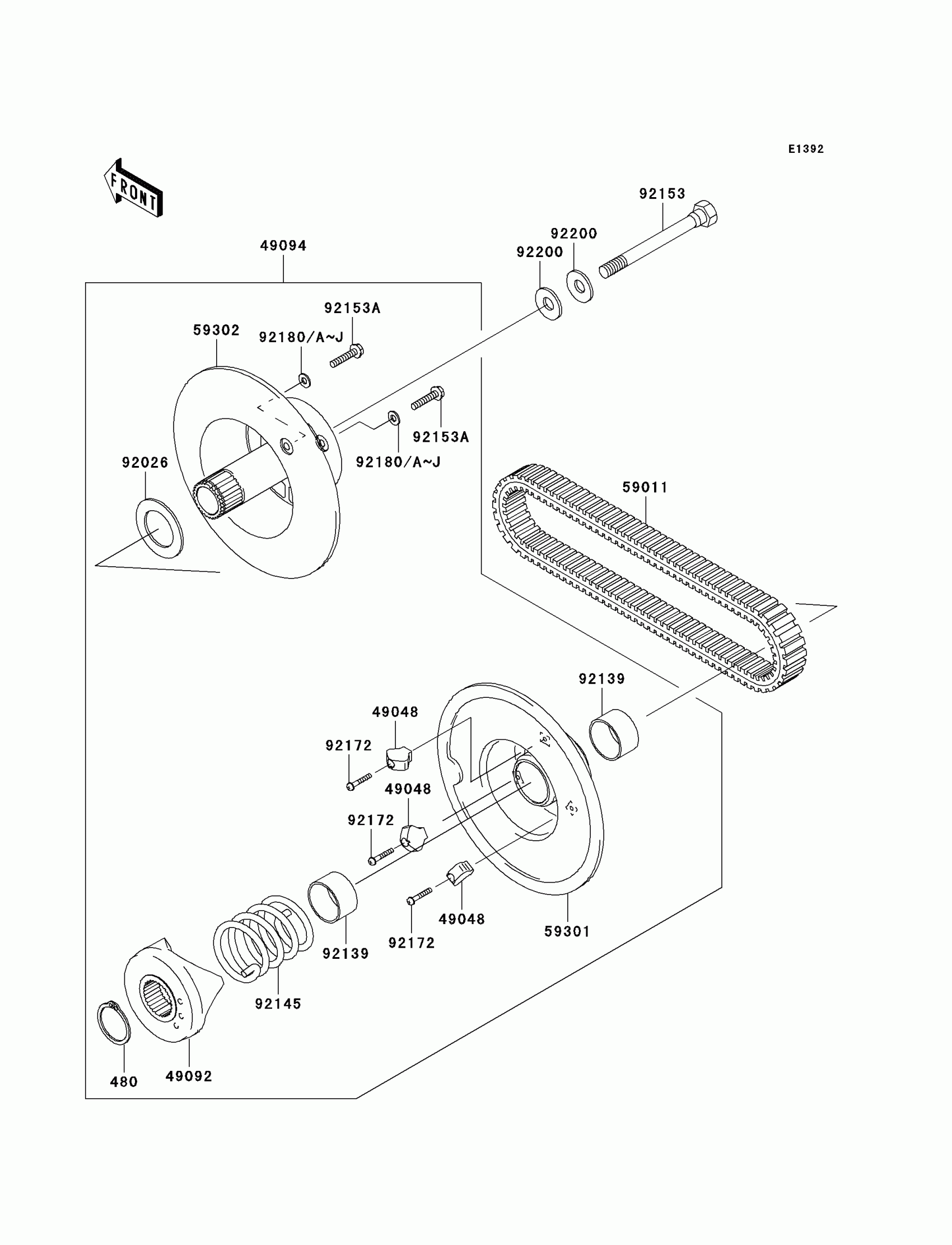

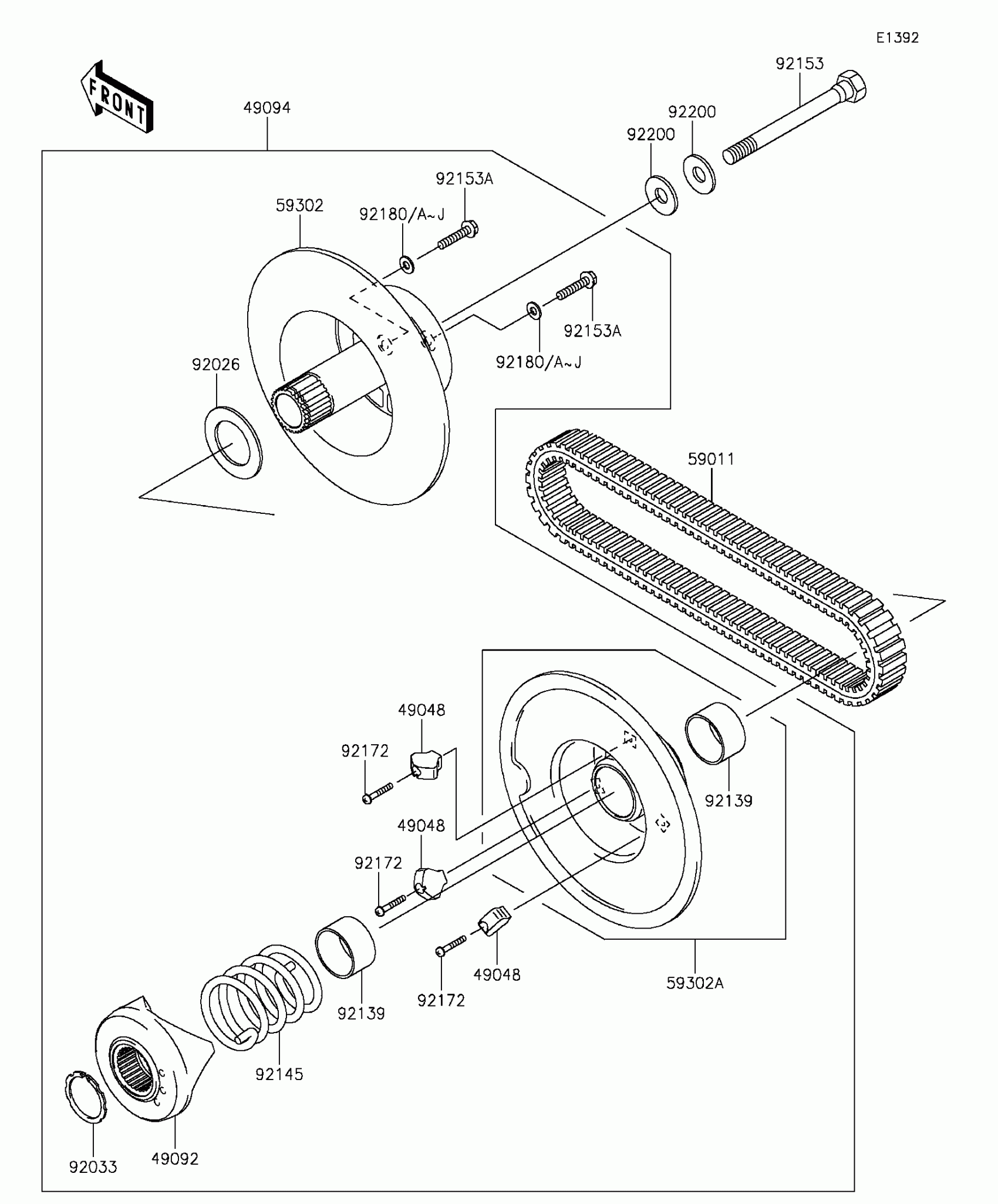

Find the part on the Driven Converter/drive Belt diagram for your 2007 Kawasaki Mule 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 600 Driven Converter/drive Belt Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

CIRCLIP, 38MM

480J3800

1
Out of stock

49048

SHOE

49048-0001

1
Out of stock

49092

RAMP

49092-0002

1
Out of stock

49094

CONVERTER-ASSY-DRIVEN

49094-0011

1
Out of stock

59011

BELT

59011-0011

1
Out of stock

59301

SHEAVE-MOVABLE

59301-0002

1
Out of stock

59302

SHEAVE-COMP,FIXED

59302-0008

1
Out of stock

92026

SPACER,38X60X2.5

92026-0046

1
Out of stock

92139

BUSHING

92139-0054

1
Out of stock

92145

SPRING

92145-0272

1
Out of stock

92153

BOLT,12X121

92153-0593

1
Out of stock

92153A

BOLT,6X28

92153-0833

1
Out of stock

92172

SCREW,4X25

92172-0060

1
Out of stock

92180

SHIM,T=0.8

92180-0150

—
Out of stock

92180A

SHIM,T=1.0

92180-0151

—
Out of stock

92180B

SHIM,T=1.2

92180-0152

—
Out of stock

92180C

SHIM,T=1.4

92180-0153

1
Out of stock

92180D

SHIM,T=1.6

92180-0154

—
Out of stock

92180E

SHIM,T=1.8

92180-0155

—
Out of stock

92180F

SHIM,T=2.0

92180-0156

—
Out of stock

92180G

SHIM,T=2.3

92180-0157

—
Out of stock

92180H

SHIM,T=2.5

92180-0158

—
Out of stock

92180I

SHIM,T=2.8

92180-0159

—
Out of stock

92180J

SHIM,T=3.2

92180-0160

—
Out of stock

92200

WASHER

92200-0249

1
Out of stock
